FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12180iNZE121,ZZE122200105-200211

sub58151-12210

main58151-12190iZZE124200108-200304

main58151-12210iNZE121,ZZE122200301-200307

main58151-12220iNZE121,ZZE122200307-200503

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12160iZZE124200108-200304

main58153-20141iNZE121,ZZE122200105-200304

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-13050iNZE121,ZZE122200105-200304

main58327-13080iZZE124200108-200304

9017906219

main90179-06219

9054107036

main90541-07036

91631B0618

main91631-B0618

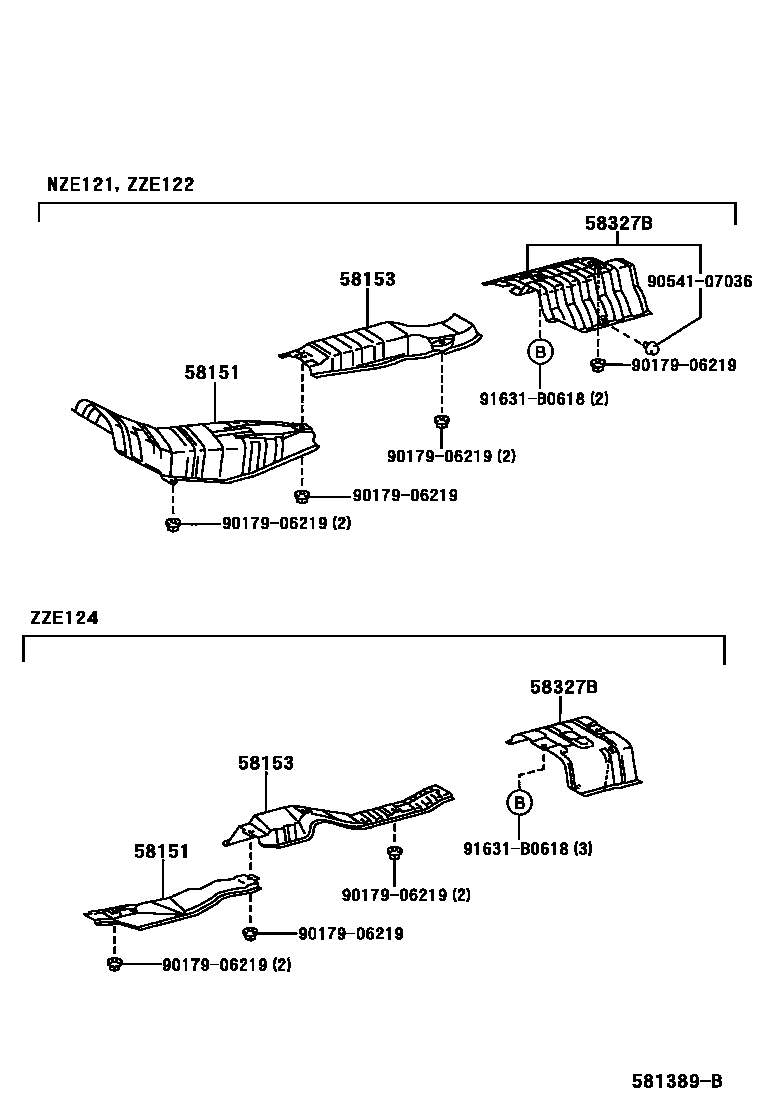

6 parts on this diagram · 1 diagram in section
