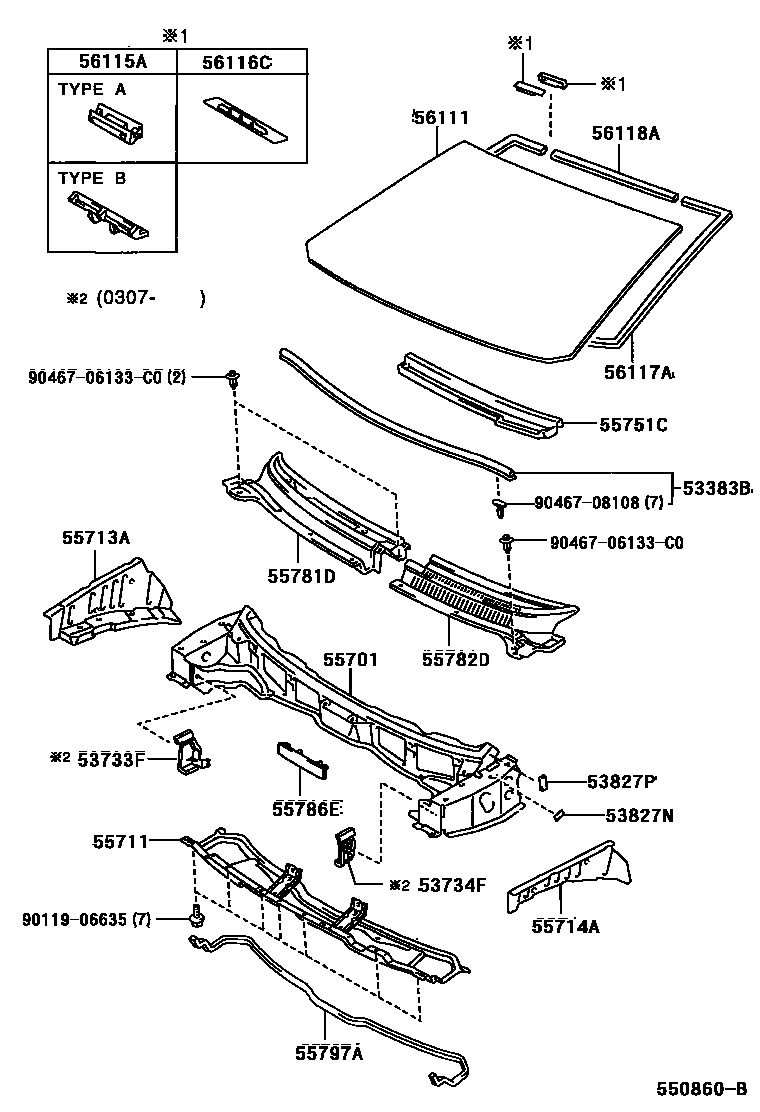

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-13020iNZE121,ZZE12#200304

53733FSHUTTER, HOT AIR SIDE, A RH

main53733-13020iNZE121,ZZE12#200307

53734FSHUTTER, HOT AIR SIDE, A LH

main53734-13020iNZE121,ZZE12#200307

53827NPROTECTOR, FRONT FENDER SIDE PANEL, NO.1

main53878-28050×2iNZE121,ZZE12#200105-200304

53827PPROTECTOR, FRONT FENDER SIDE PANEL, NO.2

main53878-28070×2iNZE121,ZZE12#200105-200304

55701PANEL SUB-ASSY, COWL

main55700-13020iNZE121,ZZE12#200105-200304

55711PANEL, COWL TOP, OUTER

main55701-13020iNZE121,ZZE12#200105-200304

55713APANEL, COWL TOP SIDE, RH

main55713-13020iNZE121,ZZE12#200105-200304

55714APANEL, COWL TOP SIDE, LH

main55714-13020iNZE121,ZZE12#200105-200304

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-13010iNZE121,ZZE12#200105-200304

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-13030iNZE121,ZZE12#200105-200304

main55708-13031iNZE121,ZZE12#200307

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-13010iNZE121,ZZE12#200304-200307

main55709-13011iNZE121,ZZE12#200307

main55709-13020iNZE121,ZZE12#200105-200304

main55709-13021iNZE121,ZZE12#200307

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-13020iNZE121,ZZE12#200105-200304

55797ASEAL, COWL WATER EXTRACT

main55797-13010iNZE121,ZZE12#200105-200304

main55797-13020iNZE121,ZZE12#200307

56111GLASS, WINDSHIELD

main56101-13030iNZE121,ZZE12#200304

main56111-13020iNZE121,ZZE12#..X200304

main56111-13030iNZE121,ZZE12#..SAER,X200105-200304

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iNZE121,ZZE12#200304

main56115-30100×2iNZE121,ZZE12#200304

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNZE121,ZZE12#200105-200304

56117ADAM, WINDOW GLASS ADHESIVE

main56117-13030iNZE121,ZZE12#200105-200304

sub56117-47010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-13020iNZE121,ZZE12#200105-200304

sub56117-52040

9011906635

main90119-06635

9046706133C0

main90467-06133C0

9046708108

main90467-08108

22 parts on this diagram · 1 diagram in section
