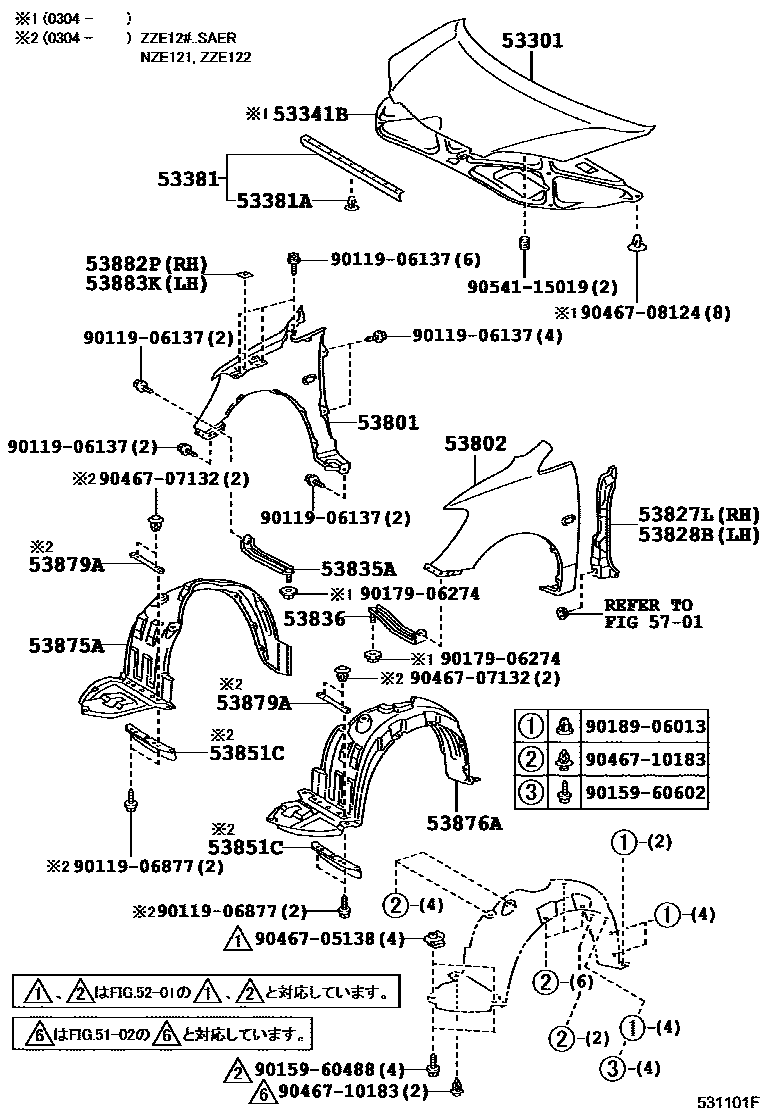

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-13050iNZE121,ZZE12#200304-200706

53341BINSULATOR, HOOD

main53341-13010iZZE12#200304

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-13020iNZE121,ZZE12#200105-200304

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iNZE121,ZZE12#200105-200304

53801FENDER SUB-ASSY, FRONT RH

main53811-13100iNZE121,ZZE12#200105-200304

main53811-13110iNZE121,ZZE12#200304-200706

53802FENDER SUB-ASSY, FRONT LH

main53812-13090iNZE121,ZZE12#200105-200304

main53812-13100iNZE121,ZZE12#200304-200706

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-13050iNZE121,ZZE12#200304

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-13030iNZE121,ZZE12#200105-200304

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-13030iNZE121,ZZE12#200105-200304

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-13030iNZE121,ZZE12#200105-200304

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-13020×2iZZE124..SAER;NZE121,ZZE122200304

53875ALINER, FRONT FENDER, RH

main53875-13020iNZE121,ZZE12#200105-200304

53876ALINER, FRONT FENDER, LH

main53876-13020iNZE121,ZZE12#200105-200304

53879ARETAINER, FRONT FENDER LINER

main53879-13010×2iZZE124..SAER;NZE121,ZZE122200304

53882PSEAL, FRONT FENDER, RH

main53882-16030×2iNZE121,ZZE12#200105-200304

53883KSEAL, FRONT FENDER, LH

main53882-16030×2iNZE121,ZZE12#200105-200304

5701

9011906137

main90119-06137

9011906877

main90119-06877

9015960488

main90159-60488

9015960602

main90159-60602

9017906274

main90179-06274

9018906013

main90189-06013

9046705138

main90467-05138

9046707132

main90467-07132

9046708124

main90467-08124

9046710183

main90467-10183

9054115019

main90541-15019

28 parts on this diagram · 1 diagram in section
