REAR BUMPER & BUMPER STAY
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
7601
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
5279112040BOLT, BUMPER MOULDING SET, NO.1
main52791-12040
9011908636
main90119-08636
9015950311
main90159-50311
9015960602
main90159-60602
9018906013
main90189-06013
9018906039
main90189-06039
9018906057
main90189-06057
9043005019
main90430-05019
9046707166
main90467-07166
9415080600
main94150-80600

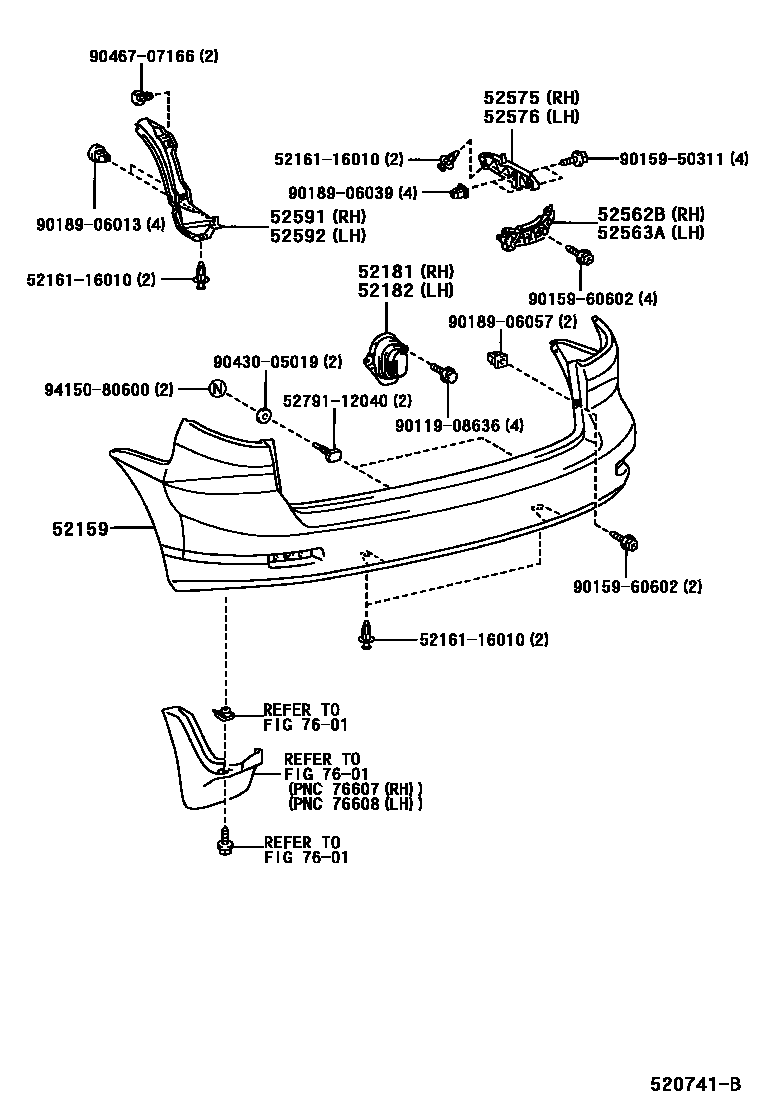

21 parts on this diagram · 2 diagrams in section
