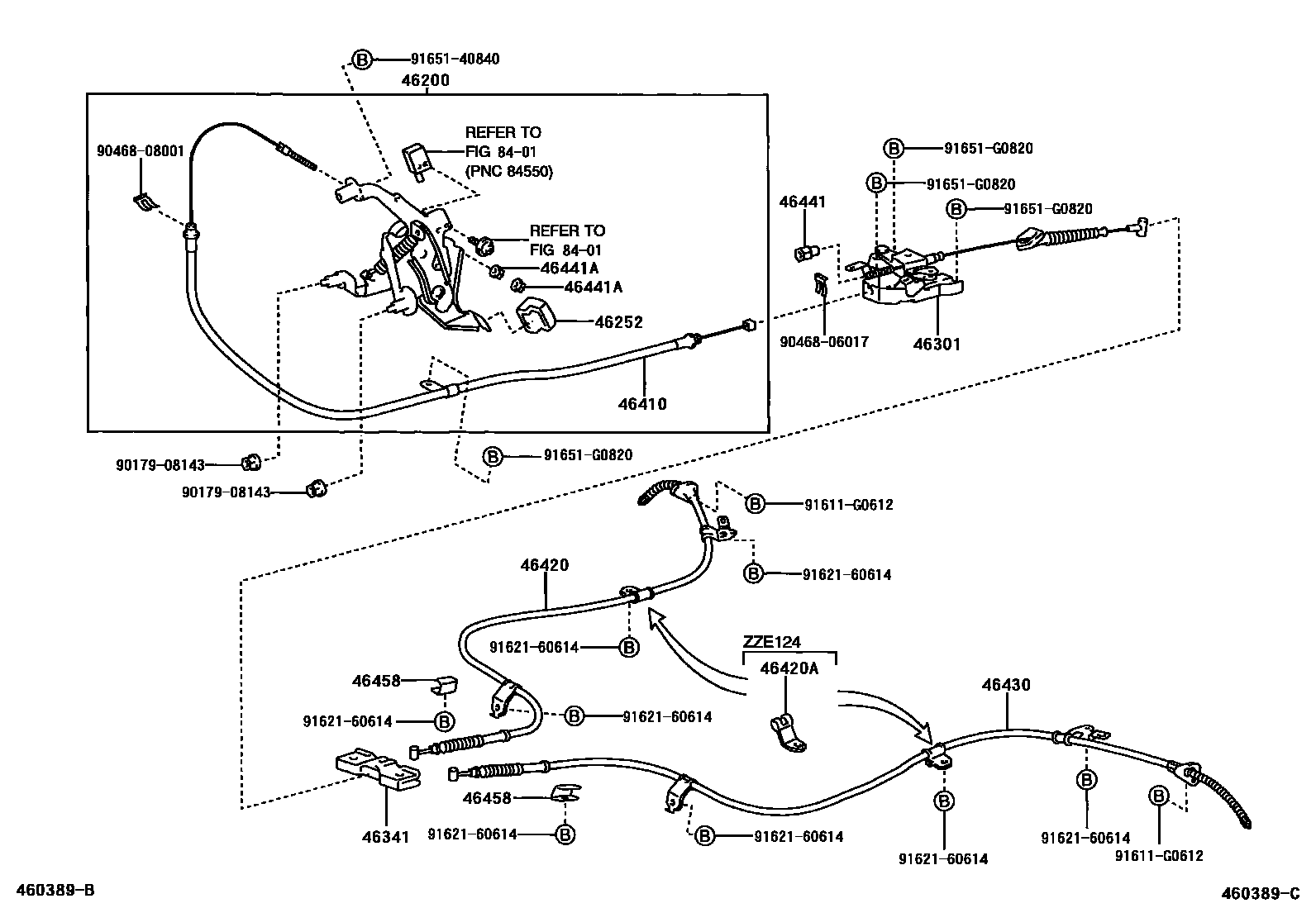

PARKING BRAKE & CABLE

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-13030iNZE121,ZZE12#200304

sub46210-13020

sub90468-08001

46252PAD, PARKING PEDAL

main46252-52010iNZE121,ZZE12#200105-200304

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-13030iNZE121,ZZE12#200105-200304

46341EQUALIZER, PARKING BRAKE

main46341-20070iNZE121,ZZE12#200105-200304

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-13030iNZE121,ZZE12#200105-200304

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12510iNZE121..05S200105-200304

main46420-13080iZZE122;NZE121..07S200105-200304

main46420-13090iZZE124200304

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C31×2iZZE124200108-200304

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12410iNZE121..05S200105-200304

main46430-13080iZZE122;NZE121..07S200105-200304

main46430-13090iZZE124200304

46441NUT, WIRE ADJUSTING, NO.1

main46441-47010iNZE121,ZZE12#200105-200304

main46441-47020iNZE121,ZZE12#200309

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06058×2iNZE121,ZZE12#200105-200304

main90179-06299×2iNZE121,ZZE12#200304

46458RETAINER, CABLE

main46458-28010×2iNZE121,ZZE12#200105-200304

8401

9017908143

main90179-08143

9046806017

main90468-06017

9046808001

main90468-08001

91611G0612

main91611-G0612

9162160614

main91621-60614

9165140840

main91651-40840

91651G0820

main91651-G0820

19 parts on this diagram · 1 diagram in section
