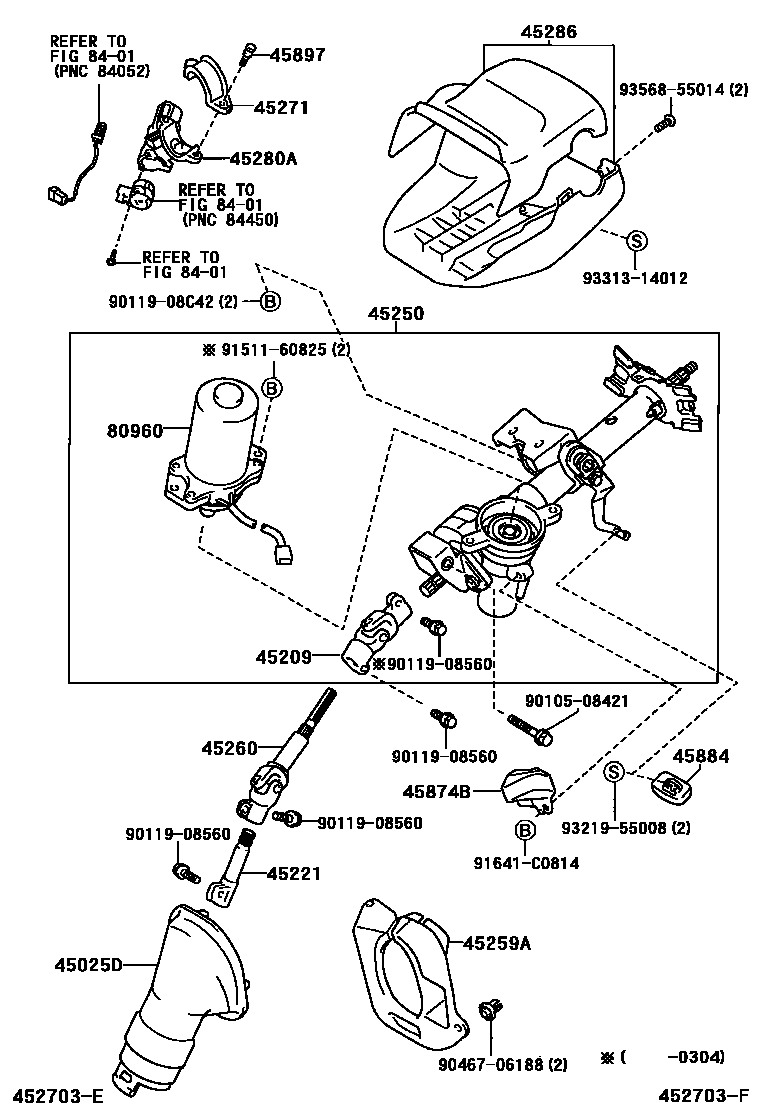

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12220iNZE121200105-200304

main45025-13020iZZE122200105-200304

main45025-13030iZZE124200108-200304

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12150iNZE121,ZZE12#200105-200509

sub45209-12151

main45209-12151iNZE121,ZZE12#200510

45221SHAFT, STEERING INTERMEDIATE

main45221-12280iNZE121200105-200404

sub45221-12281

main45221-12281iNZE121200404

sub45221-47041

main45221-12290iZZE122200105-200304

sub45221-12291

main45221-12291iZZE122200304

45250COLUMN ASSY, STEERING

main45250-13070iZZE12#200105-200304

main45250-13100iNZE121200105-200107

sub45250-13101

main45250-13101iNZE121200107-200110

sub45250-13102

main45250-13102iNZE121200110-200304

main45250-13110iNZE121..X200105-200107

sub45250-13111

main45250-13111iNZE121..X200107-200110

sub45250-13112

main45250-13112iNZE121..X200110-200304

main45250-13140iNZE121200304-200509

sub45250-13141

main45250-13141iNZE121200510

main45250-13150iNZE121200304-200509

sub45250-13151

main45250-13151iNZE121200510

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12010iNZE121,ZZE122200105-200304

main45259-12020iZZE124200108-200304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-13020iZZE122200105-200404

sub45260-13021

main45260-13021iZZE122200404

main45260-13030iZZE124200108-200304

main45260-13050iNZE121200105-200505

sub45260-13051

main45260-13051iNZE121200506

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNZE121,ZZE12#200105-200304

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-13020iNZE121,ZZE12#200105-200509

sub45280-13030

main45280-13030iNZE121200509

45286COVER, STEERING COLUMN

main45286-13901-B1iNZE121,ZZE12#..V,X200105-200304

DK.GRAY,TRIM0#

main45286-13901-B1iNZE121,ZZE12#..V,X200105-200304

DK.GRAY,TRIM1#

main45286-13901-B1iNZE121,ZZE124..07S..X200111-200304

main45286-13901-B1iNZE121,ZZE124..07S..V200204-200304

main45286-13901-B1iNZE121,ZZE12#..X200304

DK.GRAY,TRIM0#,1#

main45286-20953-B0iZZE12#..SAER200304

DK.GRAY,TRIM1#

main45286-20953-B0iZZE12#..SAER200304

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-13030iNZE121200105-200304

sub45874-13070

main45874-13070iNZE121200304

45884BRACKET, TILT LEVER

main45884-13010iNZE121,ZZE12#200105-200304

45897BOLT, STEERING LOCK SET

main45897-12020iNZE121,ZZE12#200105-200304

80960MOTOR ASSY, POWER STEERING

main80960-12010iNZE121200105-200304

main80960-12050iNZE121200304-200706

8401

9010508421

main90105-08421

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9151160825

main91511-60825

91641C0814

main91641-C0814

9321955008

main93219-55008

9331314012

main93313-14012

9356855014

main93568-55014

23 parts on this diagram · 3 diagrams in section
