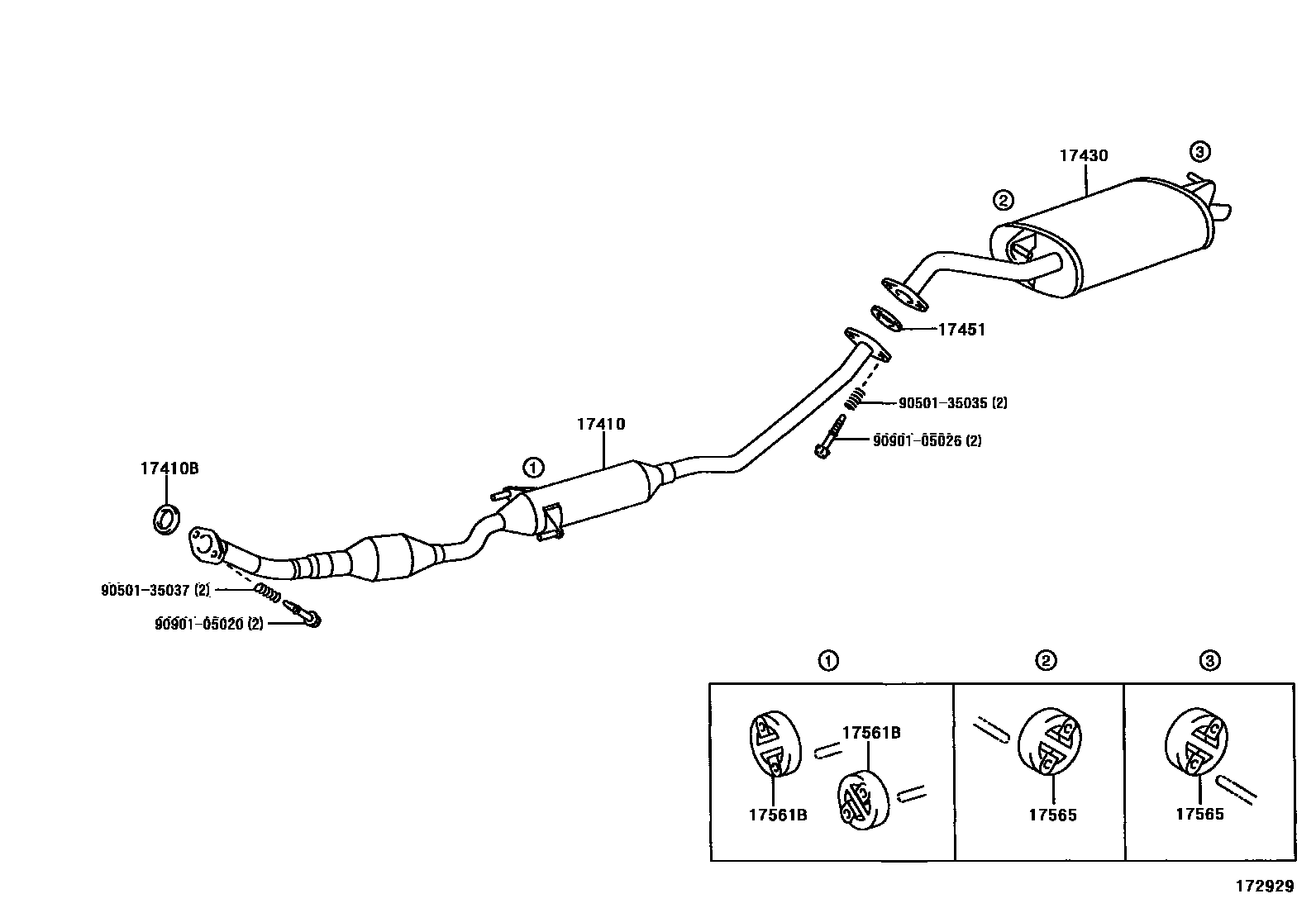

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21220i1NZFE..NZE121200105-200304

sub17410-21223

main17410-21590i1NZFE..NZE121200304

main17410-22210i1ZZFE..ZZE124200108-200304

main17410-22280i1ZZFE..ZZE122200105-200304

main17410-22290i1ZZFE..ZZE124200304

main17410-22430i1ZZFE..ZZE122200304

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,1ZZFE..NZE121,ZZE124200105-200304

main17451-22070i1ZZFE..ZZE122200105-200304

17430PIPE ASSY, EXHAUST, TAIL

main17430-21210i1NZFE..NZE121200105-200304

main17430-21440i1NZFE..NZE121200304

main17430-22260i1ZZFE..ZZE122200105-200304

main17430-22330i1ZZFE..ZZE124200108-200304

main17430-22410i1ZZFE..ZZE122200304-200510

sub17430-22411

main17430-22411i1ZZFE..ZZE122200510

17451GASKET, EXHAUST PIPE

main17451-16030i1ZZFE..ZZE122200105-200706

main17451-21050i1ZZFE..ZZE124200304-200706

main17451-23010i1NZFE..NZE121200105-200304

main17451-64030i1ZZFE..ZZE124200108-200706

sub17451-64031

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-21030i1NZFE,1ZZFE..NZE121,ZZE12#200105-200304

sub17565-22030

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-21040i1NZFE,1ZZFE..NZE121,ZZE122200105-200304

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

10 parts on this diagram · 3 diagrams in section
