EPC Data

CAMSHAFT & VALVE

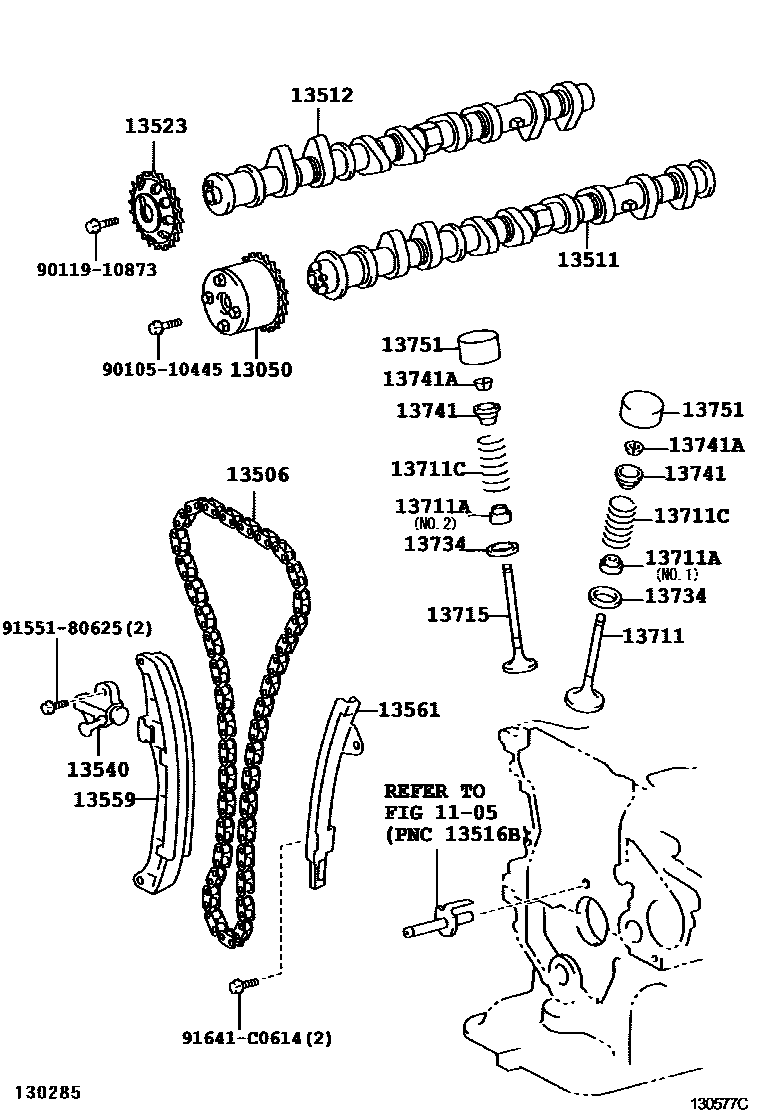

Parts diagram
1105
13050GEAR ASSY, CAMSHAFT TIMING
main13050-21040i200105-200304
main13050-21041i200602
main13050-22011i200304-200512
main13050-22012i200512-200706
sub13050-0D010
13506CHAIN SUB-ASSY
main13506-21020i200304
sub13506-21050
sub13506-40010
main13506-22030i200304
13511CAMSHAFT
main13501-0D030i200501-200706
main13501-21030i200105-200304
main13501-22040i200105-200210
main13501-22041i200210-200304
sub13501-22042
main13501-22061i200304-200706
sub13501-22062
13512CAMSHAFT, NO.2
main13502-0D010i200501-200706
main13502-21030i200304-200401
main13502-21031i200401
main13502-22010i200105-200210
main13502-22011i200304-200706
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-21020i200304-200401
main13523-22020i200105-200207
13540TENSIONER ASSY, CHAIN, NO.1
main13540-21010i200105-200304
main13540-21020i200308
main13540-22022i200105-200304
13559SLIPPER, CHAIN TENSIONER
main13559-21010i200304
sub13559-21030
main13559-22011i200105-200304
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-21010i200304
sub13561-21040
main13561-22020i200304
13711VALVE, INTAKE
main13711-0D010×8i200501-200706
main13711-21010×8i200105-200304
main13711-22030×8i200105-200304
main13711-22040×8i200304-200501
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90080-31043×8i200501-200706
main90080-31046×8i200501-200706
main90913-02092×8i200105-200304
sub90913-02128
main90913-02093×8i200105-200304
main90913-02101×8i200105-200304
main90913-02111×8i200105-200304
13711CSPRING, COMPRESSION(FOR OUTER)
main90905-01049×16i200105-200304
sub90501-27040
13715VALVE, EXHAUST
main13715-0D010×8i200501-200706
main13715-21010×8i200105-200304
main13715-22030×8i200105-200304
main13715-22040×8i200501-200706
13734SEAT, VALVE SPRING
main13734-74010×16i200105-200304
13741RETAINER, VALVE SPRING
main13741-22020×16i200105-200107
main13741-22021×16i200107-200304
13741ALOCK, VALVE SPRING RETAINER
main90913-03028×32i200105-200304
main90913-03031×32i200105-200304
13751LIFTER, VALVE
main13751-46030×16i200105-200304
main13751-46040×16i200304
main13751-46050×16i200304
main13751-46060×16i200105-200304
main13751-46070×16i200304
main13751-46080×16i200304
main13751-46090×16i200105-200304
main13751-46100×16i200304
main13751-46110×16i200304
main13751-46120×16i200304
main13751-46130×16i200304
main13751-46140×16i200105-200304
main13751-46150×16i200304
main13751-46160×16i200105-200304
main13751-46170×16i200304
main13751-46180×16i200105-200304
main13751-46190×16i200105-200304
main13751-46200×16i200105-200304
main13751-46210×16i200105-200304
main13751-46220×16i200304
main13751-46230×16i200105-200304
main13751-46240×16i200105-200304
main13751-46250×16i200105-200304
main13751-46260×16i200105-200304
main13751-46270×16i200304
main13751-46280×16i200304
main13751-46290×16i200105-200304
main13751-46300×16i200105-200304
main13751-46310×16i200105-200304
main13751-46320×16i200105-200304
main13751-46330×16i200105-200304
main13751-46340×16i200304
main13751-46350×16i200105-200304
main13751-46360×16i200105-200304
main13751-46370×16i200105-200304
9010510445
main90105-10445
9011910873
main90119-10873
9155180625
main91551-80625
91641C0614
main91641-C0614

21 parts on this diagram · 2 diagrams in section
