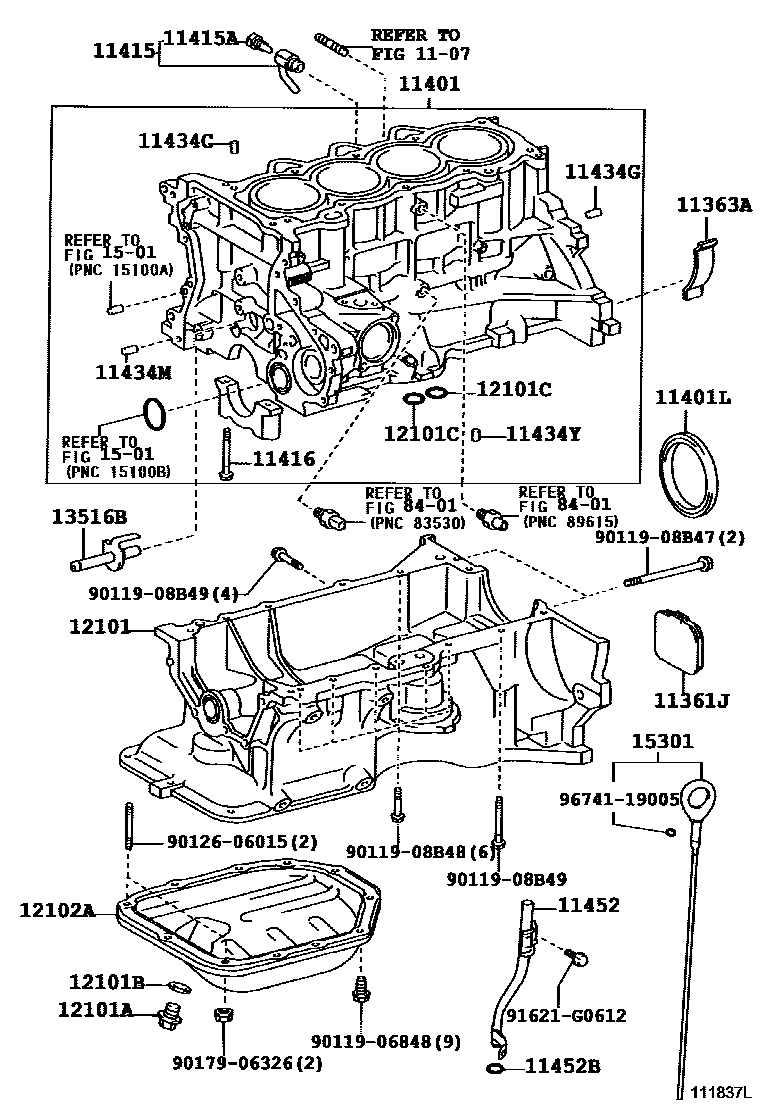

CYLINDER BLOCK

0001 1 0002 1

1107

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21010i1NZFE..NZE121200105-200106

sub11361-21011

main11361-21011i1NZFE..NZE121200106-200304

main11361-22021i1ZZFE..ZZE12#200105-200304

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NZFE..NZE121200105-200304

11401BLOCK SUB-ASSY, CYLINDER

main11401-29686i1NZFE..NZE121200105-200212

sub11401-29687

main11401-29687i1NZFE..NZE121200212-200304

sub11401-29855

main11401-29855i1NZFE..NZE121200304

sub11401-29856

main11410-09070i1ZZFE..ZZE122200501-200706

sub11410-29165

main11410-29086i1ZZFE..ZZE12#200105-200212

sub11410-29135

main11410-29135i1ZZFE..ZZE12#200212-200304

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

main11410-29165i1ZZFE..ZZE124200304-200706

sub11410-29166

sub16258-28030

sub16268-22021

sub16268-22101

sub16268-22111

sub16268-22161

sub16268-22171

main11410-29165i1ZZFE..ZZE122200501-200706

sub11410-29166

sub16258-28030

sub16268-22021

sub16268-22101

sub16268-22111

sub16268-22161

sub16268-22171

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZFE..NZE121200105-200304

sub90311-75019

main90311-76001i1ZZFE..ZZE12#200105-200304

sub90311-76003

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZFE..NZE121200105-200304

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1NZFE..NZE121200105-200304

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90080-10199i1ZZFE..ZZE122200501-200706

main90105-08363i1ZZFE..ZZE12#200105-200304

sub91511-K0840

main90910-02125i1NZFE..NZE121200105-200304

sub90910-02207

main91511-K0840i1ZZFE..ZZE122200501-200706

main91511-K0840i1ZZFE..ZZE122200304-200706

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZFE..NZE121200105-200304

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1NZFE..NZE121200105-200304

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE..NZE121200105-200304

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i1NZFE..NZE121200105-200304

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE..NZE121200105-200304

main11452-22030i1ZZFE..ZZE12#200105-200304

sub11452-22031

sub11459-22010

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1NZFE..NZE121200105-200304

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE..ZZE12#200105-200304

main12111-21033i1NZFE..NZE121200105-200304

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZZFE..ZZE12#200210-200304

main90341-12026i1NZFE..NZE121200105-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFE..NZE121200105-200304

12101CRING, O(FOR OIL PAN)

main96722-24020i1NZFE..NZE121200105-200304

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZFE..NZE121200105-200304

13516BJET, OIL

main13516-21010i1NZFE..NZE121200105-200304

sub13516-21011

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZFE..NZE121200105-200706

sub15301-21040

main15301-22030i1ZZFE..ZZE12#200105-200507

sub15301-22050

main15301-22050i1ZZFE..ZZE12#200507

8401

9011906848

main90119-06848

9011908B47

main90119-08B47

9011908B48

main90119-08B48

9011908B49

main90119-08B49

9012606015

main90126-06015

9017906326

main90179-06326

91621G0612

main91621-G0612

9674119005

main96741-19005

31 parts on this diagram · 2 diagrams in section
