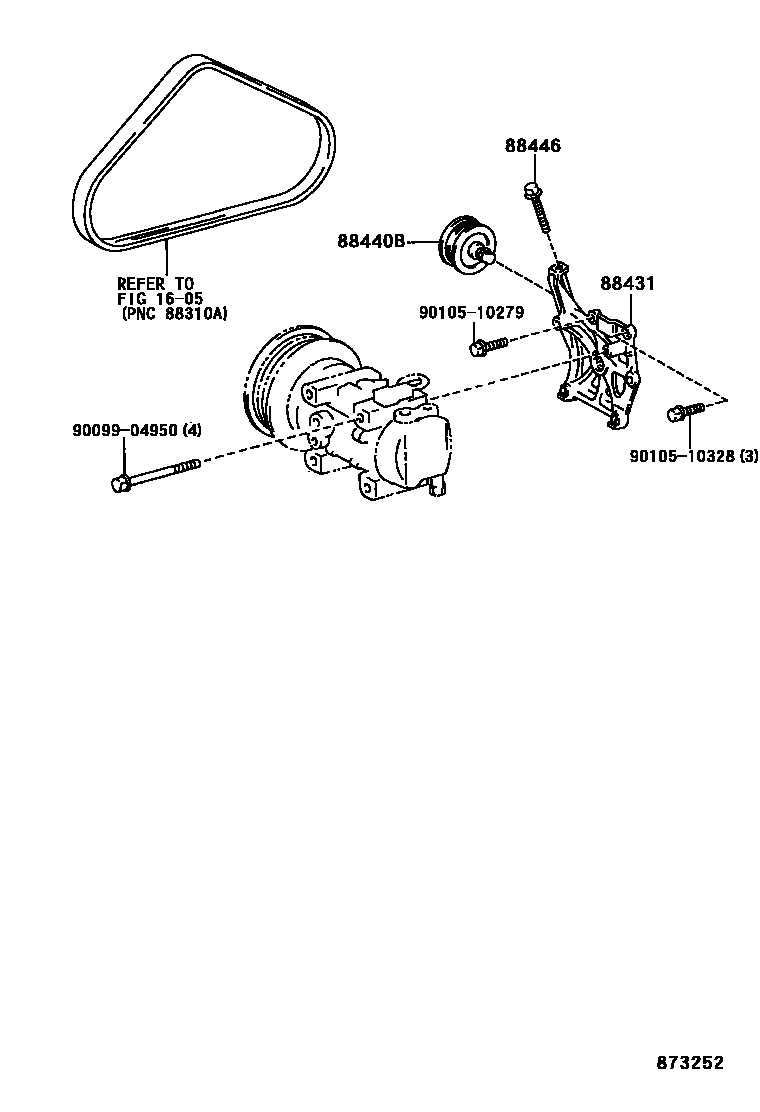

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12560iAE11#199701

88440BPULLEY ASSY, IDLE

main88440-20160iAE11#199701-199804

main88440-20170iAE11#199804

88446BOLT, IDLE PULLEY

main88446-12030iAE11#199701

9009904950

main90099-04950

9010510279

main90105-10279

9010510328

main90105-10328

7 parts on this diagram · 2 diagrams in section
