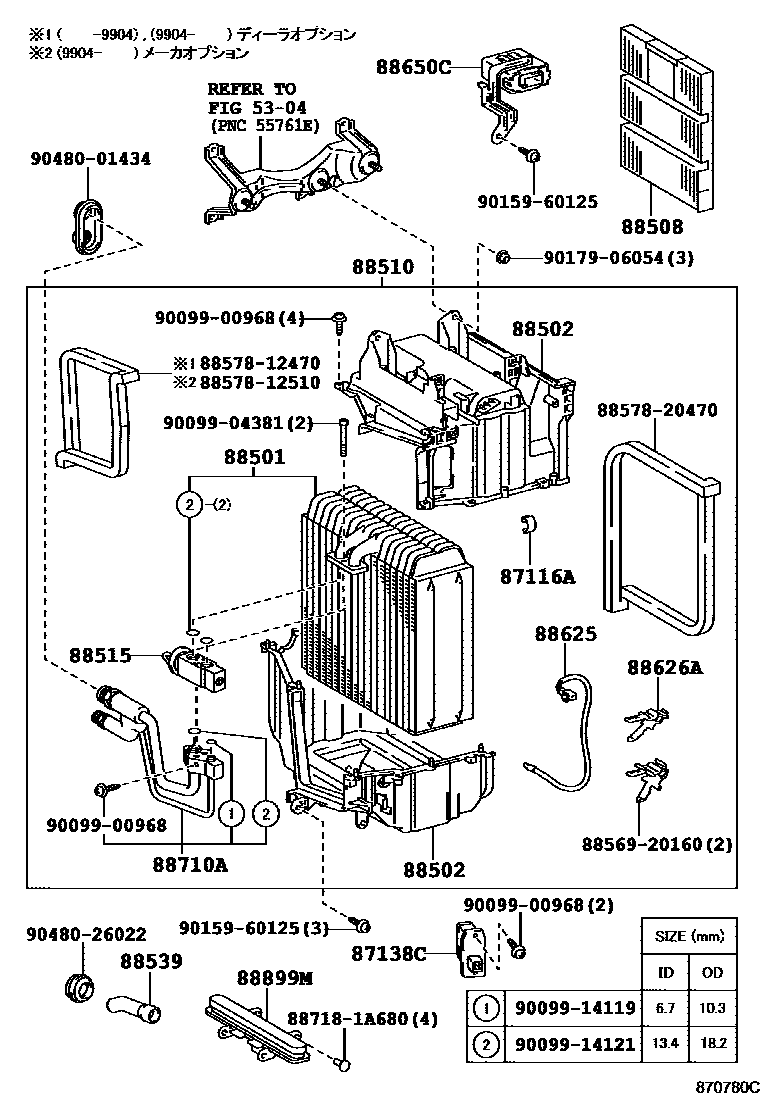

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����� ���� 0002 1�-� ����

5304

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iAE11#199701

87138CRESISTOR, BLOWER

main87138-12140iAE11#199701

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12391iAE11#199701

88502CASE SUB-ASSY, COOLING UNIT

main88502-12200iAE11#199701-199904

main88502-12240iAE11#199701

main88502-12250iAE11#199701-199904

main88502-12270iAE11#..06S199809-199904

main88502-12270iAE11#199904

88508FILTER SUB-ASSY, CLEAN AIR

main88508-12010iAE11#..06S¥3,000199809-199904

CONCEPT BY MIKIHOUSE *(M)

main88508-12020iAE11#¥3,000199904

88510UNIT ASSY, COOLER

main88510-13050iAE11#199701-199904

main88510-13060iAE11#199701-199904

main88510-13080iAE11#..05S199809-199904

CONCEPT BY MIKIHOUSE *(M)

main88510-13080iAE11#199904

main88510-13100iAE11#199904

88515VALVE, COOLER EXPANSION

main88515-20100iAE11#¥10,300199701

sub88515-22240¥10,200

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12160iAE11#199701

88625THERMISTOR, COOLER, NO.1

main88625-12280iAE11#199701

88626AHOLDER, THERMISTOR

main88626-28010iAE11#199701

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-13010iAE11#199701

main88650-13020iAE11#199701

88710ATUBE ASSY, AIR CONDITIONER

main88710-12330iAE11#¥10,800199701

88899MPLATE, COVER(FOR AIR FILTER)

main88899-12340iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M)

main88899-12340iAE11#199904

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857812470PAKING, COOLER AIR DUCT

main88578-12470

8857812510PAKING, COOLER AIR DUCT

main88578-12510

8857820470PAKING, COOLER AIR DUCT

main88578-20470

887181A680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A680

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9015960125

main90159-60125¥120

9017906054

main90179-06054¥100

9048001434

main90480-01434

9048026022

main90480-26022¥0

27 parts on this diagram · 2 diagrams in section
