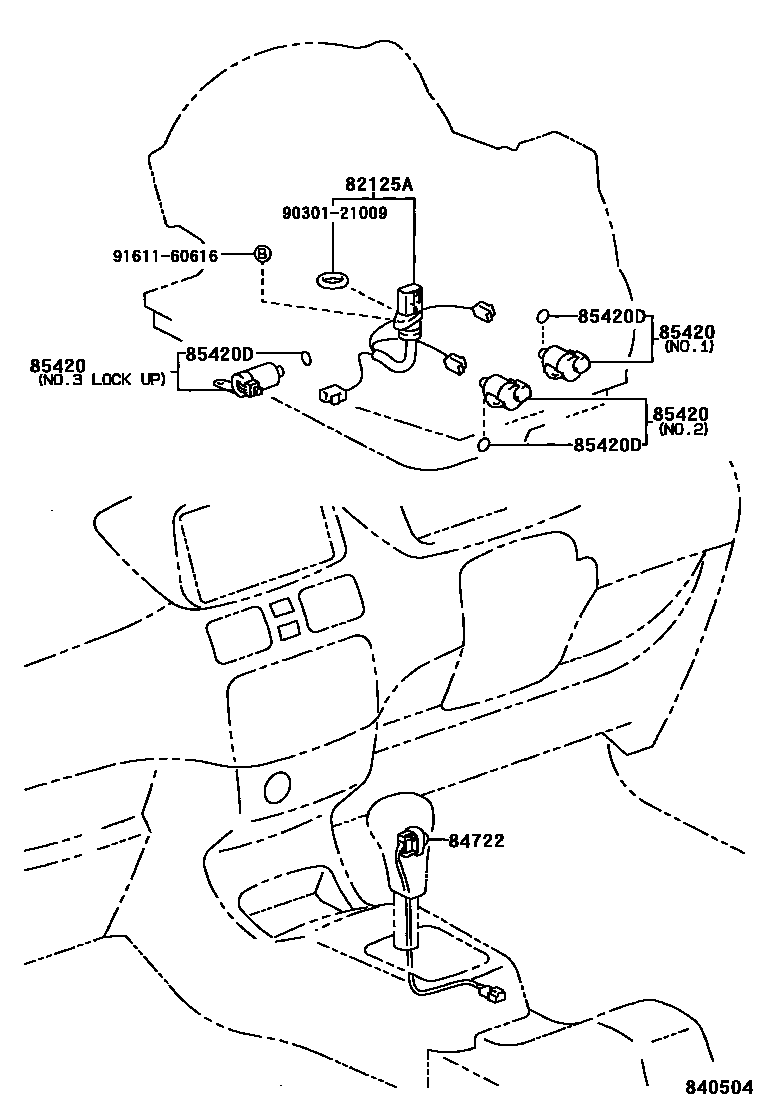

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-12350iAE111199701

main82125-20220iAE115199707

84722SWITCH, TRANSMISSION CONTROL

main84722-12060-A0iAE11#..05S199804-199812

sub84722-12060

main84722-12060-B1iAE11#199701-199904

MD.CHARCOAL,TRIM1#

sub84722-12060

main84722-13010-A0iAE11#..05S..STD200004

sub84722-13010

main84722-13010-B0iAE11#199904

MD.CHARCOAL,TRIM1#

sub84722-13010

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAE111199701-199809

sub85420-21010

main85420-12120iAE111199701-199809

sub85420-21030

main85420-12140iAE111199701-199809

sub85420-21050

main85420-20140iAE115199707-199809

sub85420-21070

main85420-21010iAE111..AER199904

main85420-21010iAE111..STD199809

main85420-21020iAE111199809-199904

sub85420-21010

main85420-21030iAE111199809-199904

sub85420-21040

main85420-21040iAE111..AER199904

main85420-21040iAE111..STD199809

main85420-21050iAE111199809-199904

sub85420-21060

main85420-21060iAE111..AER199904

main85420-21060iAE111..STD199809

main85420-21070iAE115..AER199904

main85420-21070iAE115..STD199809

main85420-21080iAE115199809-199904

sub85420-21070

main85420-21090iAE115199809

NO.1,2,DENSO

main85420-21100iAE115199809

NO.1,2,AISIN

main85420-30200iAE115199707-199809

sub85420-21090

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAE11#199701

9030121009

main90301-21009

9161160616

main91611-60616

6 parts on this diagram · 2 diagrams in section
