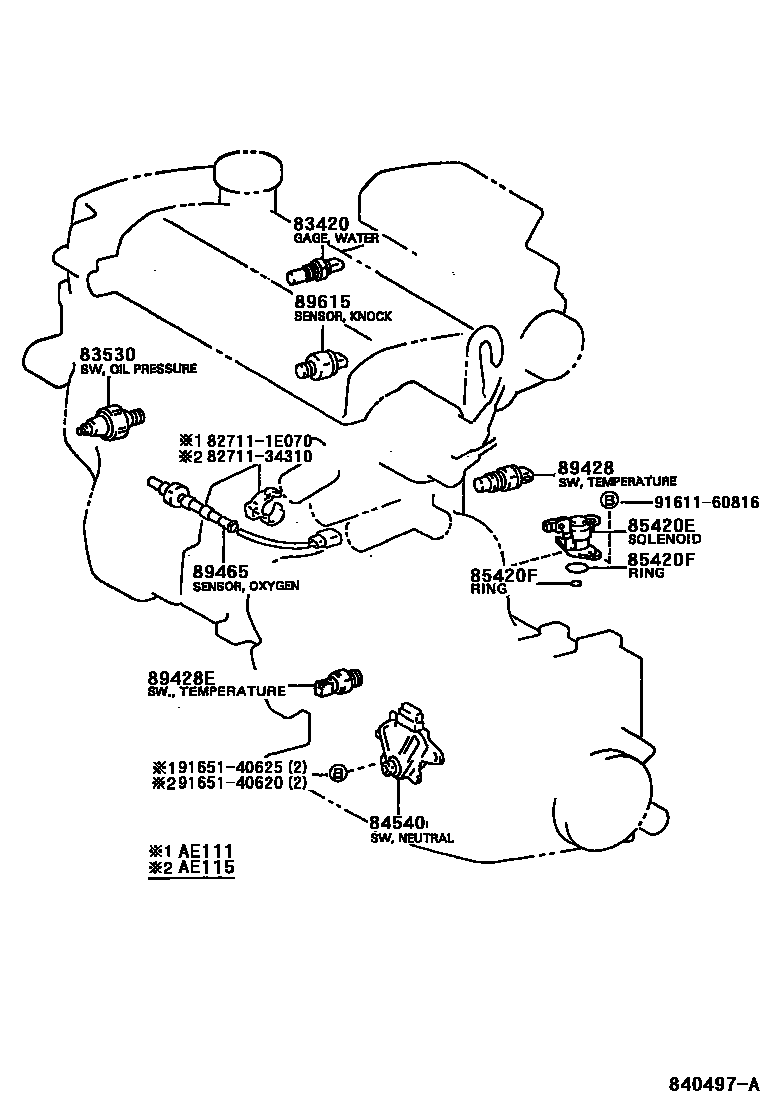

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iAE11#199701

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAE11#199803

main83530-30090iAE11#199701-199803

sub83530-60020

main83530-60020iAE11#199803

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE111199701

main84540-12210iAE111199701

main84540-16050iAE115199707

85420ESOLENOID ASSY, TRANSMISSION

main85420-12090iAE115199707

85420FRING, O(FOR TRANSMISSION SOLENOID)

main90301-11001iAE115199707

main90301-23001iAE115199707

ID=23.5

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE11#199701

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-12140iAE115199707

89465SENSOR, OXYGEN

main89465-12490iAE115199707

main89465-13020iAE111199701

89615SENSOR, KNOCK CONTROL

main89615-12030iAE11#199701-199809

sub89615-22050

main89615-22030iAE11#199701-199909

main89615-22050iAE11#199809

sub89615-52010

main89615-52010iAE11#199909

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9161160816

main91611-60816

9165140620

main91651-40620

9165140625

main91651-40625

14 parts on this diagram · 6 diagrams in section
