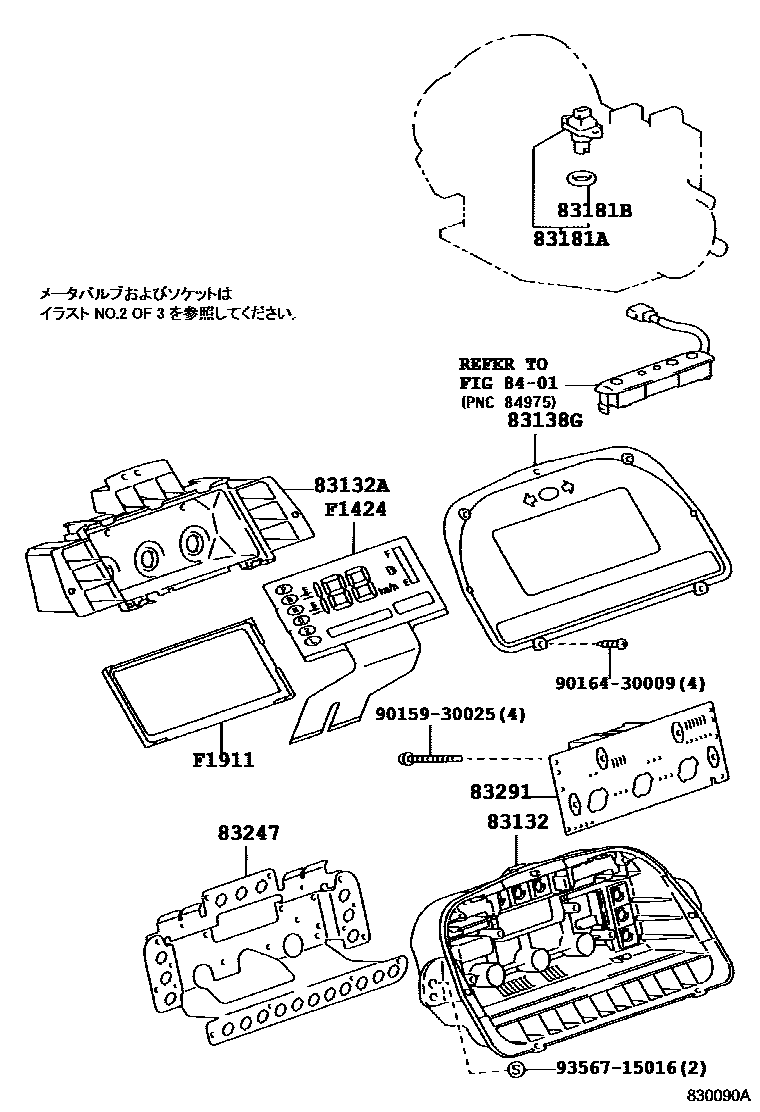

METER

0001 1��������� 0002 1����� & ���� 0003 1���-�

83132CASE, COMBINATION METER

mainF142313010iAE11#199701

83132ACASE, METER

mainF142513010iAE11#199701

83138GGLASS, COMBINATION METER

mainF142213010iAE111199701-199707

mainF142213011iAE11#199707

83181ASENSOR, SPEEDOMETER

main83181-12010iAE115199707

main83181-12020iAE111199701

83181BRING, O (FOR SPEEDOMETER SENSOR)

main90301-18018iAE115199707

main96711-24030iAE111199701

83247PLATE, METER CIRCUIT

mainF143913010iAE111199701-199707

mainF143913011iAE111199707-199904

mainF143913020iAE115199707-199904

mainF143913030iAE111199805-199904

mainF143913040iAE115199805-199904

mainF143913050iAE111..STD199904

mainF143913060iAE115..STD199904

mainF143913070iAE111..AER199904

mainF143913080iAE115..AER199904

83291COMPUTER, COMBINATION METER

mainF140213010iAE111199701-199904

mainF140213020iAE115199707-199904

mainF140213030iAE111199904

mainF140213040iAE115199904

8401

F1424CELL, COMPUTER METER LIQUID CRYSTAL

mainF142413010iAE11#199701-199904

mainF142413020iAE11#199805-199904

mainF142413030iAE11#..STD199904

mainF142413040iAE11#..AER199904

F1911HOLDER, LIQUID CRYSTAL CELL

mainF191113010iAE11#199701

9015930025

main90159-30025

9016430009

main90164-30009

9356715016

main93567-15016

13 parts on this diagram · 3 diagrams in section
