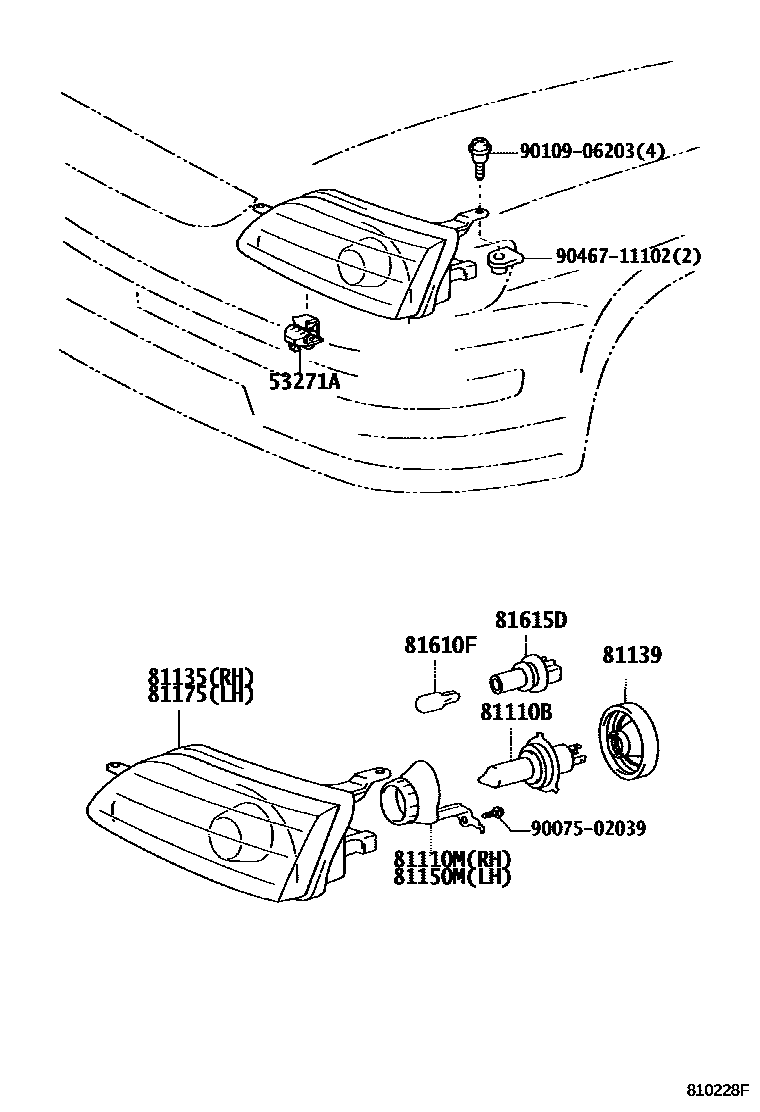

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060iAE11#199701

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004iAE11#199701

sub90981-13055

81110MSHADE, BULB, RH

main90075-99126iAE11#199701-199904

81135UNIT ASSY, HEADLAMP, RH

main81130-13130iAE11#199701-199904

main81130-13190iAE11#199804-199904

main81130-13210iAE11#..STD199904

main81130-13220iAE11#..AER199904

81139COVER, HEADLAMP SOCKET

main90075-65002iAE11#199701

81150MSHADE, BULB, LH

main90075-99127iAE11#199701-199904

81175UNIT ASSY, HEADLAMP, LH

main81170-13130iAE11#199701-199904

main81170-13190iAE11#199804-199904

main81170-13210iAE11#..STD199904

main81170-13220iAE11#..AER199904

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iAE11#199701

81615DSOCKET, CLEARANCE LAMP

main90075-60004iAE11#199701

9007502039

main90075-02039

9010906203

main90109-06203

9046711102

main90467-11102

12 parts on this diagram · 2 diagrams in section
