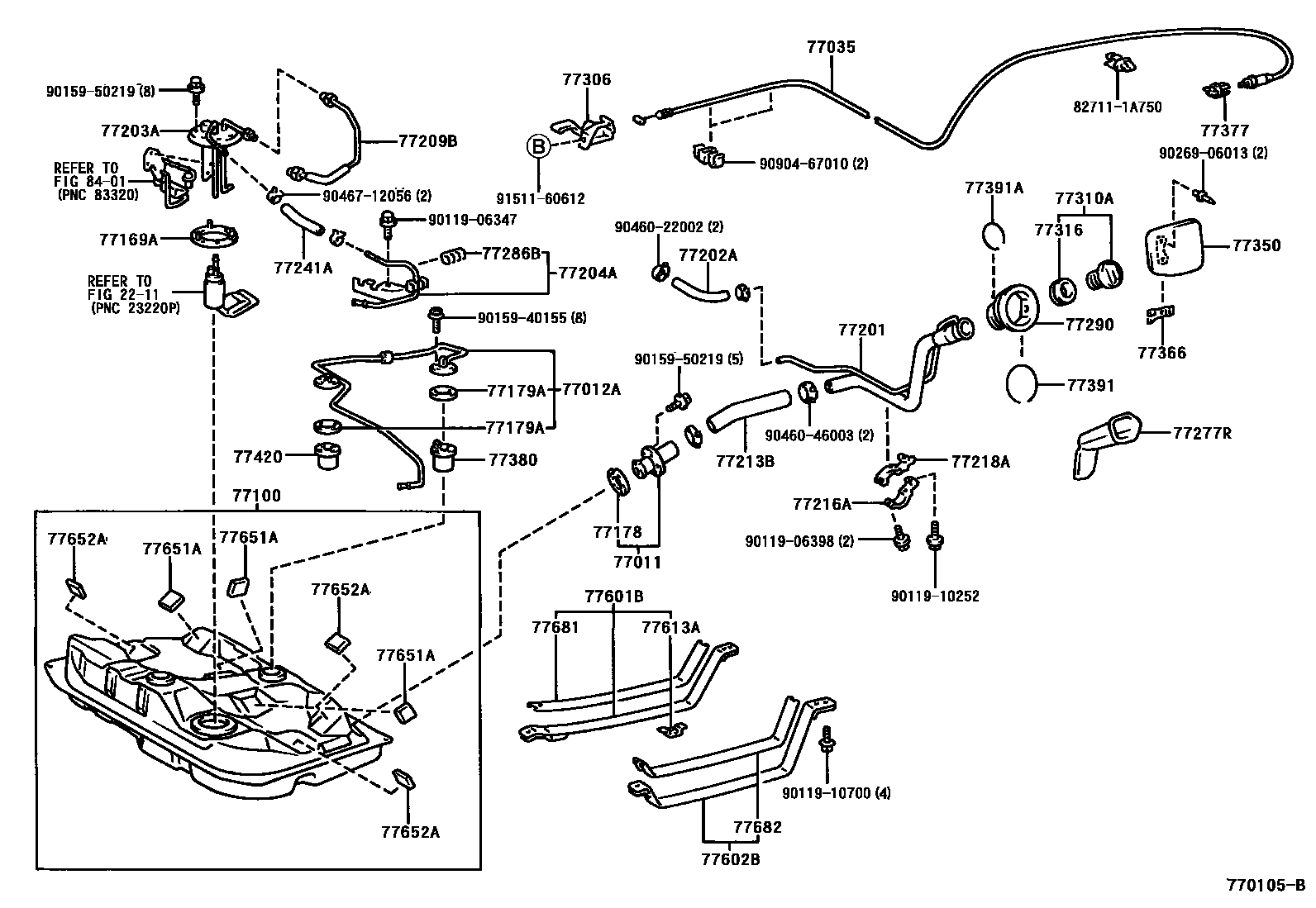

FUEL TANK & TUBE
2211
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
sub77001-13910
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
sub77179-26011
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
sub95337-06020
77277RPROTECTOR, FUEL TANK FILLER PIPE
77286BCLAMP, FUEL TUBE W/GROMMET, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
sub77391-42010
77420VALVE ASSY, FUEL CUT OFF, NO.2
77613ABRACKET, FUEL TANK BAND, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
8401
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9011906347
main90119-06347
9011906398
main90119-06398
9011910252
main90119-10252
9011910700
main90119-10700
9015940155
main90159-40155
9015950219
main90159-50219
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046712056
main90467-12056
9090467010
main90904-67010
9151160612
main91511-60612
51 parts on this diagram · 4 diagrams in section
