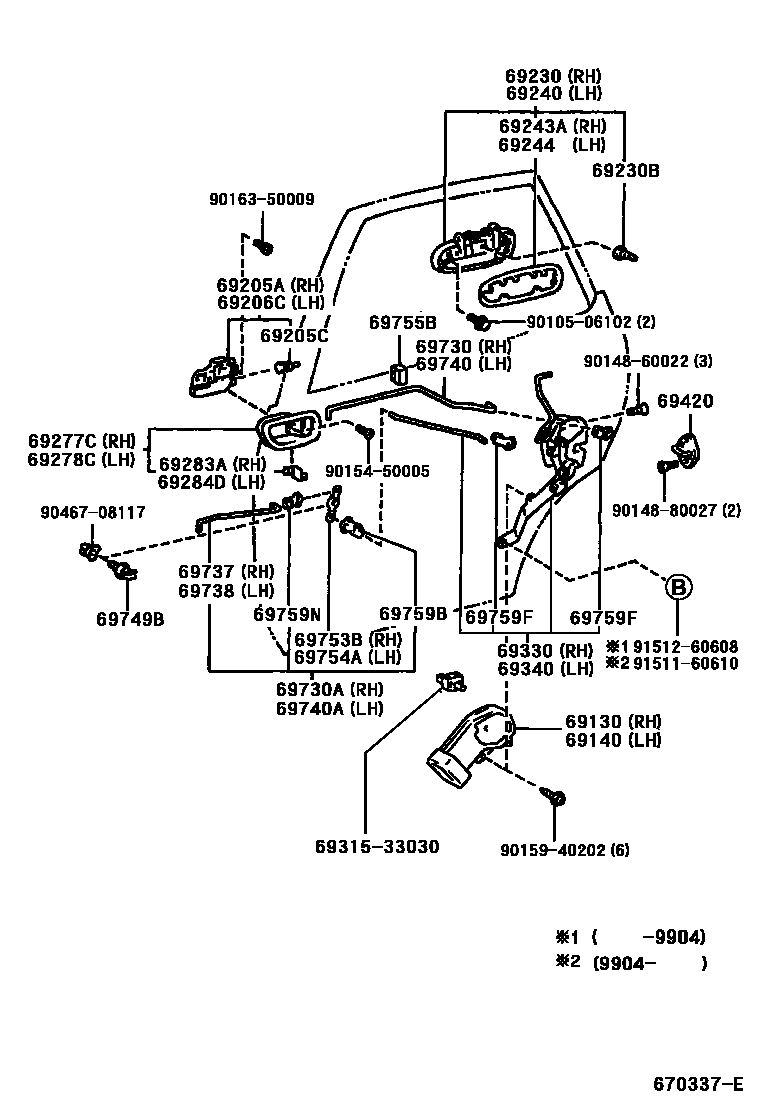

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
sub69205-22080
sub69205-30120
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
sub69206-30120
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME,199
SILVER ME.,1C0
BLACK ME,2DB ,205
BLACK ME,2DB
BLACK ME,205
RED MM,3K4
SUPER RED II,3E5
SUPER BLIGHT YELLOW,576
DK.GREEN M.M.,6P2
YELLOW GREEN ME.OP.,6Q9
GREEN M.M.,6R9
MD.TURQUOISE M.M.OP.,2DA
DK.BLUE MC.,8K8
BLUE MC.,8M6
69243APAD, REAR DOOR OUTSIDE HANDLE, RH
69244PAD, REAR DOOR OUTSIDE HANDLE, LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH
69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH
69755BSILENCER, REAR DOOR LOCK LINK
69759BSNAP, REAR DOOR LOCK CYLINDER
69759NSNAP, DOOR LOCK CONTROL LINK
9010506102
main90105-06102
9014860022
main90148-60022
9014880027
main90148-80027
9015450005
main90154-50005
9015940202
main90159-40202
9016350009
main90163-50009
9046708117
main90467-08117
9151160610
main91511-60610
9151260608
main91512-60608
39 parts on this diagram · 1 diagram in section
