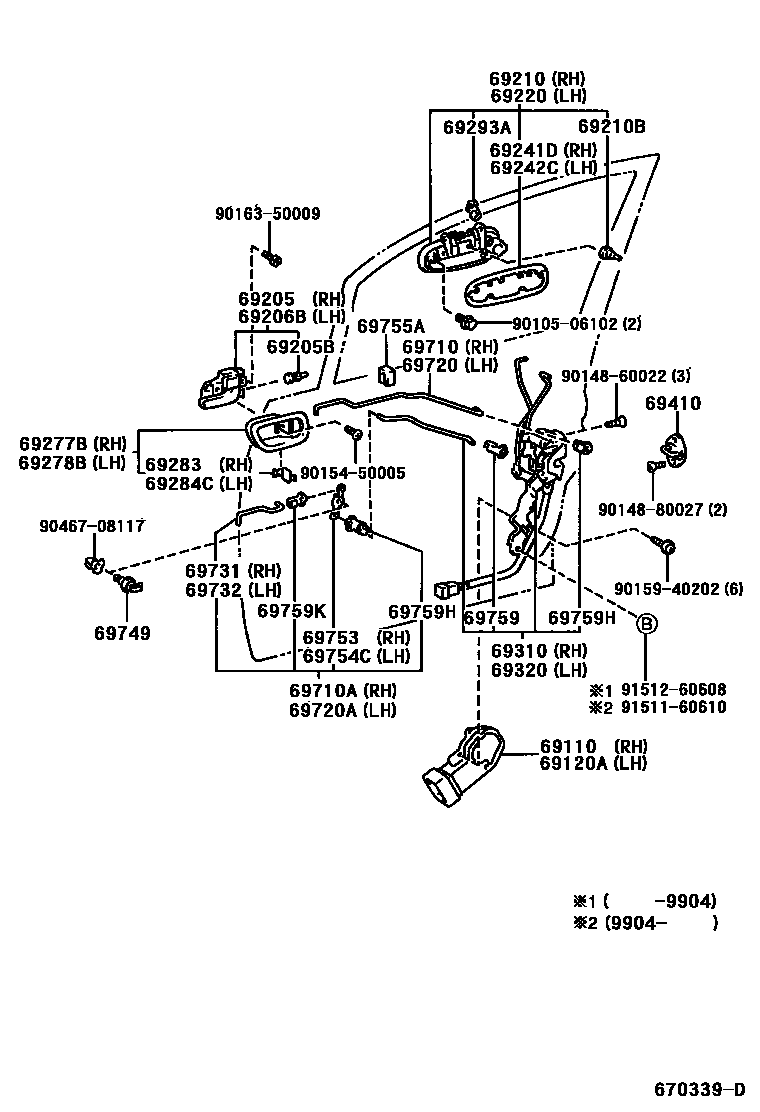

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
CONCEPT BY MIKIHOUSE V *(M),TRIM00
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
sub69205-22080
sub69205-30120
sub69205-30120
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
sub69206-30120
sub69206-30120
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69755ASILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
9010506102
main90105-06102
9014860022
main90148-60022
9014880027
main90148-80027
9015450005
main90154-50005
9015940202
main90159-40202
9016350009
main90163-50009
9046708117
main90467-08117
9151160610
main91511-60610
9151260608
main91512-60608
40 parts on this diagram · 1 diagram in section
