SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
58416GBRACKET, DECK BOARD, NO.1 RH
58417EBRACKET, DECK BOARD, NO.1 LH
58790CARRIER ASSY, JACK
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61121PANEL, COWL SIDE, OUTER RH
61122PANEL, COWL SIDE, OUTER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61199BRACKET, SIDE PANEL TO REAR MUDGUARD
61199ABRACKET, SIDE PANEL TO REAR MUDGUARD, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61315CRETAINER, DOOR LOCK STRIKER, RH
61315DRETAINER, DOOR LOCK STRIKER, LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61434AREINFORCEMENT, ROCKER PANEL, OUTER LH
61473PLATE, PILLAR NO.3, LOWER
61474PLATE, PILLAR NO.4, LOWER
61517BREINFORCEMENT, QUARTER LOCK PILLAR, RH
61518AREINFORCEMENT, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61667CSEAL, QAURTER PANEL, NO.1
61677REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61678REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61715CBRACKET, ROOF SIDE, RH
61716CBRACKET, ROOF SIDE, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61775CFRAME, BACK DOOR OPENING SIDE, RH
61776DFRAME, BACK DOOR OPENING SIDE, LH
61824PLATE, NOISE CONTROL, NO.1
61838BPLATE, NOISE CONTROL, NO.5
61848ARETAINER, QUARTER PANEL, LH
62152BPAD, COWL SIDE SILENCER, NO.2
62553DPAD, PILLAR, NO.3
62554BPAD, PILLAR, NO.4
9010508120
main90105-08120
9017908102
main90179-08102
9033330002
main90333-30002
9033330008
main90333-30008
9095001006
main90950-01006
9095001130
main90950-01130
9095001826
main90950-01826
9095001841
main90950-01841

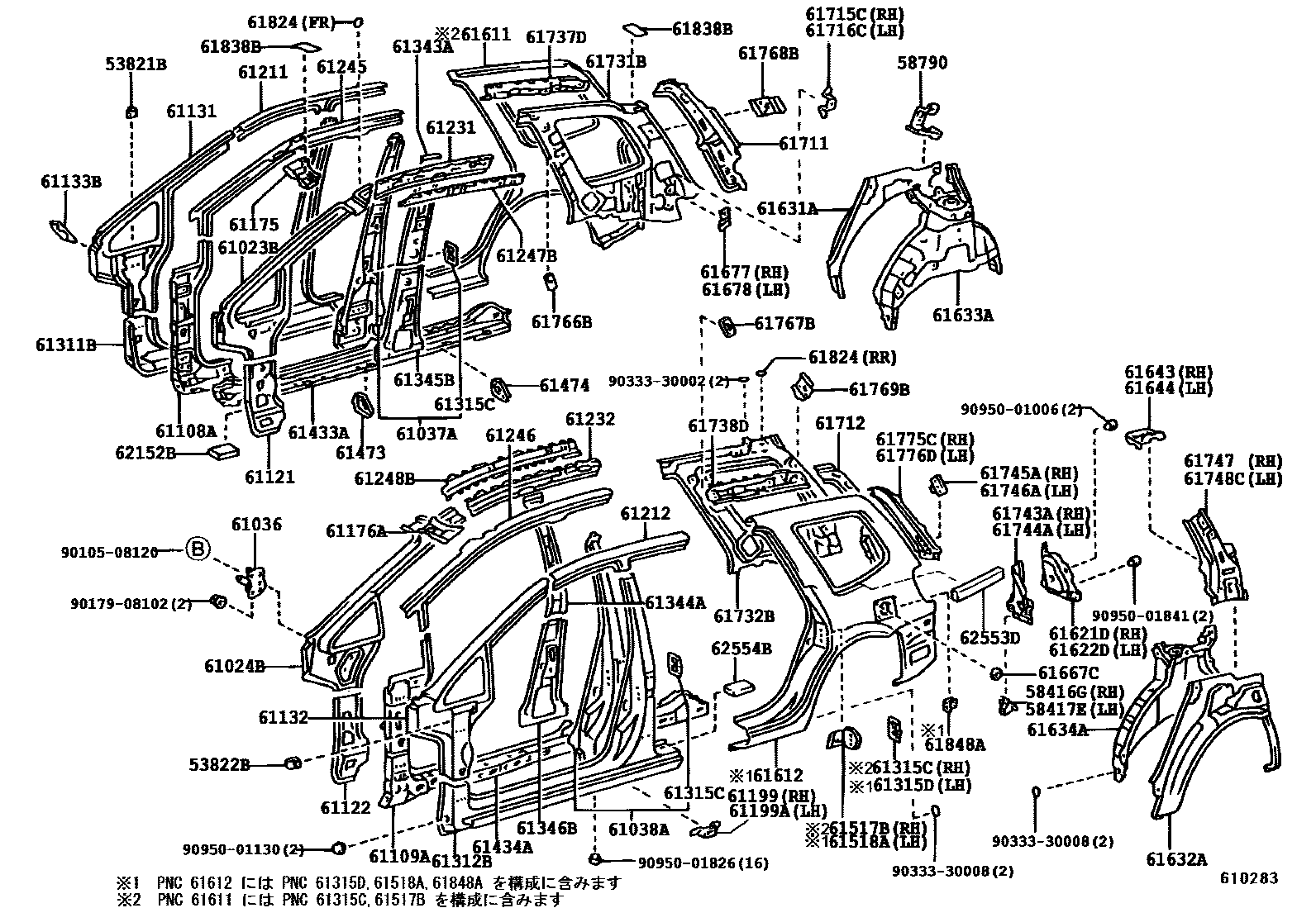

90 parts on this diagram · 1 diagram in section
