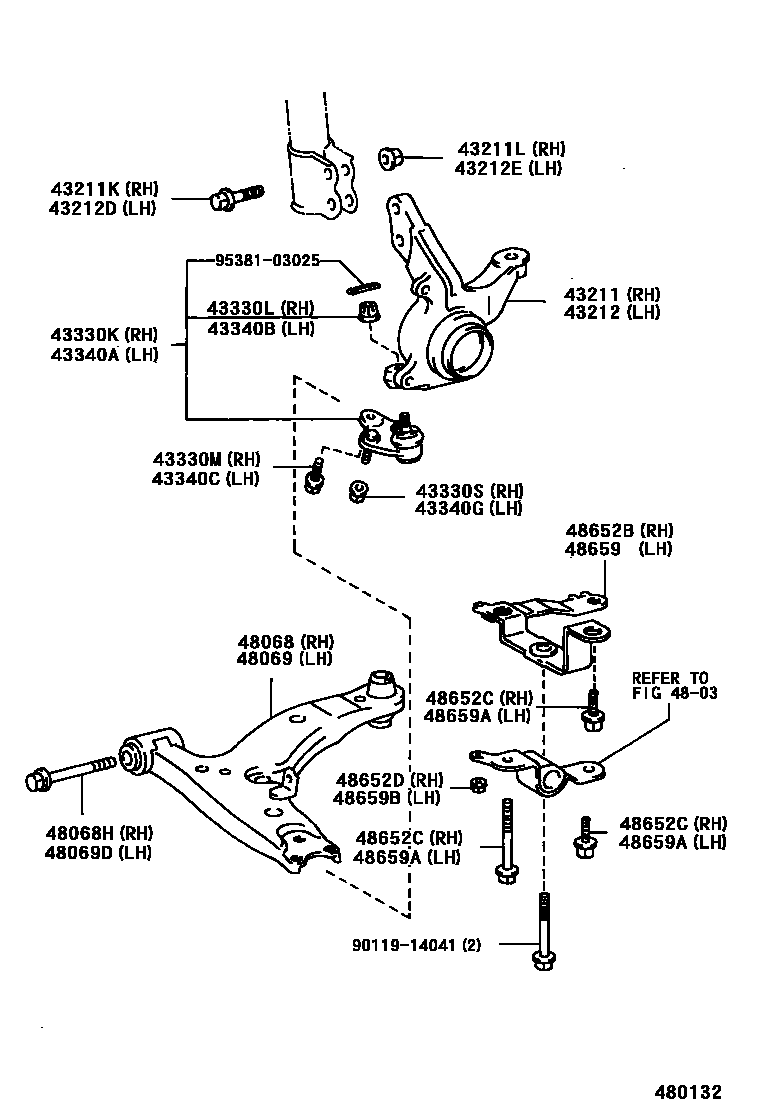

FRONT AXLE ARM & STEERING KNUCKLE
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48652BBRACKET, FRONT LOWER ARM, RH
48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)
48652DNUT(FOR FRONT LOWER ARM BRACKET RH)
sub90179-08123
48659BRACKET, FRONT LOWER ARM, LH
48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)
48659BNUT(FOR FRONT LOWER ARM BRACKET LH)
sub90179-08123
9011914041
main90119-14041
9538103025
main95381-03025
27 parts on this diagram · 2 diagrams in section
