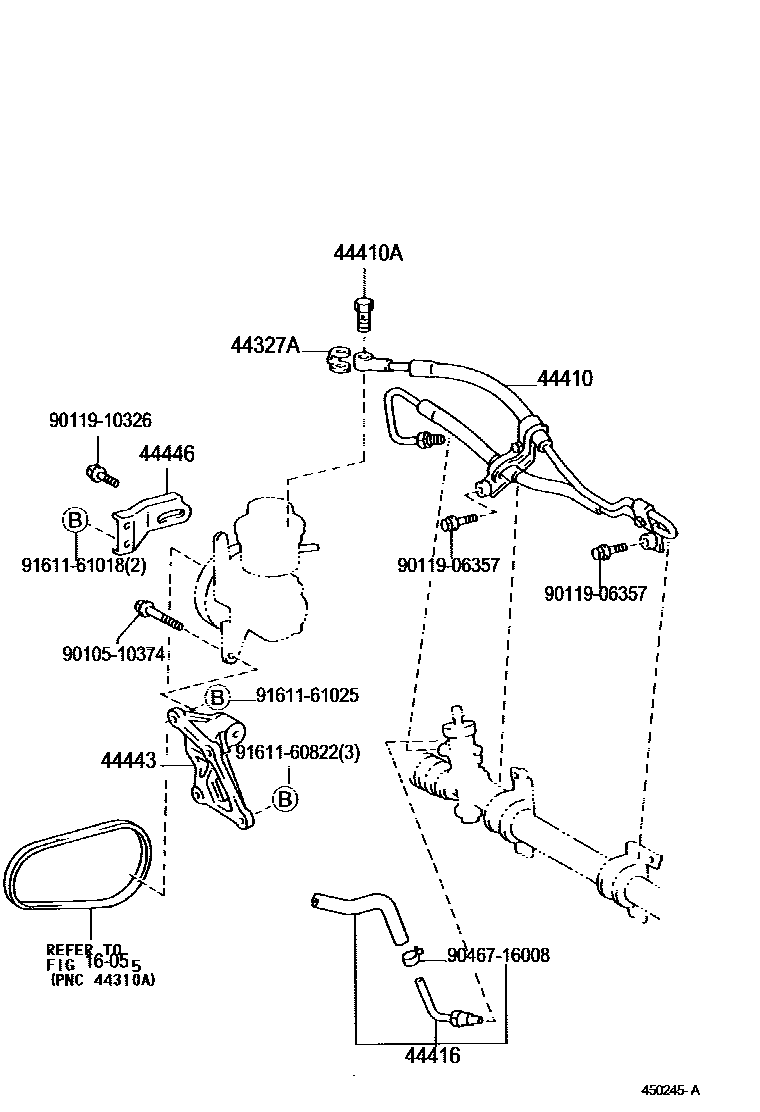

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE11#199701

44410TUBE ASSY, PRESSURE FEED

main44410-12391iAE115199707

main44410-12500iAE111199701

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE11#199701

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12181iAE111199701

main44416-12240iAE115199707

44443BRACKET, PUMP

main44443-12100iAE11#199701

44446STRUT, ADJUSTING

main44446-12060iAE111199701

main44446-12090iAE115199707

9010510374

main90105-10374

9011906357

main90119-06357

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

14 parts on this diagram · 2 diagrams in section
