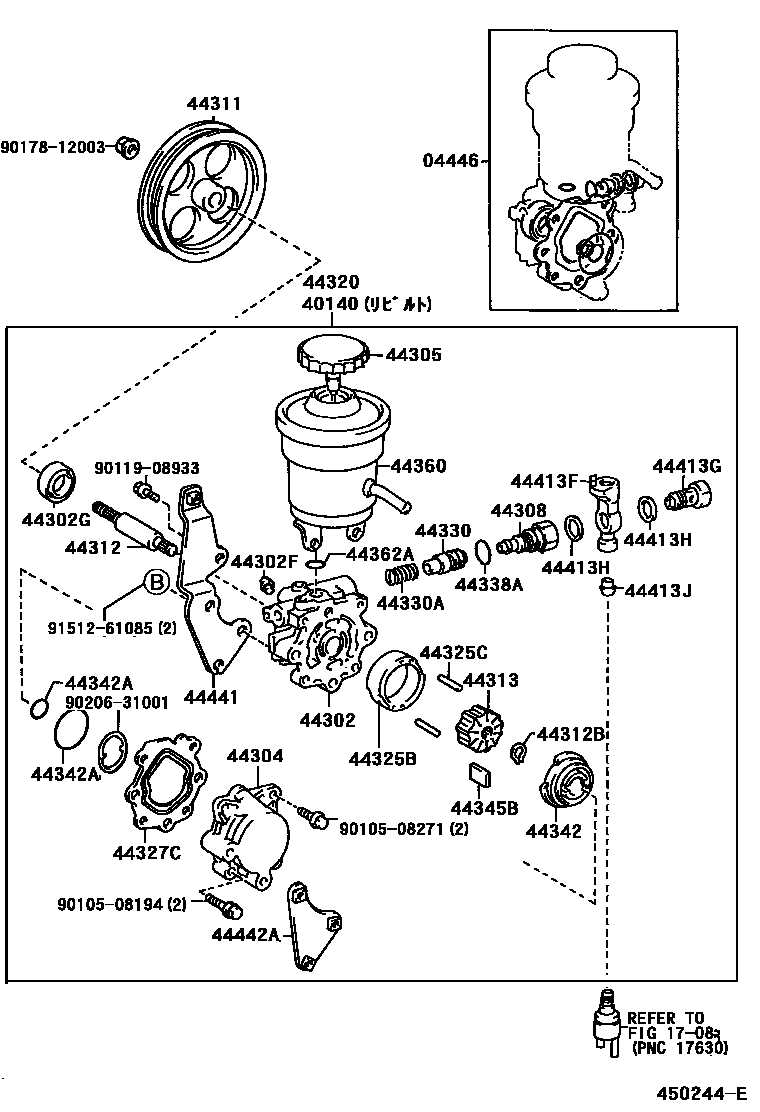

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
1708
40140PUMP ASSY,VANE REBUILT
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-22060
44311PULLEY, VANE PUMP
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44325BRING, VANE PUMP CAM
44325CPIN, STRAIGHT(FOR VANE PUMP CAM RING)
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
sub44330-32191
sub44330-32201
sub44330-32211
sub44330-32221
sub44330-32231
sub44330-32241
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44338ARING, O(FOR PRESSURE PORT UNION)
sub90301-19018
44342PLATE, VANE PUMP SIDE, REAR
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44413FTUBE, PRESSURE FEED, NO.2
44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
44413JSEAT, UNION(FOR PRESSURE FEED TUBE NO.2)
44441BRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
9010508194
main90105-08194
9010508271
main90105-08271
9011908933
main90119-08933
9017812003
main90178-12003
9020631001
main90206-31001
9151261085
main91512-61085
37 parts on this diagram · 1 diagram in section
