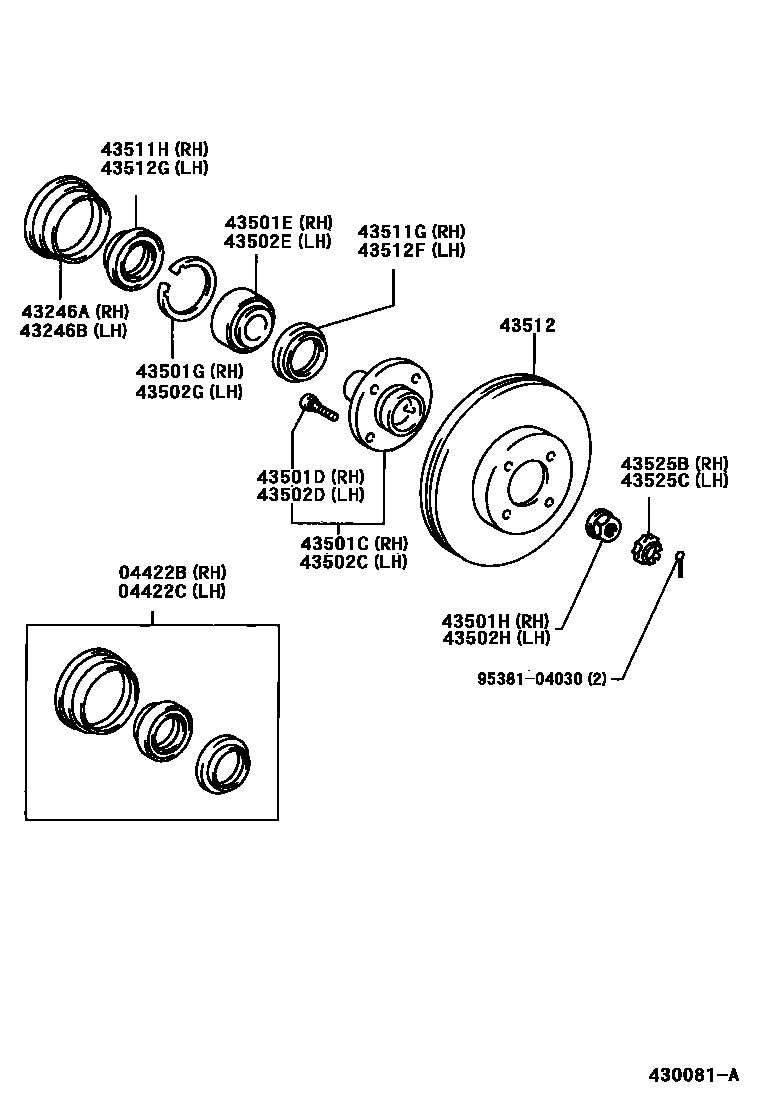

FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12100iAE11#199701

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12100iAE11#199701

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020iAE11#199701

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020iAE11#199701

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12090iAE11#199701

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAE11#199701

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-38006iAE11#199701

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iAE11#199701

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iAE11#199709

main90179-22020iAE11#199701-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12090iAE11#199701

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAE11#199701

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-38006iAE11#199701

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iAE11#199701

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iAE11#199709

main90179-22020iAE11#199701-199709

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90311-52018iAE111199701

43511HSEAL, OIL (FOR FRONT AXLE HUB INNER RH)

main90311-56027iAE111199701

43512DISC, FRONT

main43512-12390iAE11#199701

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90311-52018iAE111199701

43512GSEAL, OIL (FOR FRONT AXLE HUB INNER LH)

main90311-56027iAE111199701

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAE11#199701

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAE11#199701

9538104030

main95381-04030

22 parts on this diagram · 1 diagram in section
