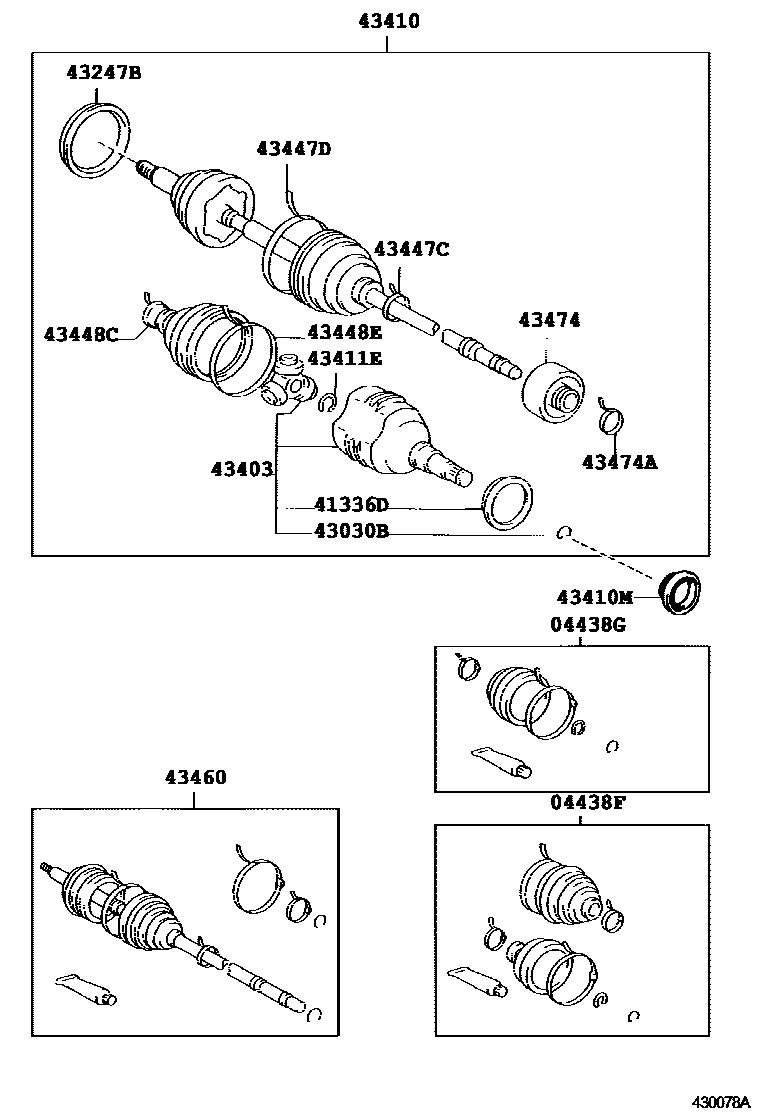

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1��� 0004 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172iAE111199701-200105

sub04428-12270

main04438-12300iAE115199707-199804

sub04438-12301

main04438-12301iAE115199804-199901

sub04438-12303

main04438-12302iAE115199901-200104

sub04438-12304

main04438-12650iAE115200104-200105

sub04428-12290

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12410iAE111199701-200105

sub04438-12840

main04438-32230iAE115199707-199804

sub04438-32231

main04438-32231iAE115199804-200104

sub04438-32290

main04438-52051iAE115200104-200105

sub04438-32231

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAE111199701-200105

main41336-20040iAE115199707-200105

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iAE11#199701-200105

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE11#199701

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE111199701-200105

main43403-12050iAE115199707-200105

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12410iAE115199707-199709

sub43410-12411

sub90178-22001

main43410-12411iAE115199709-199901

sub43410-12412

main43410-12412iAE115199901-200104

sub43410-12413

main43410-12413iAE115200104-200105

main43410-20450iAE111199701-199709

sub43410-20451

sub90178-22001

main43410-20451iAE111199709-200105

sub43410-20452

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE111199701-199908

main90311-34023iAE111199908

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAE11#199701-200105

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iAE115200104-200105

sub42345-12190

main42345-16010iAE111199701-199904

main42345-16030iAE115199707-199901

main42345-20090iAE115199901-199904

sub42345-20100

main42345-20100iAE115199901-200104

main90949-01078iAE111199904-200105

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iAE115200104-200105

sub42345-12180

main42345-16020iAE111199701-199904

main42345-16040iAE115199707-199901

main42345-20110iAE115199901-199904

sub42345-20120

main42345-20120iAE115199901-200104

main90949-01080iAE111199904-200105

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAE11#199701-199904

main90949-01078iAE11#199904-200105

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAE11#199701-199904

main90949-01076iAE11#199904-200105

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29167iAE111199701-199709

sub43460-29168

sub90178-22001

main43460-29168iAE111199709-200105

sub43460-80095

main43470-19306iAE115199707-199709

sub43470-19307

sub90178-22001

main43470-19307iAE115199709-199804

sub43470-19308

main43470-19308iAE115199804-199901

sub43470-19309

main43470-19309iAE115199901-200104

sub43470-19310

main43470-19310iAE115200104-200105

43474DAMPER, DRIVE SHAFT

main43474-12030iAE115199707-200105

main43474-12040iAE111199704-200105

sub43474-12130

main43474-20050iAE111199701-199704

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16030iAE111199701-200105

main90949-01696iAE115199707-200105

16 parts on this diagram · 4 diagrams in section
