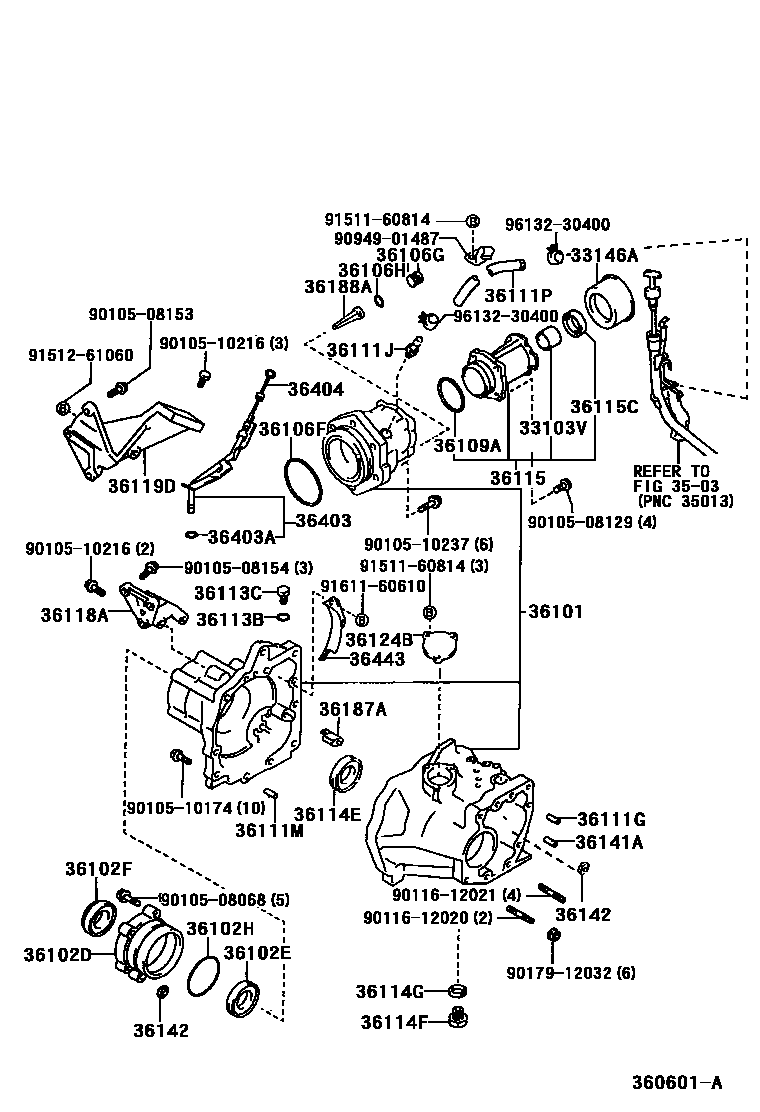

TRANSFER CASE & EXTENSION HOUSING
33103VBUSH, BIMETAL FORMED(FOR MANUAL TRANSMISSION HOUSING)
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
3503
36101CASE SUB-ASSY, TRANSFER
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102ESEAL, OIL, NO.1 (FOR TRANSFER RH BEARING RETAINER)
36102HRING, O (FOR TRANSFER RH BEARING RETAINER)
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36106GPLUG, STRAIGHT (FOR TRANSFER PINION BEARING CAGE)
36106HPLUG, O (FOR TRANSFER PINION BEARING CAGE PLUG)
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111JUNION, BREATHER, NO.1 (FOR TRANSFER)
36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)
36111PHOSE, BREATHER (FOR TRANSFER CASE)
36113BRING, O (FOR TRANSFER CASE PLUG)
36113CPLUG (FOR TRANSFER CASE)
36114ESEAL, OIL (FOR TRANSFER CASE LH)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36119DPLATE, TRANSFER STIFFENER, CENTER
36124BCOVER, TRANSFER INSPECTION HOLE
36141AGASKET, TRANSFER CASE
36142GASKET, TRANSFER COVER
36187ASTRAINR, TRANSFER OIL, NO.1
36188ASTRAINER, TRANSFER OIL, NO.2
36403TUBE SUB-ASSY, TRANSFER OIL FILLER
36403ARING, O (FOR TRANSFER OIL FILLER TUBE)
36404GAGE SUB-ASSY, TRANSFER OIL LEVEL
9010508068
main90105-08068
9010508129
main90105-08129
9010508153
main90105-08153
9010508154
main90105-08154
9010510174
main90105-10174
9010510216
main90105-10216
9010510237
main90105-10237
9011612020
main90116-12020
9011612021
main90116-12021
9017912032
main90179-12032
9094901487
main90949-01487
9151160814
main91511-60814
9151261060
main91512-61060
9161160610
main91611-60610
9613230400
main96132-30400
49 parts on this diagram · 1 diagram in section
