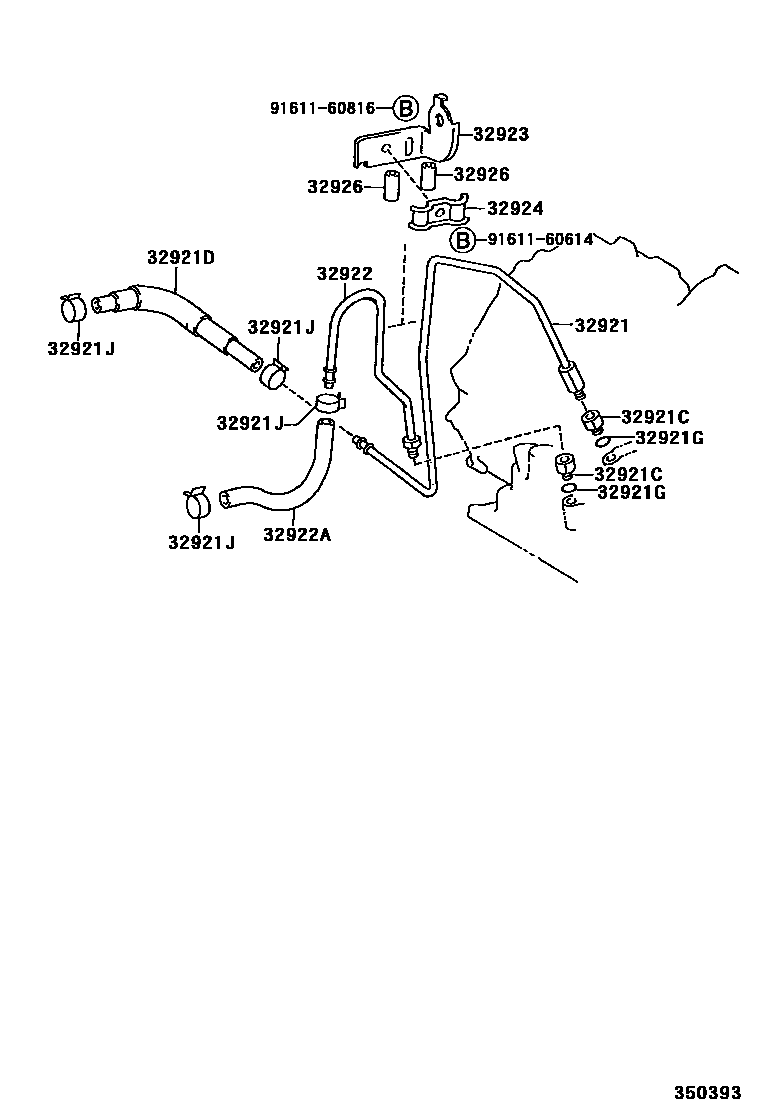

OIL COOLER & TUBE (ATM)

0001 1A246E 0002 1A241H

32921TUBE, OIL COOLER INLET, NO.1

main32921-12270iAE115199707

main32921-13020iAE111199701

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iAE115199707

main90404-14019iAE111199701

main90407-16032iAE115199707

32921DHOSE(FOR OIL COOLER INLET)

main32941-12171iAE115199707

main32941-12270iAE111199701

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAE115199707

main90301-11006iAE111199701

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iAE11#199701

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-13020iAE111199701

main32922-13030iAE115199707

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22101iAE111199701

main90445-15042iAE115199707

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-12230iAE115199707

main32923-12260iAE111199701-199805

sub32923-12261

main32923-12261iAE111199805

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082iAE115199707

main90462-10127iAE111199701

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iAE111199701

main32926-22010iAE115199707-199904

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
