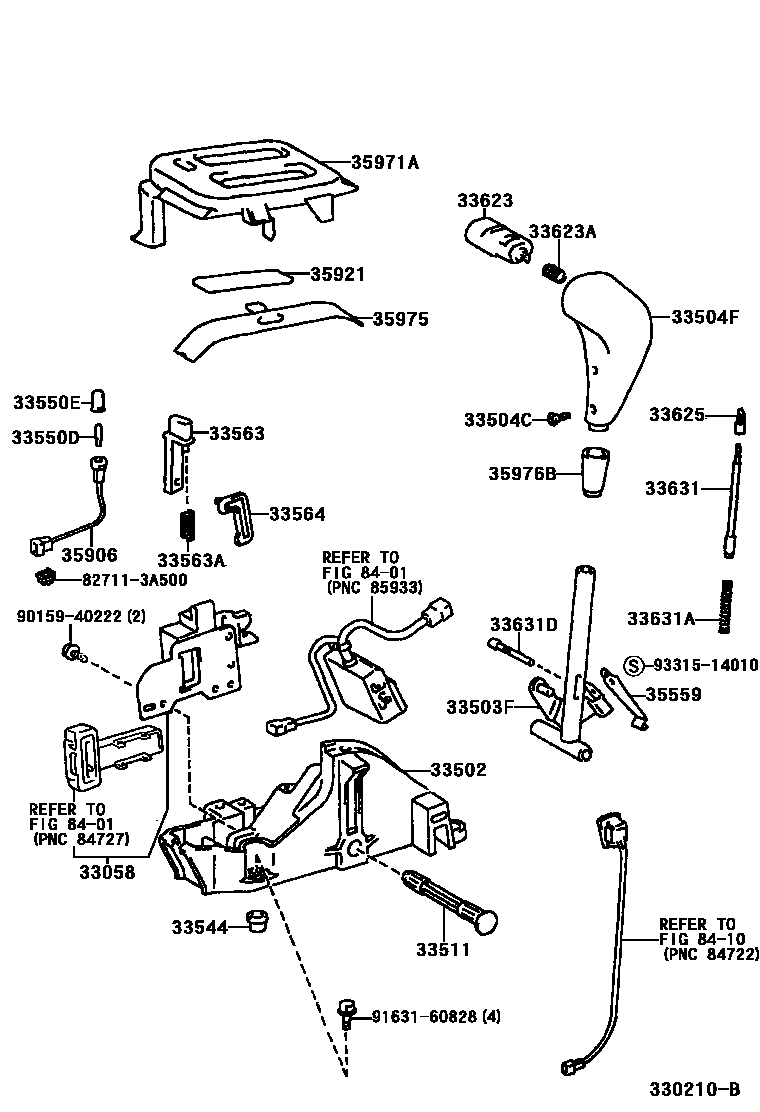

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
sub33563-12100
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33623BUTTON, SHIFT LEVER KNOB
sub33623-12130
CONCEPT BY MIKIHOUSE *(M),MD.CHARCOAL,TRIM00
sub33623-12130
CONCEPT BY MIKIHOUSE V *(M),MD.CHARCOAL,TRIM00
sub33623-12130
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35921PLATE, CONTROL POSITION INDICATOR
sub35921-12390
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
8401
8410
827113A500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A500
9015940222
main90159-40222
9163160828
main91631-60828
9331514010
main93315-14010
30 parts on this diagram · 2 diagrams in section
