CAUTION PLATE & NAME PLATE (ENGINE)

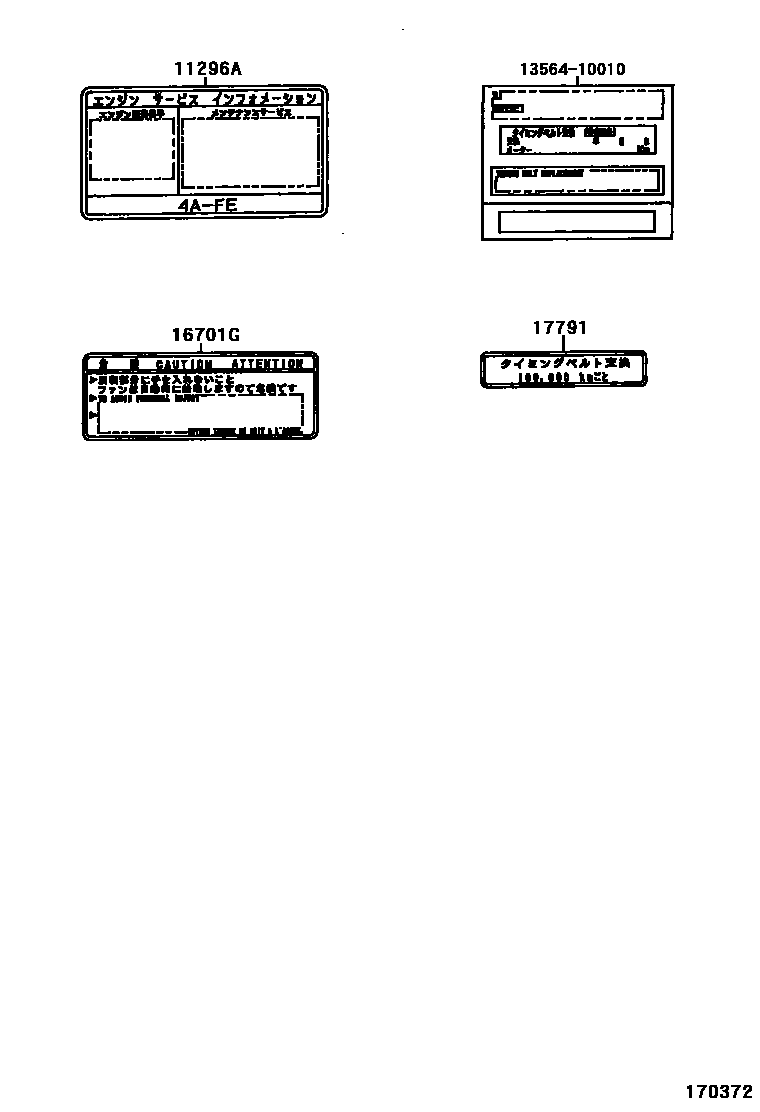

Parts diagram
11296ALABEL, ENGINE SERVICE INFORMATION
main11296-16240i199707
main11296-16300i199701-199707
sub11296-16330
main11296-16330i199707
16701GLABEL, CAUTION
main88723-12100i199701-199704
main88723-20081i199704
sub16793-31070
17791LABEL, MAINTENANCE INFORMATION
main17791-15010i199701
1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION
main13564-10010

4 parts on this diagram · 1 diagram in section
