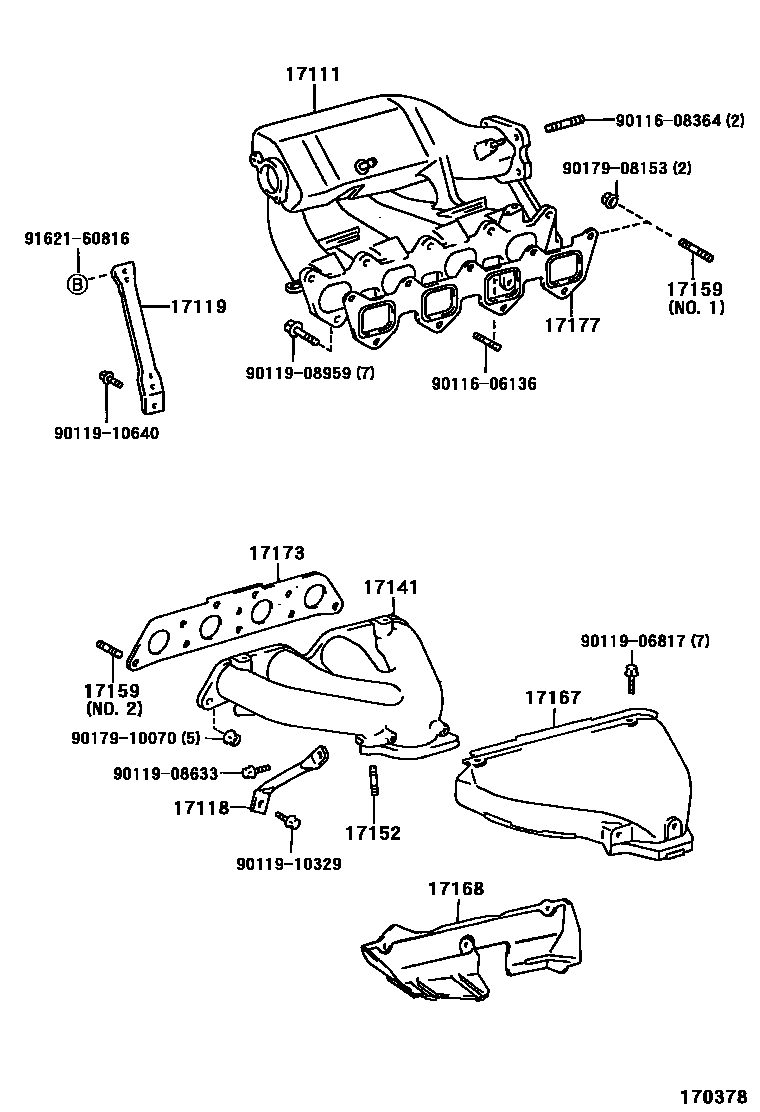

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17101-16190i7AFE..AE115199707

main17101-16280i4AFE..AE111199701

17118STAY, MANIFOLD

main17118-16050i4AFE..AE111199701

main17118-16100i7AFE..AE115199707

17119STAY, MANIFOLD, NO.2

main17139-15050i4AFE..AE111199701

main17139-16140i7AFE..AE115199707

17141MANIFOLD, EXHAUST

main17141-16300i4AFE..AE111199701

main17141-16320i7AFE..AE115199707

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10146i4AFE,7AFE..AE11#199701

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main92112-60825i4AFE,7AFE..AE11#199701

main92112-61028i4AFE,7AFE..AE11#199701

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-16150i4AFE..AE111199701

main17167-16171i7AFE..AE115199707

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-16100i4AFE..AE111199701

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15040i4AFE,7AFE..AE11#199701

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15030i4AFE,7AFE..AE11#199701

9011606136

main90116-06136

9011608364

main90116-08364

9011906817

main90119-06817

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910640

main90119-10640

9017908153

main90179-08153

9017910070

main90179-10070

9162160816

main91621-60816

20 parts on this diagram · 2 diagrams in section
