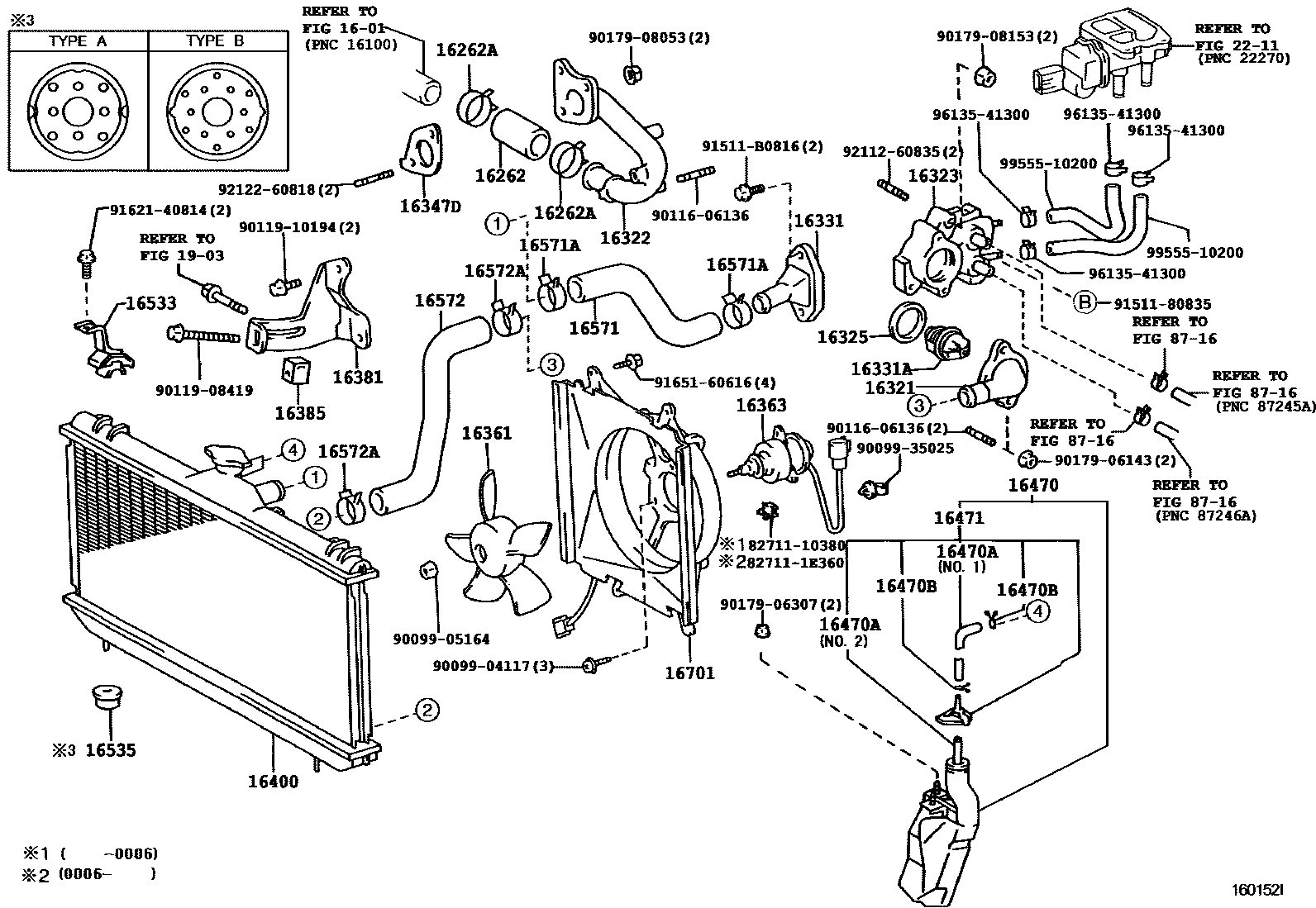

RADIATOR & WATER OUTLET

0001 1 0002 1

1601

16262HOSE, WATER INLET

main16262-15040i4AFE,7AFE..AE11#199701-199802

sub16262-16030

main16262-16030i4AFE,7AFE..AE11#199802

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i4AFE,7AFE..AE11#199701

sub90467-37005

16321INLET, WATER

main16321-15040i4AFE,7AFE..AE11#199701

16322PIPE, WATER INLET

main16322-15050i4AFE..AE111199701

main16322-16060i7AFE..AE115199707

16323HOUSING, WATER INLET

main16323-15180i4AFE,7AFE..AE11#199701

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i4AFE,7AFE..AE11#199701

16331OUTLET, WATER

main16331-15080i4AFE,7AFE..AE11#199701

16331ATHERMOSTAT

main90916-03109i4AFE,7AFE..AE11#199701-199803

sub90916-03115

main90916-03115i4AFE,7AFE..AE11#199803

16347DGASKET, WATER BY-PASS

main16347-15010i4AFE,7AFE..AE11#199701

16361FAN

main16361-11020i4AFE..AE111199701

main16361-63020i7AFE..AE115199707

sub16361-74070

16363MOTOR, COOLING FAN

main16363-74020i4AFE..AE111199701

main16363-74030i7AFE..AE115199707

16381BAR, FAN BELT ADJUSTING

main16381-15080i4AFE,7AFE..AE11#199701

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i4AFE,7AFE..AE11#199701

sub16385-15030

16400RADIATOR ASSY

main16400-16700i4AFE..AE111199701-199804

sub16400-16701

main16400-16701i4AFE..AE111199804

sub16400-16710

main16400-16740i7AFE..AE115199707

16470TANK ASSY, RADIATOR RESERVE

main16470-15100i4AFE,7AFE..AE11#199701

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16478-15090i4AFE,7AFE..AE11#199701

main90445-12078i4AFE,7AFE..AE11#199701

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AFE,7AFE..AE11#199701

16471CAP SUB-ASSY, RESERVE TANK

main16405-15100i4AFE,7AFE..AE11#199701

16533SUPPORT, RADIATOR, UPPER

main16533-16080i4AFE,7AFE..AE11#199701

16535SUPPORT, RADIATOR, LOWER

main90916-04002i7AFE..AE115199707

main90916-04003i7AFE..AE115199707

main90916-04006i4AFE..AE111199701

16571HOSE, RADIATOR, INLET

main16571-15160i4AFE..AE111199701

main16571-16180i7AFE..AE115199707

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i4AFE,7AFE..AE11#199701

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-15210i4AFE..AE111199701

main16572-16150i7AFE..AE115199707

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4AFE,7AFE..AE11#199701

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-15271i4AFE..AE111199701

main16711-15281i7AFE..AE115199707

1903

2211

8716

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9011606136

main90116-06136

9011908419

main90119-08419

9011910194

main90119-10194

9017906143

main90179-06143

9017906307

main90179-06307

9017908053

main90179-08053

9017908153

main90179-08153

9151180835

main91511-80835

91511B0816

main91511-B0816

9162140814

main91621-40814

9165160616

main91651-60616

9211260835

main92112-60835

9212260818

main92122-60818

9613541300

main96135-41300

9955510200

main99555-10200

49 parts on this diagram · 2 diagrams in section
