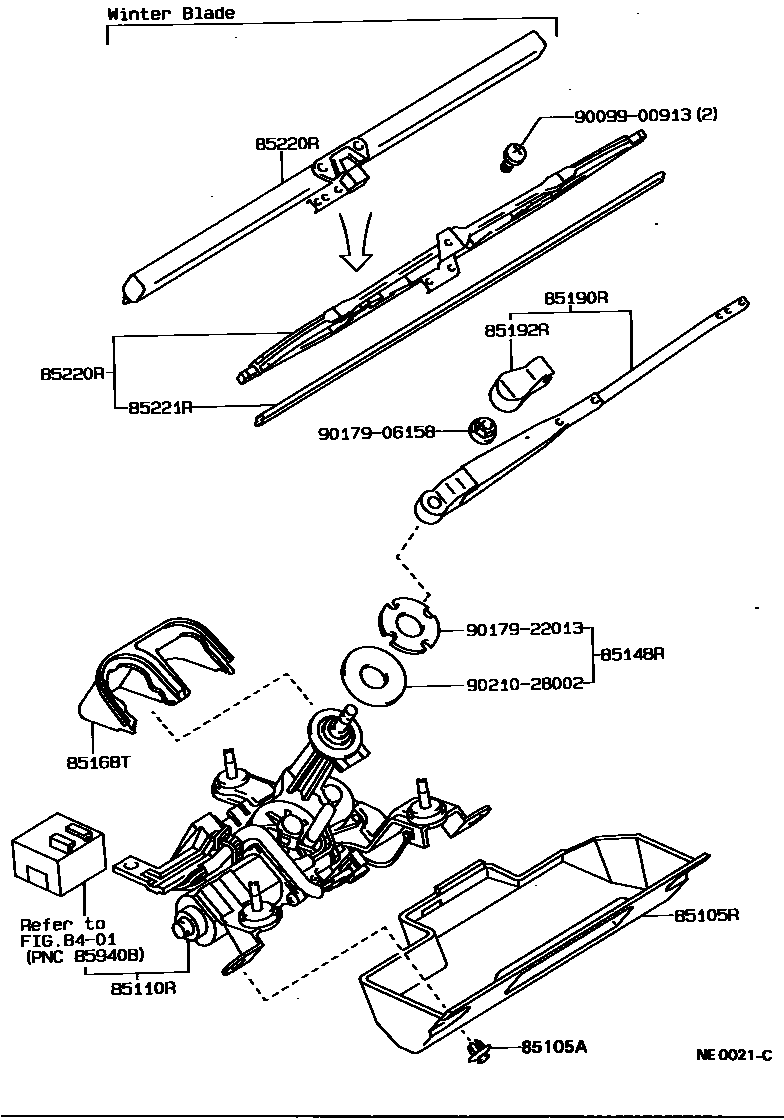

REAR WIPER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85105ACLIP, REAR WIPER PROTECTOR

main90467-07029-03iAE92..GTAPX,GTV,GTZ198705-199106

GRAY,TRIM1#,8#

85105RPROTECTOR, REAR WIPER

main85105-12020-03iAE92..GTAPX,GTV,GTZ198705-199106

GRAY,TRIM1#,8#

85110RMOTOR ASSY, REAR WIPER

main85110-12740iAE92..GTAPX,GTV,GTZ198705-199106

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85148-12020iAE92..GTAPX,GTV,GTZ198705-199106

85168TCOVER, WIPER LINK

main85168-12200-03iAE92..GTAPX,GTV,GTZ198705-199106

SHADOW GRAY,TRIM1#

main85168-12200-04iAE92..GTAPX,GTV,GTZ198705-199106

DARK BLUE,TRIM8#

85190RARM ASSY, REAR WIPER

main85190-1A030iAE92..GTAPX,GTV,GTZ198705-199003

main85190-1A031iAE92..GTAPX,GTZ199003-199106

85192RCOVER, REAR WIPER ARM

main85192-13060iAE92..GTAPX,GTV,GTZ198705-199106

85220RBLADE ASSY, REAR WIPER

main85220-16440iAE92..GTAPX,GTZ198705-199003

main85220-16441iAE92..SPC199003-199106

main85220-16580iAE92..GTV,GTZ198705-199003

main85291-16010iAE92..GTAPX199003-199106

85221RBLADE, REAR WIPER

main85221-16080iAE92..GTAPX,GTV,GTZ198705-199106

9009900913

main90099-00913

9017906158

main90179-06158

9017922013

main90179-22013

9021028002

main90210-28002

14 parts on this diagram · 1 diagram in section
