WINDSHIELD WIPER

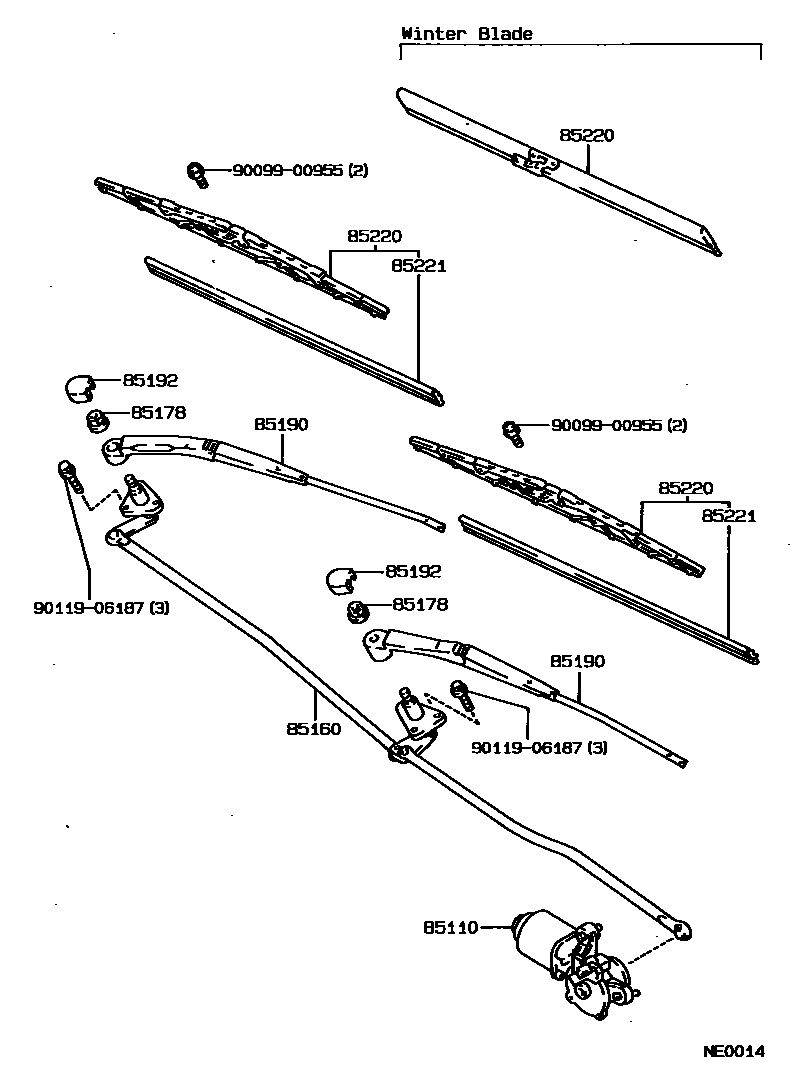

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12620i198705-198808

main85110-12621i198808-198905

main85110-12622i198905-199106

main85110-12680i198705-198801

main85110-12681i198801-198905

main85110-12682i198905-199106

85160LINK ASSY, WINDSHIELD WIPER

main85160-12560i198705-198905

main85160-12590i198705-198905

main85160-12590i198905-199106

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113i198705-199106

85190ARM ASSY, WINDSHIELD WIPER

main85190-12890i198705-198912

main85190-12891i198912-199106

main85210-12260i198705-198912

main85210-12261i198912-199106

85192COVER, WINDSHIELD WIPER ARM

main85192-12800i198705-199106

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16320i198705-198903

main85220-16580i198905-199003

LH,WINTER BLADE

main85220-16580i198705-198905

main85220-1A120i198903-198912

main85220-1A121i198912-199106

main85220-32540i198705-198903

main85220-32550i198905-199003

RH,WINTER BLADE

main85220-32550i198705-198905

main85220-3A210i198903-198912

main85220-3A211i198912-199106

main85291-16010i199003-199106

LH,WINTER BLADE

main85291-32030i199003-199106

RH,WINTER BLADE

85221BLADE, WINDSHIELD WIPER

main85213-12280i199012-199106

main85213-17040i199005-199012

main85221-12200i198904-199005

main85221-12240i198904-199005

main85221-24040i198705-198904

main85221-30120i198705-198904

main85223-12690i199012-199106

main85223-22700i199005-199012

9009900955

main90099-00955

9011906187

main90119-06187

9 parts on this diagram · 1 diagram in section
