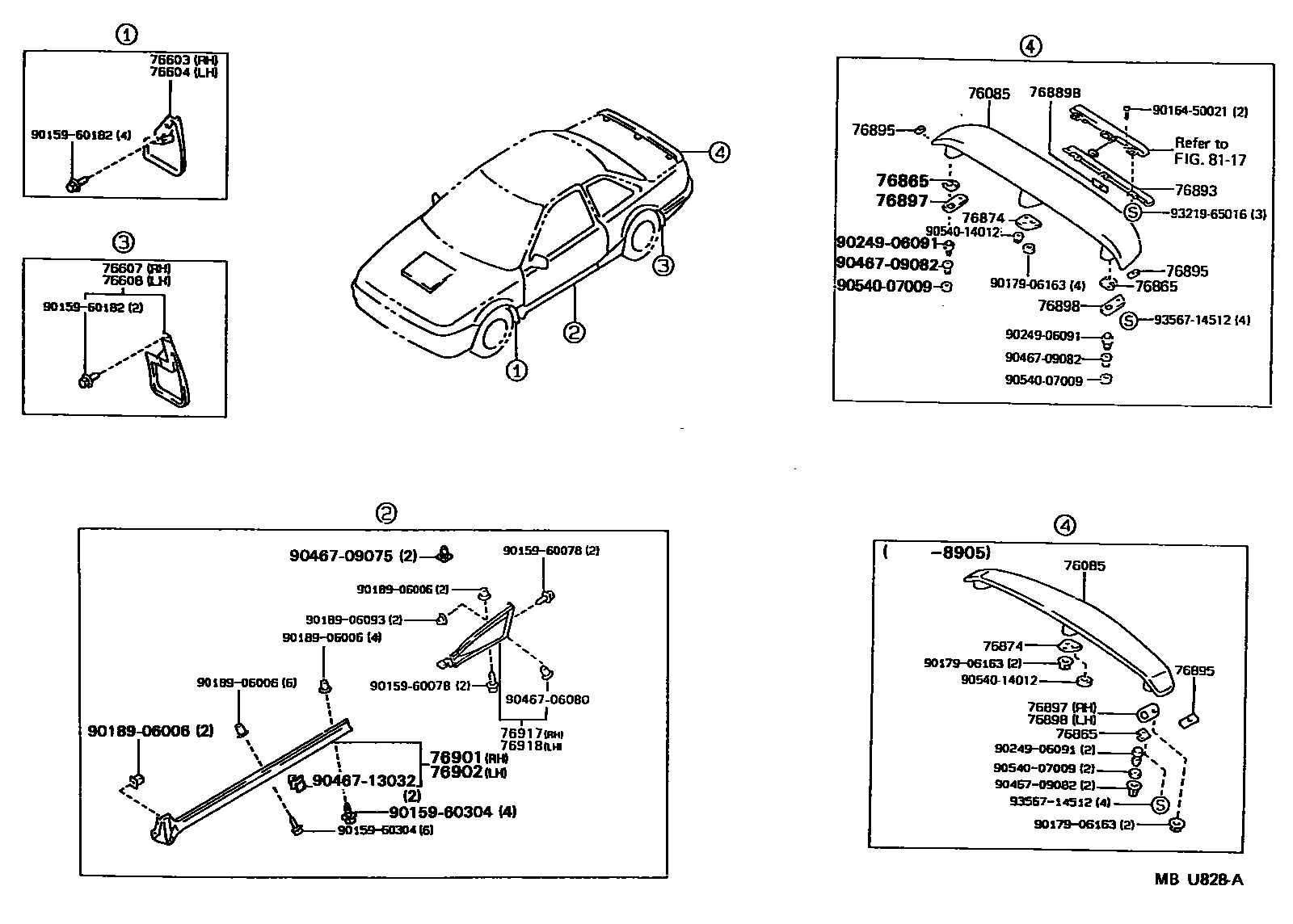

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-12902iAE9#..GTAPX,GTV,GTZ,XI198705-198905

main76085-12908iAE9#..GT,GTAPX,GTZ,XS198905-199106

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12070iAE9#..G,GTV,L,XI,XS198705-199106

main76621-12080-02iAE9#..G,GT,GTAPX,XS198705-199106

SUPER RED 2,3E5

sub76621-12H00

main76621-12080-03iAE9#..G,GTAPX,GTV,XI198705-198905

GRAY M,168

sub76621-12H00

main76621-12080-04iAE9#..G,GTV,XI198708-198805

BLUE M,8D7

sub76621-12H00

main76621-12080-05iAE9#..G,GTAPX,GTV,XI198705-198905

BEIGE M,28E

sub76621-12H00

main76621-12080-07iAE92..EFI198905-199106

GRAYISH GREEN M,6K6

sub76621-12H00

main76621-12080-08iAE9#..G,GT,GTAPX,XS198705-199106

SUPER WHITE 2,040

sub76621-12H00

main76621-12080-11iAE92..EFI198905-199106

BLACK M,205

sub76621-12H00

main76621-12080-13iAE9#..G,GTAPX,GTV,XI198705-198905

SILVER M,23E

sub76621-12H00

main76621-12080-17iAE9#..G,GT,GTAPX,XS198905-199106

LIGHT OLIVEISH GRAY,23M

sub76621-12H00

main76621-12080-24iAE9#..G,GT,GTAPX,XS198905-199106

DARK BLUE MICA M,8E9

sub76621-12H00

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12070iAE9#..G,GTV,L,XI,XS198705-199106

main76622-12080-02iAE9#..G,GTAPX,GTV,XI198705-199106

SUPER RED 2,3E5

sub76621-12H00

main76622-12080-03iAE9#..G,GTAPX,GTV,XI198705-198905

GRAY M,168

sub76621-12H00

main76622-12080-04iAE9#..G,GTV,XI198708-198805

BLUE M,8D7

sub76621-12H00

main76622-12080-05iAE9#..G,GTAPX,GTV,XI198705-198905

BEIGE M,28E

sub76621-12H00

main76622-12080-07iAE92..EFI198905-199106

GRAYISH GREEN M,6K6

sub76621-12H00

main76622-12080-08iAE9#..G,GTAPX,GTV,XI198705-199106

SUPER WHITE 2,040

sub76621-12H00

main76622-12080-11iAE92..EFI198905-199106

BLACK M,205

sub76621-12H00

main76622-12080-13iAE9#..G,GTAPX,GTV,XI198705-198905

SILVER M,23E

sub76621-12H00

main76622-12080-17iAE9#..G,GT,GTAPX,XS198905-199106

LIGHT OLIVEISH GRAY,23M

sub76621-12H00

main76622-12080-24iAE9#..G,GT,GTAPX,XS198905-199106

DARK BLUE MICA M,8E9

sub76621-12H00

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19465iAE9#..G,GTV,L,XI,XS198705-199106

main76607-19475-02iAE9#..G,GTAPX,GTV,XI198705-199106

SURER RED 2,3E5

main76607-19475-03iAE9#..G,GTAPX,GTV,XI198705-198905

GRAY M,168

main76607-19475-04iAE9#..G,GTV,XI198708-198805

BLUE M,8D7

main76607-19475-05iAE9#..G,GTAPX,GTV,XI198705-198905

BEIGE M,28E

main76607-19475-07iAE92..EFI198905-199106

GRAYISH GREEN M,6K6

main76607-19475-08iAE9#..G,GTAPX,GTV,XI198705-199106

SURER WHITE 2,040

main76607-19475-11iAE92..EFI198905-199106

BLACK M,205

main76607-19475-13iAE9#..G,GTAPX,GTV,XI198705-198905

SILVER M,23E

main76607-19475-17iAE9#..G,GT,GTAPX,XS198905-199106

LIGHT OLIVEISH GRAY,23M

main76607-19475-24iAE9#..G,GT,GTAPX,XS198905-199106

DARK BLUE MICA M,8E9

main76607-19495-01iAE92..SPC198905-199106

BLACK M,205

main76607-19495-02iAE92..SPC198705-199106

SUPER RED 2,3E5

main76607-19495-03iAE92..SPC198705-198905

GRAY M,168

main76607-19495-04iAE92..SPC198905-199106

DARK BLUE MICA M,8E9

main76607-19495-05iAE92..SPC198705-198905

BEIGE M,28E

main76607-19495-07iAE92..SPC198905-199106

GRAYISH GREEN M,6K6

main76607-19495-08iAE92..SPC198705-199106

SURER WHITE 2,040

main76607-19495-13iAE92..SPC198705-198905

SILVER M,23E

main76607-19495-17iAE92..SPC198905-199106

LIGHT OLIVEISH GRAY,23M

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19465iAE9#..G,GTV,L,XI,XS198705-199106

main76608-19475-02iAE9#..G,GTAPX,GTV,XI198705-199106

SUPER RED 2,3E5

main76608-19475-03iAE9#..G,GTAPX,GTV,XI198705-198905

GRAY M,168

main76608-19475-04iAE9#..G,GTV,XI198708-198805

BLUE M,8D7

main76608-19475-05iAE9#..G,GTAPX,GTV,XI198705-198905

BEIGE M,28E

main76608-19475-07iAE92..EFI198905-199106

GRAYISH GREEN M,6K6

main76608-19475-08iAE9#..G,GT,GTAPX,XS198705-199106

SUPER WHITE 2,040

main76608-19475-11iAE92..EFI198905-199106

BLACK M,205

main76608-19475-13iAE9#..G,GTAPX,GTV,XI198705-198905

SILVER M,23E

main76608-19475-17iAE9#..G,GT,GTAPX,XS198905-199106

LIGHT OLIVEISH GRAY,23M

main76608-19475-24iAE9#..G,GT,GTAPX,XS198905-199106

DARK BLUE MICA M,8E9

main76608-19495-01iAE92..SPC198905-199106

BLACK M,205

main76608-19495-02iAE92..SPC198705-199106

SUPER RED 2,3E5

main76608-19495-03iAE92..SPC198708-198905

GRAY M,168

main76608-19495-04iAE92..SPC198905-199106

DARK BLUE MICA M,8E9

main76608-19495-05iAE92..SPC198705-198905

BEIGE M,28E

main76608-19495-07iAE92..SPC198905-199106

GRAYISH GREEN M,6K6

main76608-19495-08iAE92..SPC198705-199106

SUPER WHITE 2,040

main76608-19495-13iAE92..SPC198705-198905

SILVER M,23E

main76608-19495-17iAE92..SPC198905-199106

LIGHT OLIVEISH GRAY,23M

76865RETAINER, REAR SPOILER, NO.1

main76865-12110iAE9#..GTAPX,GTV,GTZ,XI198705-199106

76874PROTECTOR, REAR SPOILER, NO.3

main76874-12050iAE9#..GTAPX,GTV,GTZ,XI198705-199106

76889BSEAL, REAR SPOILER, NO.1

main76889-12020iAE9#..GT,GTAPX,GTZ,XS198905-199106

76893COVER, REAR SPOILER, NO.1

main76893-12900iAE9#..GT,GTAPX,GTZ,XS198905-199106

76895PROTECTOR, REAR SPOILER, NO.5

main76895-12020iAE9#..GTAPX,GTV,GTZ,XI198705-199106

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-12010iAE9#..GT,GTAPX,GTZ,XS198705-199106

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-12010iAE9#..GTAPX,GTV,GTZ,XI198705-199106

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-12020-02iAE9#..GTAPX,GTV,GTZ,XI198705-199106

SUPER RED 2,3E5

main76901-12020-03iAE9#..GTAPX,GTV,GTZ,XI198705-198905

GRAY M,168

main76901-12020-05iAE9#..GTAPX,GTV,GTZ,XI198705-198905

BEIGE M,28E

main76901-12020-07iAE92198905-199106

GRAYISH GREEN M,6K6

main76901-12020-08iAE9#..GTAPX,GTV,GTZ,XI198705-199106

SUPER WHITE 2,040

main76901-12020-11iAE92198905-199106

BLACK M,205

main76901-12020-13iAE9#..GTAPX,GTV,GTZ,XI198705-198905

SILVER M,23E

main76901-12020-14iAE9#..GT,GTAPX,GTZ,XS198905-199106

DARK BLUE MICA M,8E9

main76901-12020-17iAE9#..GT,GTAPX,GTZ,XS198905-199106

LIGHT OLIVEISH GRAY,23M

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-12020-02iAE9#..GTAPX,GTV,GTZ,XI198705-199106

SUPER RED 2,3E5

main76902-12020-03iAE9#..GTAPX,GTV,GTZ,XI198705-198905

GRAY M,168

main76902-12020-05iAE9#..GTAPX,GTV,GTZ,XI198705-198905

BEIGE M,28E

main76902-12020-07iAE92198905-199106

GRAYISH GREEN M,6K6

main76902-12020-08iAE9#..GT,GTAPX,GTZ,XS198705-199106

SUPER WHITE 2,040

main76902-12020-11iAE92198905-199106

BLACK M,205

main76902-12020-13iAE9#..GTAPX,GTV,GTZ,XI198705-198905

SILVER M,23E

main76902-12020-14iAE9#..GT,GTAPX,GTZ,XS198905-199106

DARK BLUE MICA M,8E9

main76902-12020-17iAE9#..GT,GTAPX,GTZ,XS198905-199106

LIGHT OLIVEISH GRAY,23M

76917MUDGUARD, SIDE, REAR RH

main76917-12010-02iAE9#..GT,GTAPX,GTZ,XS198705-199106

SUPER RED 2,3E5

main76917-12010-03iAE9#..GTAPX,GTV,GTZ,XI198705-198905

GRAY M,168

main76917-12010-05iAE9#..GTAPX,GTV,GTZ,XI198705-198905

BEIGE M,28E

main76917-12010-07iAE92198905-199106

GRAYISH GREEN M,6K6

main76917-12010-08iAE9#..GT,GTAPX,GTZ,XS198705-199106

SUPER WHITE 2,040

main76917-12010-11iAE92198905-199106

BLACK M,205

main76917-12010-13iAE9#..GTAPX,GTV,GTZ,XI198705-198905

SILVER M,23E

main76917-12010-14iAE9#..GT,GTAPX,GTZ,XS198905-199106

DARK BLUE MICA M,8E9

main76917-12010-17iAE9#..GT,GTAPX,GTZ,XS198905-199106

LIGHT OLIVEISH GRAY,23M

76918MUDGUARD, SIDE, REAR LH

main76918-12010-02iAE9#..GT,GTAPX,GTZ,XS198705-199106

SUPER RED 2,3E5

main76918-12010-03iAE9#..GTAPX,GTV,GTZ,XI198705-198905

GRAY M,168

main76918-12010-05iAE9#..GTAPX,GTV,GTZ,XI198705-198905

BEIGE M,28E

main76918-12010-07iAE92198905-199106

GRAYISH GREEN M,6K6

main76918-12010-08iAE9#..GTAPX,GTV,GTZ,XI198705-199106

SUPER WHITE 2,040

main76918-12010-11iAE92198905-199106

BLACK M,205

main76918-12010-13iAE9#..GTAPX,GTV,GTZ,XI198705-198905

SILVER M,23E

main76918-12010-14iAE9#..GT,GTAPX,GTZ,XS198905-199106

DARK BLUE MICA,8E9

main76918-12010-17iAE9#..GT,GTAPX,GTZ,XS198905-199106

LIGHT OLIVEISH GRAY,23M

8117

9015960078

main90159-60078

9015960182

main90159-60182

9015960304

main90159-60304

9016450021

main90164-50021

9017906163

main90179-06163

9018906006

main90189-06006

9018906093

main90189-06093

9024906091

main90249-06091

9046706080

main90467-06080

9046709075

main90467-09075

9046709082

main90467-09082

9046713032

main90467-13032

9054007009

main90540-07009

9054014012

main90540-14012

9321965016

main93219-65016

9356714512

main93567-14512

33 parts on this diagram · 1 diagram in section
