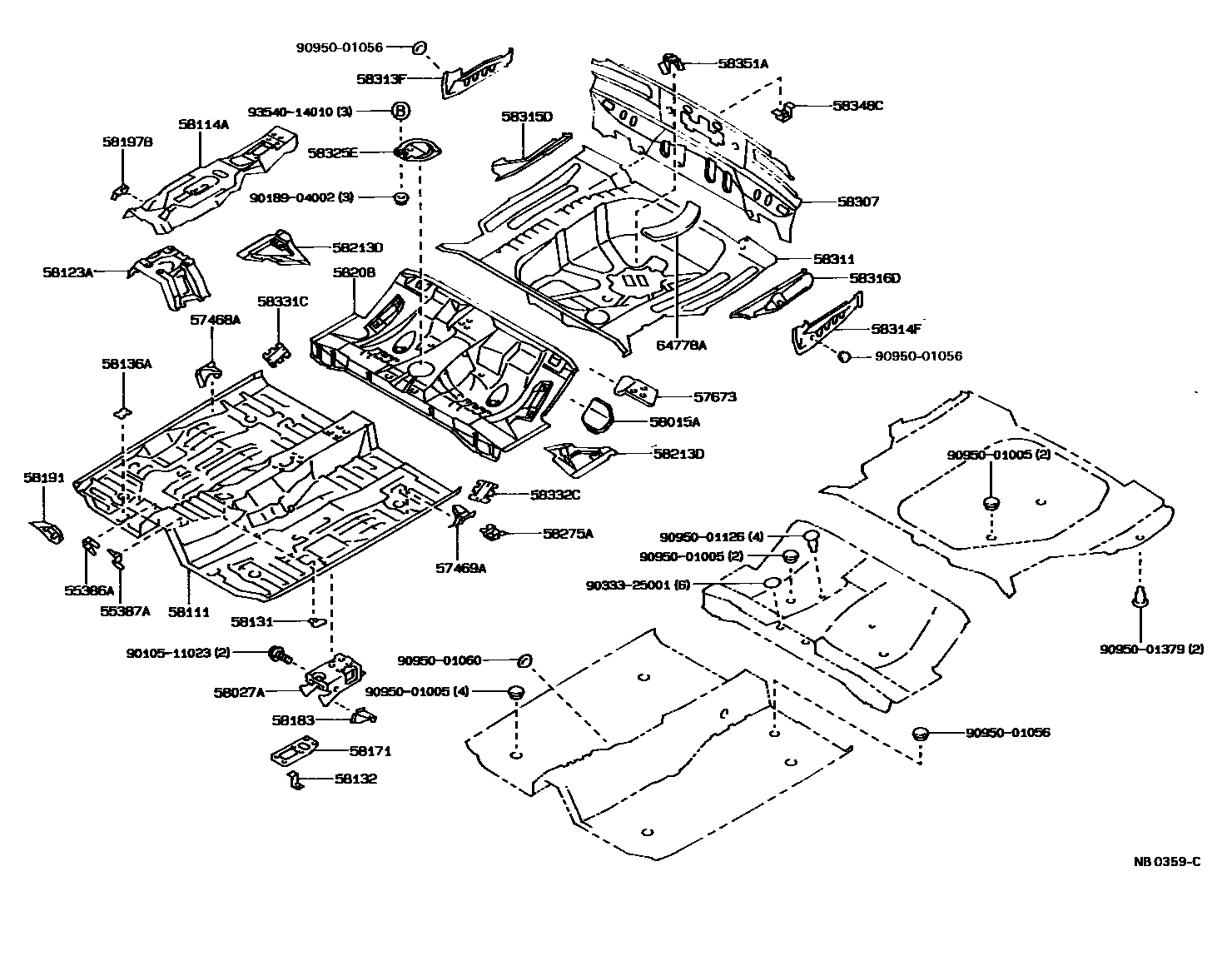

FLOOR PAN & LOWER BACK PANEL
55386ABRACKET, COMPUTER MOUNTING, NO.1
55387ABRACKET, COMPUTER MOUNTING, NO.2
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
58191FOOTREST, FRONT FLOOR
58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58208PAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH
58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH
58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58351ABRACKET, SPARE WHEEL CARRIER
64778APROTECTOR, SPARE WHEEL
9010511023
9018904002
9033325001
9095001005
9095001056
9095001060
9095001126
9095001379
9354014010
41 parts on this diagram · 1 diagram in section
