RADIATOR GRILLE

53131ADOOR, HEADLAMP, RH

main53131-12370iAE9#198705-199106

53132ADOOR, HEADLAMP, LH

main53132-12280iAE9#198705-199106

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-12080iAE9#198705-198905

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-12150iAE9#198705-198905

53181COVER, HEADLAMP, RH

main53181-12040iAE9#198705-199106

53182COVER, HEADLAMP, LH

main53182-12040iAE9#198705-199106

54110BRACKET ASSY, RETRACTABLE HEADLAMP, RH

main54110-12020iAE9#198705-198908

sub54110-12021

main54110-12021iAE9#198908-199106

54119STOP, RETRACTABLE HEADLAMP LINK

main54119-14010iAE9#198705-199106

54120BRACKET ASSY, RETRACTABLE HEADLAMP, LH

main54120-12020iAE9#198705-198908

sub54120-12021

main54120-12021iAE9#198908-199106

54130ROD ASSY, RETRACTABLE HEADLAMP

main54130-12020iAE9#198705-198908

sub54130-12021

main54130-12021iAE9#198908-199106

9015960291

main90159-60291

9016440021

main90164-40021

9016740027

main90167-40027

9017906074

main90179-06074

9018904094

main90189-04094

9054108137

main90541-08137

9165140614

main91651-40614

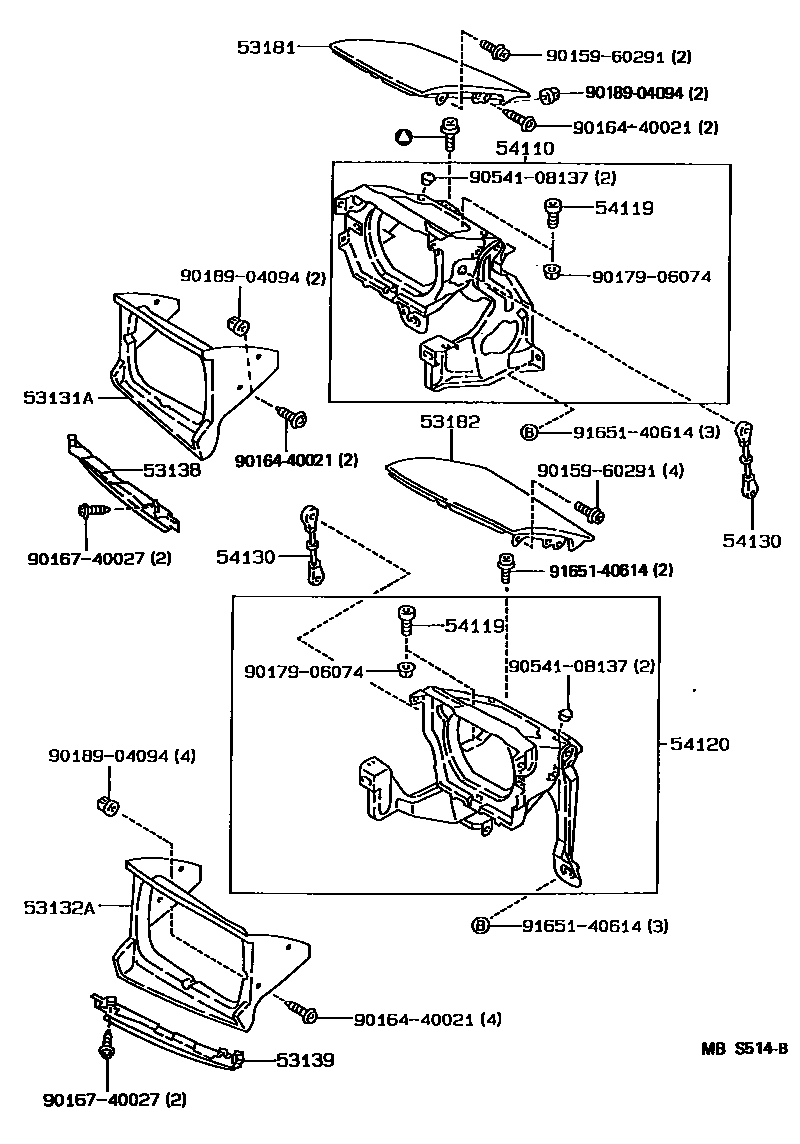

17 parts on this diagram · 1 diagram in section
