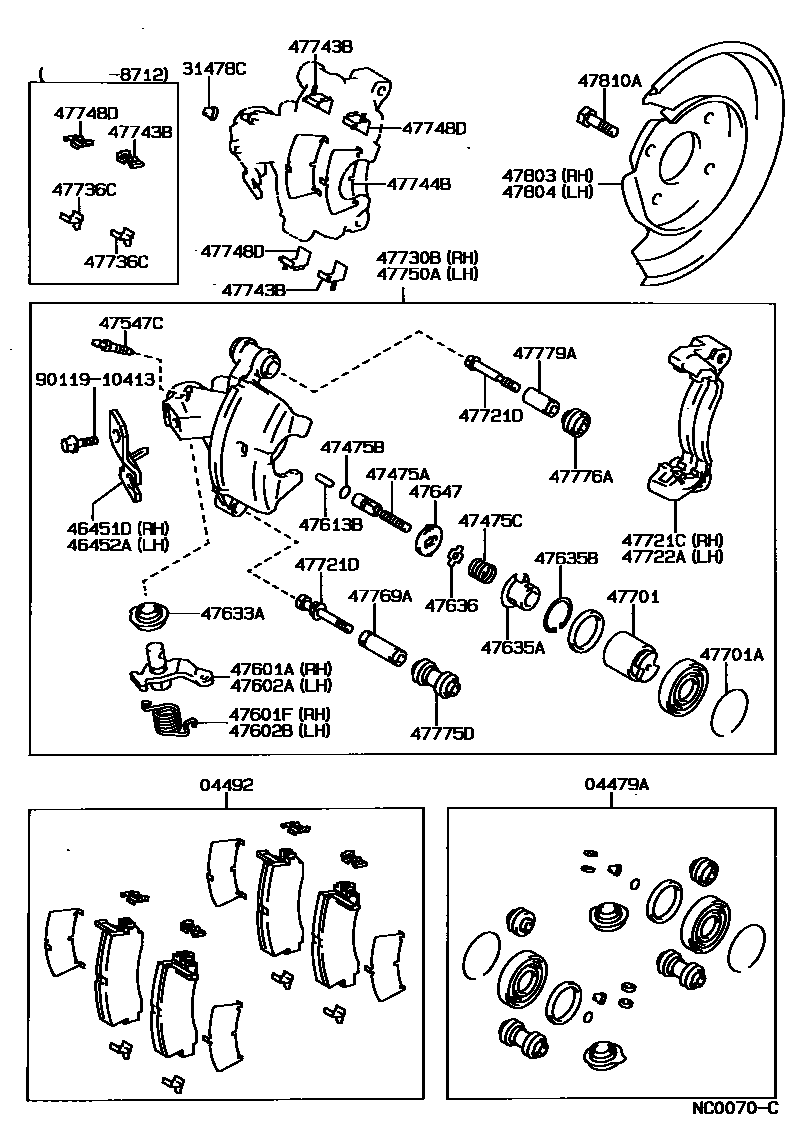

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12130iAE92..GTAPX,GTV,GTZ¥3,290198705-199106

sub04479-12190¥3,290

04492PAD KIT, DISC BRAKE, REAR

main04492-12040iAE92..GTAPX,GTV,GTZ¥9,300198705-198712

sub04492-12041¥8,400

main04492-12041iAE92..GTAPX,GTV,GTZ¥8,400198712-198805

sub04492-12042¥8,400

main04492-12042iAE92..GTAPX,GTV,GTZ¥8,400198805-198905

sub04466-12031¥8,800

main04492-12060iAE9#..GT,GTAPX,GTZ,XS¥9,200198905-199102

sub04466-12070¥8,800

main04492-12080iAE9#..GT,GTAPX,GTZ,XS¥9,700199102-199106

sub04466-12080¥8,800

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAE92..GTAPX,GTV,GTZ¥160198705-199106

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-12030iAE92..GTAPX,GTV,GTZ¥970198705-199106

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-12020iAE92..GTAPX,GTV,GTZ¥970198705-199106

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iAE92..GTAPX,GTV,GTZ¥1,300198705-199106

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iAE92..GTAPX,GTV,GTZ¥260198705-199106

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iAE92..GTAPX,GTV,GTZ¥240198705-199106

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAE92..GTAPX,GTV,GTZ¥200198705-199106

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12020iAE92..GTAPX,GTV,GTZ¥1,810198705-199106

sub47601-12030¥1,030

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32021iAE92..GTAPX,GTV,GTZ¥380198705-199106

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12020iAE92..GTAPX,GTV,GTZ¥1,810198705-199106

sub47602-12030¥1,030

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32020iAE92..GTAPX,GTV,GTZ¥380198705-199106

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iAE92..GTAPX,GTV,GTZ¥610198705-199106

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iAE92..GTAPX,GTV,GTZ¥880198705-199106

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12020iAE92..GTAPX,GTV,GTZ¥550198705-199106

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-32002iAE92..GTAPX,GTV,GTZ¥170198705-199106

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iAE92..GTAPX,GTV,GTZ¥390198705-199106

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12010iAE92..GTAPX,GTV,GTZ¥570198705-199106

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12030iAE92..GTAPX,GTV,GTZ¥5,800198705-199106

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-43004iAE9#..GT,GTAPX,GTZ,XS¥210198705-199106

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-12140iAE92..GTAPX,GTV,GTZ¥12,100198705-198905

main47721-12150iAE9#..GT,GTAPX,GTZ,XS¥8,000198905-199106

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098iAE9#..GT,GTAPX,GTZ,XS¥500198705-199106

main90119-08431iAE92..GTAPX,GTV,GTZ¥220198705-199106

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-12140iAE92..GTAPX,GTV,GTZ¥12,100198705-198905

main47721-12150iAE9#..GT,GTAPX,GTZ,XS¥8,000198905-199106

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12330iAE92..GTAPX,GTV,GTZ¥40,800198705-198905

main47730-12380iAE9#..GT,GTAPX,GTZ,XS¥41,600198905-199106

47736CPLATE, REAR DISC BRAKE PAD GUIDE

main47736-12030iAE92..GTAPX,GTV,GTZ¥190198705-198712

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12030iAE92..GTAPX,GTV,GTZ¥370198705-198712

sub47743-12060¥500

main47743-12060iAE92..GTAPX,GTV,GTZ¥500198712-199106

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12070iAE92..GTAPX,GTV,GTZ¥980198705-198805

sub47744-12071¥930

main47744-12071iAE92..GTAPX,GTV,GTZ¥930198805-198905

sub47744-12080¥260

main47744-12080iAE9#..GT,GTAPX,GTZ,XS¥260198905-199106

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12090iAE92..GTAPX,GTV,GTZ¥370198705-198712

sub47748-12110¥500

main47748-12110iAE92..GTAPX,GTV,GTZ¥500198712-199106

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12330iAE92..GTAPX,GTV,GTZ¥40,800198705-198905

main47750-12380iAE9#..GT,GTAPX,GTZ,XS¥41,600198905-199106

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iAE92..GTAPX,GTV,GTZ¥680198705-199106

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iAE92..GTAPX,GTV,GTZ¥780198705-199106

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iAE92..GTAPX,GTV,GTZ¥390198705-199106

sub47776-12020¥80

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iAE92..GTAPX,GTV,GTZ¥870198705-199106

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12040iAE92..GTAPX,GTV,GTZ¥1,560198705-199106

main47803-12050iAE91..EFIS¥1,550198905-199106

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12040iAE92..GTAPX,GTV,GTZ¥1,560198705-199106

main47804-12050iAE91..EFIS¥1,550198905-199106

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-10089iAE92..GTAPX,GTV,GTZ¥260198705-198707

main90105-10167iAE92..GTAPX,GTV,GTZ¥210198707-199106

9011910413

main90119-10413¥200

38 parts on this diagram · 2 diagrams in section
