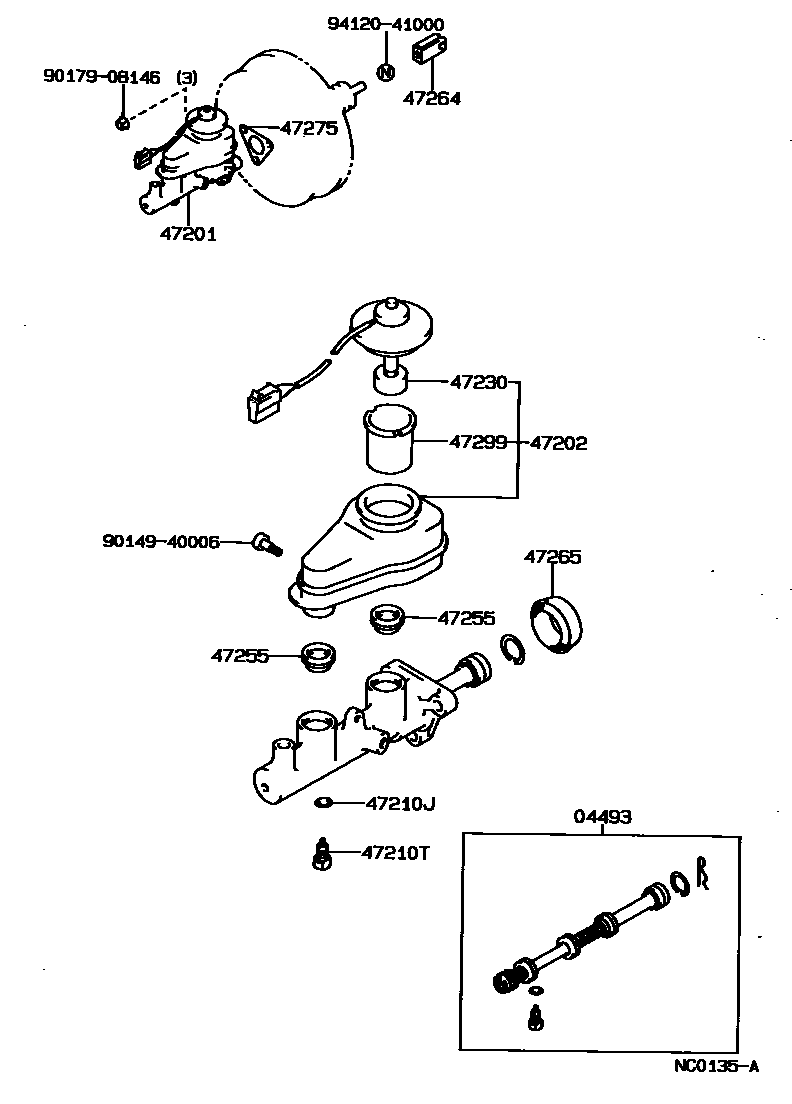

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-12170iAE9#..GT,GTAPX,GTZ,XS198905-199106

main04493-16030iAE91198705-199106

sub04493-12180

main04493-16040iAE92..EFI198705-199106

sub04493-20210

main04493-32040iAE92..SPC198705-199106

sub04493-33030

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12530iAE91198705-198905

main47201-12540iAE92..EFI198705-199106

main47201-12650iAE9#..GT,GTAPX,GTZ,XS198905-199106

sub47201-13020

main47201-12670iAE91198905-199106

main47201-32140iAE92..SPC198705-199106

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-32070iAE9#198705-199106

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE9#198705-199106

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE9#198705-199106

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20110iAE9#198705-199106

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAE9#198705-199106

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAE9#198705-199106

47265BOOT, MASTER CYLINDER

main47265-20050iAE9#198705-199106

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAE91198705-198905

main47275-32010iAE9#..(G,GT,GTAPX,GTV,GTZ,L,XS)..(EFI,EFIS,SPC)198705-199106

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAE9#198705-199106

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

14 parts on this diagram · 1 diagram in section
