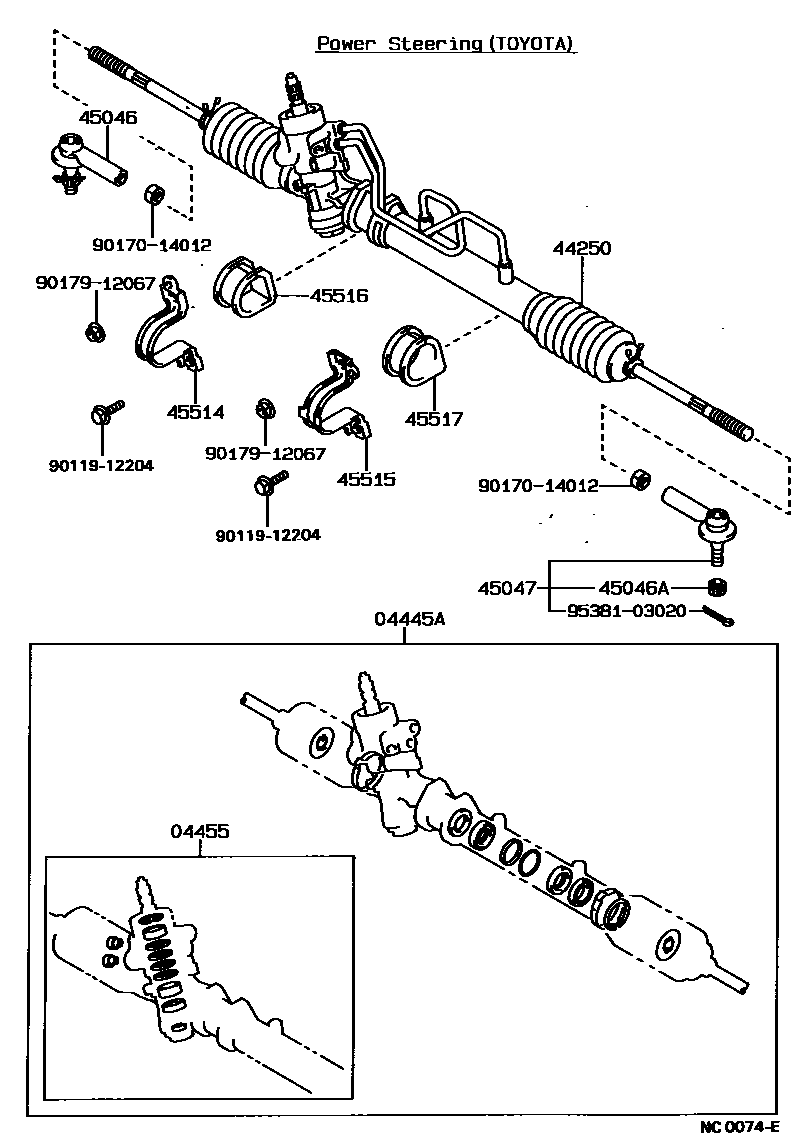

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0005 1 0007 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12050iAE91199001-199006

sub04445-12051

main04445-12050iAE92198705-199006

sub04445-12051

main04445-12051iAE92199006-199106

main04445-12060iAE91..3FC198705-198812

sub04445-12061

sub04445-12120

main04445-12061iAE91..(G,L,XS)..(EFI,EFIS)198812-199106

main04445-12061iAE91..5F..L198812-198905

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12030iAE92198705-199006

sub04455-12031

main04455-12030iAE91199001-199006

sub04455-12031

main04455-12031iAE91199006-199106

main04455-12040iAE91..3FC198705-198812

sub04455-12041

sub04455-12100

main04455-12041iAE91..(G,L,XS)..(EFI,EFIS)198812-199106

main04455-12041iAE91..3FC198812-198905

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12180iAE91199001-199106

sub44250-12181

sub45517-12111

main44250-12200iAE92..EFI198705-199103

sub44250-12201

sub45517-12111

main44250-12201iAE92..EFI199103-199106

main44250-12210iAE92..SPC198705-199103

sub44250-12211

sub45517-12111

main44250-12220iAE91..3FC198705-199103

sub44250-12221

sub45517-12111

main44250-12221iAE91199103-199106

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE9#198705-199106

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE9#198705-199106

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE9#198705-199106

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12070iAE91..L198705-199106

main45514-12080iAE9#..G,GT,GTV,L198705-198905

main45514-12081iAE9#..G,GT198905-199106

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12140iAE91..L198705-199106

main45515-12160iAE9#..G,GT,GTV,L198705-198905

sub45515-12161

main45515-12161iAE9#..G,GT198905-199106

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12050iAE9#..G,GT198905-199106

main45516-20010iAE9#198705-198905

main45516-20010iAE9#..GTAPX,GTZ,L,XS198905-199106

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12110iAE91..3FC198705-199106

main45517-12120iAE91..CBR;AE9#..(G,GT,GTV)..EFI198705-199106

9011912204

main90119-12204

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
