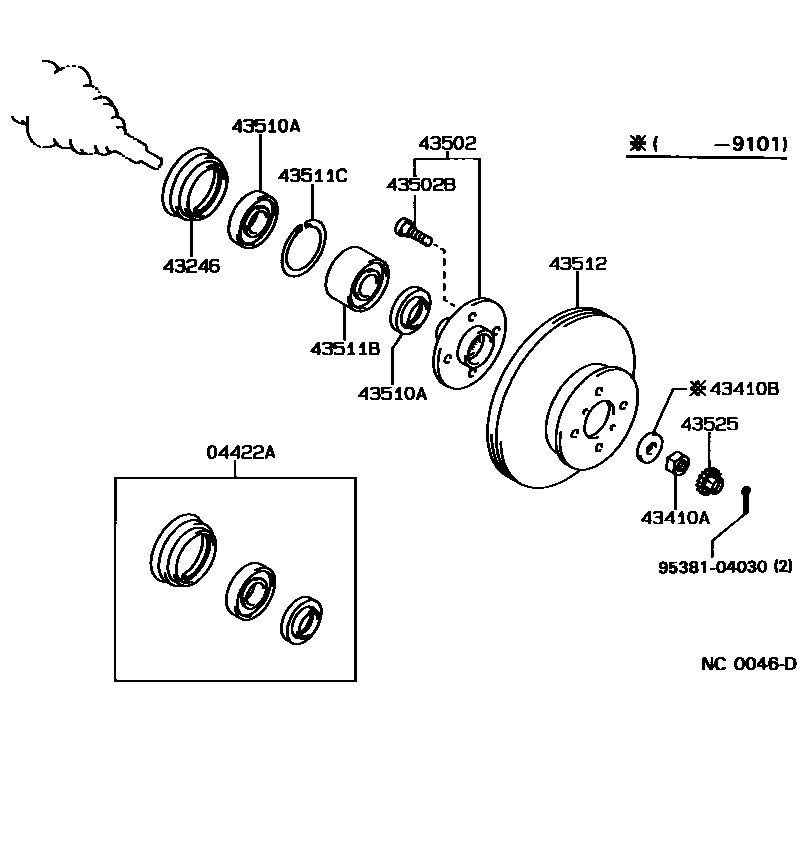

FRONT AXLE HUB
04422ASEAL KIT, FRONT AXLE OIL
43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1
43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)
43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)
43502BBOLT, HUB (FOR FRONT AXLE)
43510ASEAL, OIL (FOR FRONT AXLE HUB)
43511BBEARING (FOR FRONT AXLE HUB)
sub90363-38006
43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)
43525CAP, FRONT WHEEL ADJUSTING LOCK
9538104030
main95381-04030
12 parts on this diagram · 1 diagram in section
