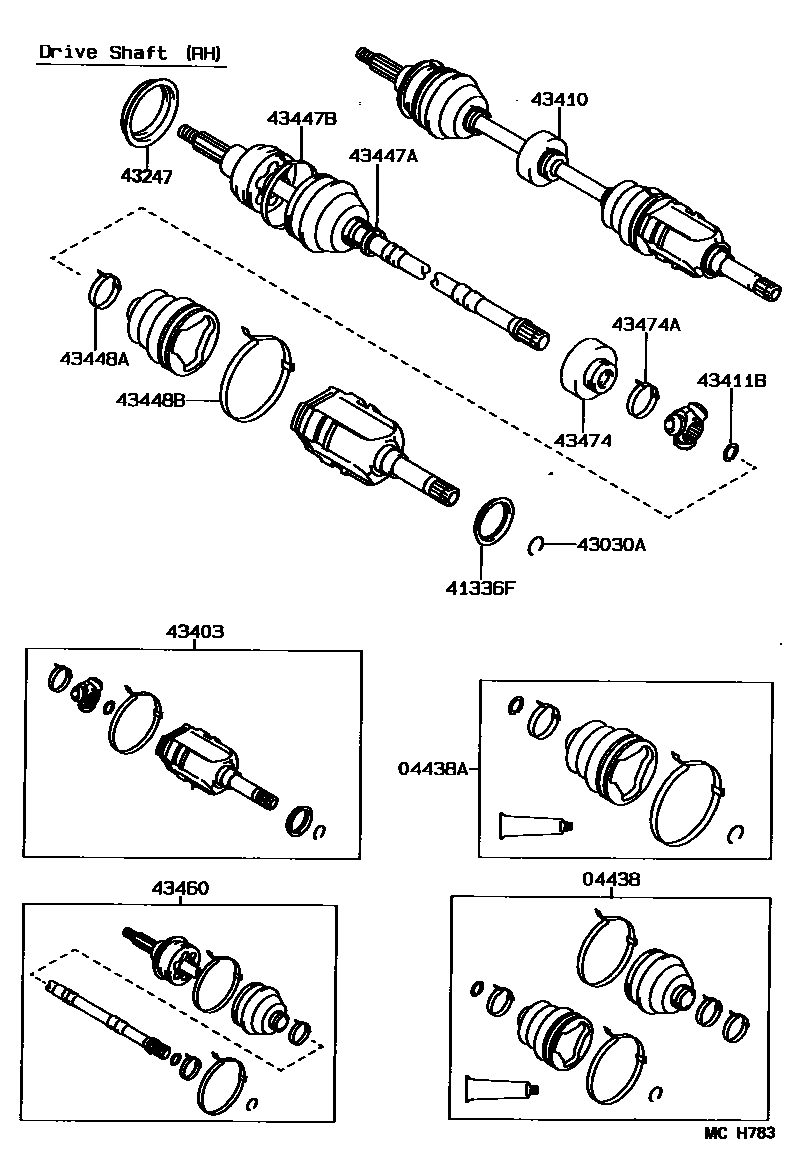

FRONT DRIVE SHAFT

0001 1 0005 1 0009 1 0010 1 0011 1 0012 1 0013 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12040iAE92..5F..EFI198705-198709

main04438-12080iAE91;AE92..4FC198905-199002

sub04438-12170

main04438-12080iAE91;AE92..4FC198705-198905

sub04438-12170

main04438-12100iAE92..SPC198705-199106

main04438-12120iAE92..5F..EFI198709-199002

sub04438-12190

main04438-12170iAE91;AE92..4FC199002-199009

sub04438-12171

main04438-12171iAE91;AE92..4FC199009-199106

sub04438-12370

main04438-12190iAE92..5F..EFI199002-199009

main04438-12191iAE92..5F..EFI199009-199106

sub04438-20110

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12060iAE92..5F..EFI198705-198709

sub04438-17031

main04438-12070iAE91;AE92..4FC198705-199002

sub04438-12160

main04438-12070iAE92..4FC;AE91..EFIS198905-199002

sub04438-12160

main04438-12090iAE92..SPC198705-199106

main04438-12160iAE92..5F..EFI199002-199009

sub04438-12161

main04438-12161iAE91;AE92..4FC199009-199106

sub04438-12410

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iAE91;AE92..4FC198705-199106

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12010iAE92..SPC198705-199106

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iAE91;AE92..4FC198705-199106

main90521-81001iAE92..SPC198705-199106

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-12010iAE9#..GT,GTAPX,GTZ,XS198905-199106

main43247-32011iAE9#198905-199106

sub43247-33010

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE9#..EFI,EFIS198909-199106

main43403-19055iAE91;AE92..4FC198705-198709

sub43403-19085

main43403-19085iAE9#..CBR,EFI,EFIS198709-198909

main43403-39025iAE92..5F..EFI198705-198709

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12130iAE91;AE92..4FC198705-199101

main43410-12131iAE91;AE92..4FC199101-199106

main43410-12140iAE92..5F..EFI198705-198709

sub43410-12141

sub43525-20030

sub90179-22020

main43410-12160iAE92..SPC198705-199101

sub43410-12161

sub43525-20030

sub90179-22020

main43410-12161iAE92..SPC199101-199106

sub43410-12162

sub90178-22001

main43410-12170iAE92..5F..EFI198709-199101

sub43410-12171

sub43525-20030

sub90179-22020

main43410-12171iAE92..5F..EFI199101-199106

sub43410-12172

sub90178-22001

main43410-12190iAE92..4FC;AE91..EFIS198905-199101

sub43410-12191

sub43525-20030

sub90179-22020

main43410-12191iAE92..4FC;AE91..EFIS199101-199106

sub43410-12192

sub90178-22001

main43410-12200iAE92..5F..EFI198905-199101

sub43410-12201

sub43525-20030

sub90179-22020

main43410-12201iAE92..5F..EFI199101-199106

sub43410-12202

sub90178-22001

main43410-12210iAE92..SPC198905-199101

sub43410-12211

sub43525-20030

sub90179-22020

main43410-12211iAE92..SPC199101-199106

sub43410-12212

sub90178-22001

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE9#..CBR,EFI198705-199106

main90520-26037iAE92..SPC198705-199106

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iAE92..5F..EFI198705-199106

main42345-22020iAE92..SPC198705-199106

sub42345-50070

main90949-01078iAE92..4FC;AE91..EFIS198705-199106

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iAE92..5F..EFI198705-199106

sub42345-12160

main90949-01080iAE91;AE92..4FC198705-199106

main90949-01400iAE92..SPC198705-199106

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iAE92..5F..EFI198705-198905

main42345-22020iAE92..SPC198705-199106

sub42345-50070

main90949-01078iAE92..4FC;AE91..EFIS198705-199106

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iAE92..5F..EFI198705-198709

main42346-22020iAE92..SPC198705-199106

main90949-01076iAE91;AE92..4FC198705-199106

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19275iAE91;AE92..4FC198705-199101

sub43460-19276

sub43525-20030

sub90179-22020

main43460-19276iAE91;AE92..4FC199101-199106

sub43460-19277

sub90178-22001

main43460-19285iAE92..5F..EFI198705-198709

sub43460-19286

sub43525-20030

sub90179-22020

main43460-19305iAE92..5F..EFI198709-199101

sub43460-19306

sub43525-20030

sub90179-22020

main43460-19306iAE92..5F..EFI199101-199106

sub43460-19309

sub90178-22001

main43460-19355iAE92..5F..EFI198905-199101

sub43460-19356

sub43525-20030

sub90179-22020

main43460-19356iAE92..5F..EFI199101-199106

sub43460-19357

sub90178-22001

main43460-19365iAE92..4FC;AE91..EFIS198905-199101

sub43460-19366

sub43525-20030

sub90179-22020

main43460-19366iAE92..4FC;AE91..EFIS199101-199106

sub43460-19367

sub90178-22001

main43470-19255iAE92..SPC198705-199101

sub43470-19256

sub43525-20030

sub90179-22020

main43470-19256iAE92..SPC199101-199106

sub43470-19257

sub90178-22001

main43470-19295iAE92..SPC198905-199101

sub43470-19296

sub43525-20030

sub90179-22020

main43470-19296iAE92..SPC199101-199106

sub43470-19297

sub90178-22001

43474DAMPER, DRIVE SHAFT

main43474-12020iAE9#..CBR,EFI,EFIS198705-199106

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE91;AE92..4FC198705-199106

16 parts on this diagram · 7 diagrams in section
