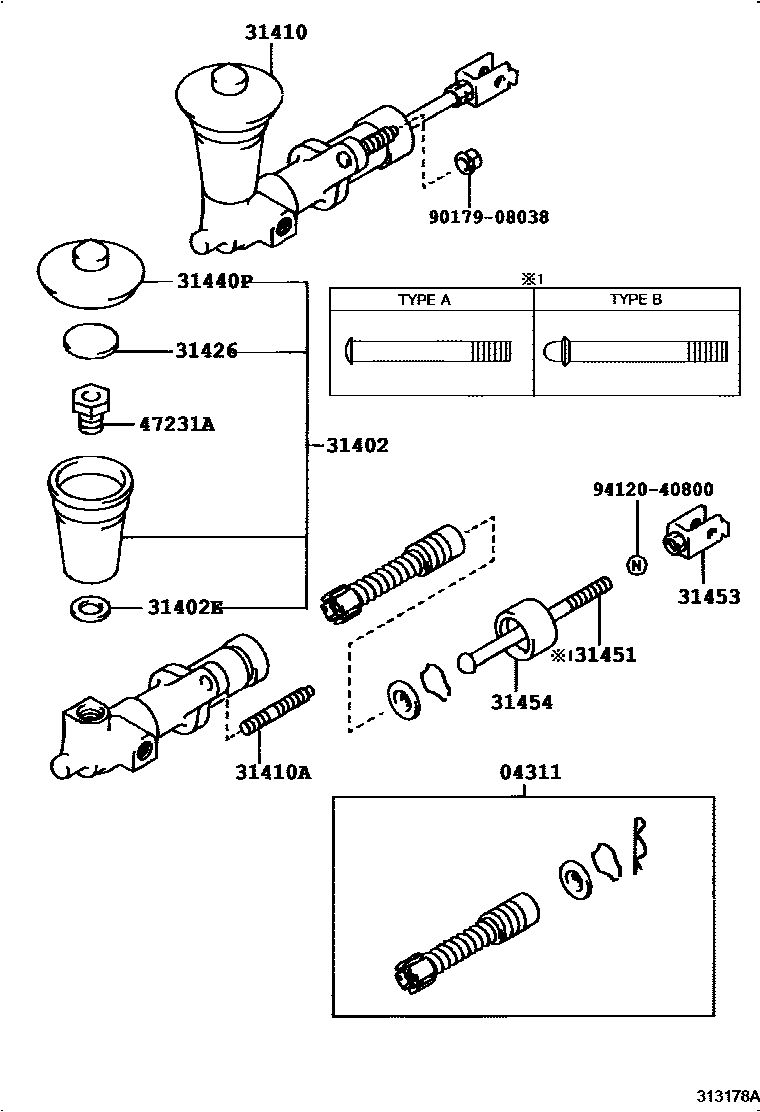

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iAE9#..5F198905-199106

sub04311-12080

main04311-22022iAE9#..5F198705-198806

sub04311-22050

main04311-32030iAE9#..5F198806-198905

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12020iAE9#..5F198705-198905

main31402-12030iAE9#..5F198905-199106

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iAE9#..5F198705-198905

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12190iAE9#..5F198705-198806

sub31410-16023

main31410-12191iAE9#..5F198806-198905

sub31410-16023

main31410-12240iAE91..5F198905-199106

sub31410-12302

main31410-12320iAE92..5F198905-199106

sub31410-12312

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE9#..5F198705-199106

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE9#..5F198705-199106

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE9#..5F198705-199106

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12050iAE9#..5F198806-198905

main31451-30120iAE9#..5F198705-198806

main31451-35070iAE91..5F198905-199106

main31451-35080iAE92..5F198905-199106

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12020iAE92..5F198905-199106

main31453-10020iAE9#..5F198705-199106

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iAE9#..5F198705-199106

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iAE9#..5F198705-198905

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
