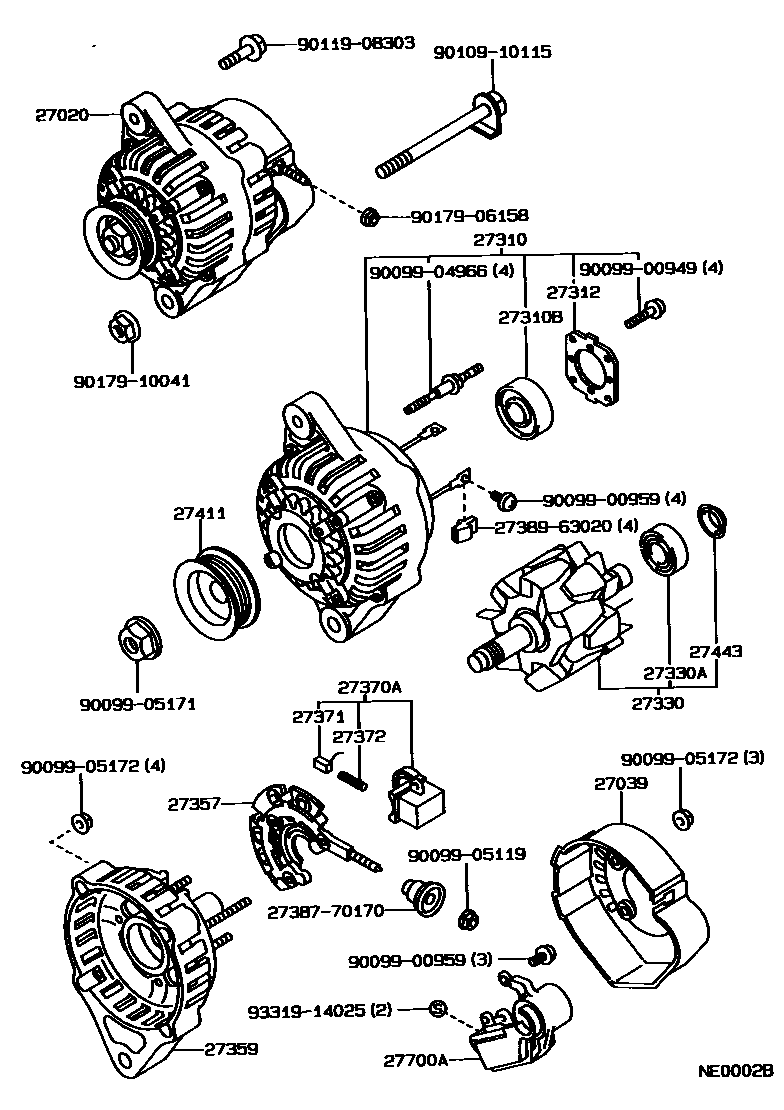

ALTERNATOR

0001 112V 60A,70A 0004 112V 70A,80A 0005 112V 60A,70A 0007 112V 70A 0008 112V 60A

27020ALTERNATOR ASSY

main27060-16122i5AFE..AE91..5F198705-198905

main27060-16131i4AGZE..AE92198705-199106

main27060-16151i4AGE..AE92..5F198705-198908

main27060-16160i5AF..AE91198705-198905

main27060-16170i5AF#..AE91..5F198905-199106

main27060-16180i4AGE..AE92..5F198905-199106

sub27060-16082

main27060-16190i4AGE..AE92..4FC198803-198805

sub27060-16200

main27060-16230i5AFE,5AFHE..AE91..4FC..(XI,XS)198805-199106

main27060-16240i4AGE..AE92..4FC198805-199106

main27060-16260i5AFE..AE91..ATM198905-199106

27039COVER, ALTERNATOR REAR END

main27039-42010i4AGE,5AFHE,5AFE..AE9#..ATM198805-199106

sub27039-16310

main27039-72010i4AG#,5AF#..AE9#198705-199106

sub27039-15170

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16102i4AGE..AE92..4FC198803-198909

sub27310-16103

main27310-16103i4AGE..AE92..5F198909-199106

main27310-16151i5AFE..AE91198705-198905

main27310-16161i4AGZE..AE92198705-199106

main27310-16181i4AGE..AE92..5F198705-198905

main27310-16190i5AF#..AE91..5F198705-199106

main27310-16260i5AFE,5AFHE..AE91..ATM198805-199106

main27310-16270i4AGE..AE92..4FC198805-199106

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i4AGE,5AFE..AE9#..ATM198805-199106

sub90099-10219

main90099-10178i4AGE,5AFHE,5AFE..AE9#..5F198705-199106

main90099-10179i4AGZE..AE92198705-199106

main90099-10192i5AFHE..AE91..4FC199105-199106

27312PLATE, RETAINER

main27312-42010i4AGE,5AFHE,5AFE..AE9#..ATM198805-199106

main27312-70200i4AGE,5AF#..AE9#198705-199106

main27312-72100i4AGZE..AE92198705-199106

27330ROTOR ASSY, ALTERNATOR

main27330-16161i4AGZE..AE92198705-199106

main27330-42010i4AGE,5AFHE,5AFE..AE9#..ATM198805-199012

sub27330-76030

main27330-72100i4AGE,5AFE..AE9#198705-198709

sub27330-72101

main27330-72101i5AF..AE91;4AGE,5AFE..AE9#..5F198705-199106

main27330-76030i4AGE,5AF#..AE9#..ATM199012-199106

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AG#,5AF#..AE9#198705-199106

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16160i4AGZE..AE92198705-199106

main27357-42010i5AFE..AE91..ATM198905-199106

sub27357-50040

main27357-63020i4AGE,5AFE..AE9#198705-199106

main27357-63060i5AF..AE91198705-198905

main27357-74050i4AGE,5AFHE,5AFE..AE9#..4FC..(GT,GTAPX,GTV,XI,XS)198805-199106

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16151i5AFE,5AFHE..AE91..5F198705-199106

sub27359-16152

sub27384-16380

main27359-16180i4AG#..AE92198705-199106

sub27359-16181

sub27384-16380

main27359-16260i5AFE,5AFHE..AE91..ATM198805-199106

sub27359-64500

main27359-16270i4AGE..AE92..4FC198805-199106

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4AGE..AE92198705-199106

sub27370-54450

main27370-35060i4AGZE..AE92198705-199106

main27370-42010i4AGE,5AFHE,5AFE..AE9#..ATM198805-199106

sub27370-75060

main27370-63021i5AF..AE91..ATM198705-199105

sub27370-70300

main27370-70300i5AF#..AE91..5F199105-199106

sub27370-35060

main27370-75060i5AFHE..AE91..4FC199105-199106

27371BRUSH, ALTERNATOR

main27371-63020i4AG#,5AF#..AE9#198705-199106

sub27371-70300

main27371-70300i5AF#..AE91..5F199105-199106

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AG#,5AF#..AE9#..5F198905-199106

sub27372-87501

main27372-72100i4AG#,5AF#..AE9#198705-198905

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-16012i4AGZE..AE92198705-199106

main27411-16180i4AGE,5AFHE,5AFE..AE9#..5F198705-199106

main27411-16190i5AF..AE91198705-198808

sub27411-16191

main27411-16191i5AF..AE91198808-198905

main27411-16210i4AGE..AE92..4FC198803-198805

sub27411-16211

main27411-16260i5AFHE..AE91..4FC199012-199106

sub27411-16270

main27411-16270i4AGE..AE92..4FC198805-199106

main27411-74070i5AFE..AE91..ATM198905-199106

27443COVER, ALTERNATOR BEARING

main27443-63020i4AG#,5AF#..AE9#198705-199106

27700AREGULATOR ASSY, GENERATOR

main27700-16010i4AGE..AE92..5F198705-199106

sub27700-66020

main27700-63021i4AGZE..AE92198705-199106

sub27700-70030

main27700-70030i5AF#..AE91198803-199106

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910115

main90109-10115

9011908303

main90119-08303

9017906158

main90179-06158

9017910041

main90179-10041

9331914025

main93319-14025

28 parts on this diagram · 5 diagrams in section
