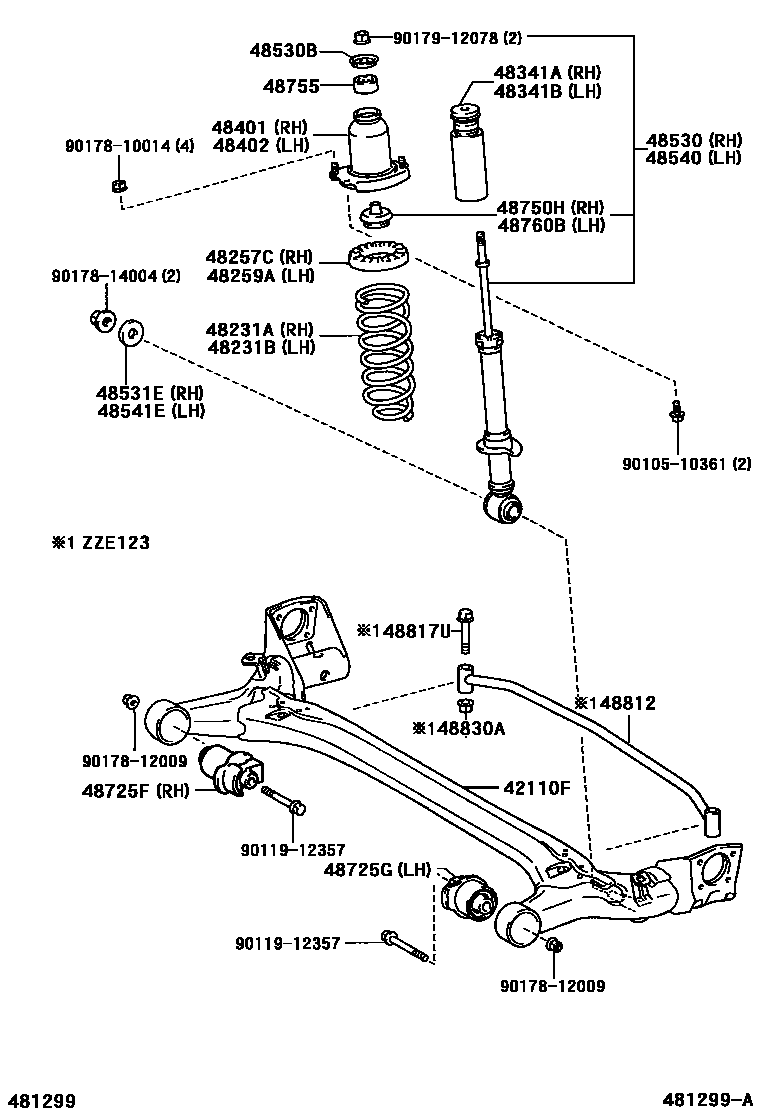

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
�}�[�N�@�S�W�T�R�O�|�P�`�S�P�O
�}�[�N�@�S�W�T�R�O�|�P�`�S�W�O
�}�[�N�@�S�W�T�R�O�|�P�`�S�X�O
�}�[�N�@�S�W�T�R�O�|�P�`�U�U�O
�}�[�N�@�S�W�T�R�O�|�P�`�U�W�O
�}�[�N�@�S�W�T�R�O�|�P�`�U�W�O
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
�}�[�N�@�S�W�T�R�O�|�P�`�S�P�O
�}�[�N�@�S�W�T�R�O�|�P�`�S�W�O
�}�[�N�@�S�W�T�R�O�|�P�`�S�X�O
�}�[�N�@�S�W�T�R�O�|�P�`�U�U�O
�}�[�N�@�S�W�T�R�O�|�P�`�U�W�O
�}�[�N�@�S�W�T�R�O�|�P�`�U�W�O
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48725BUSH, LOWER CONTROL ARM
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48817UBOLT(FOR REAR STABILIZER)
48830ANUT(FOR REAR STABILIZER LINK)
9010510361
9011912357
9017810014
9017812009
9017814004
9017912078
29 parts on this diagram · 5 diagrams in section
