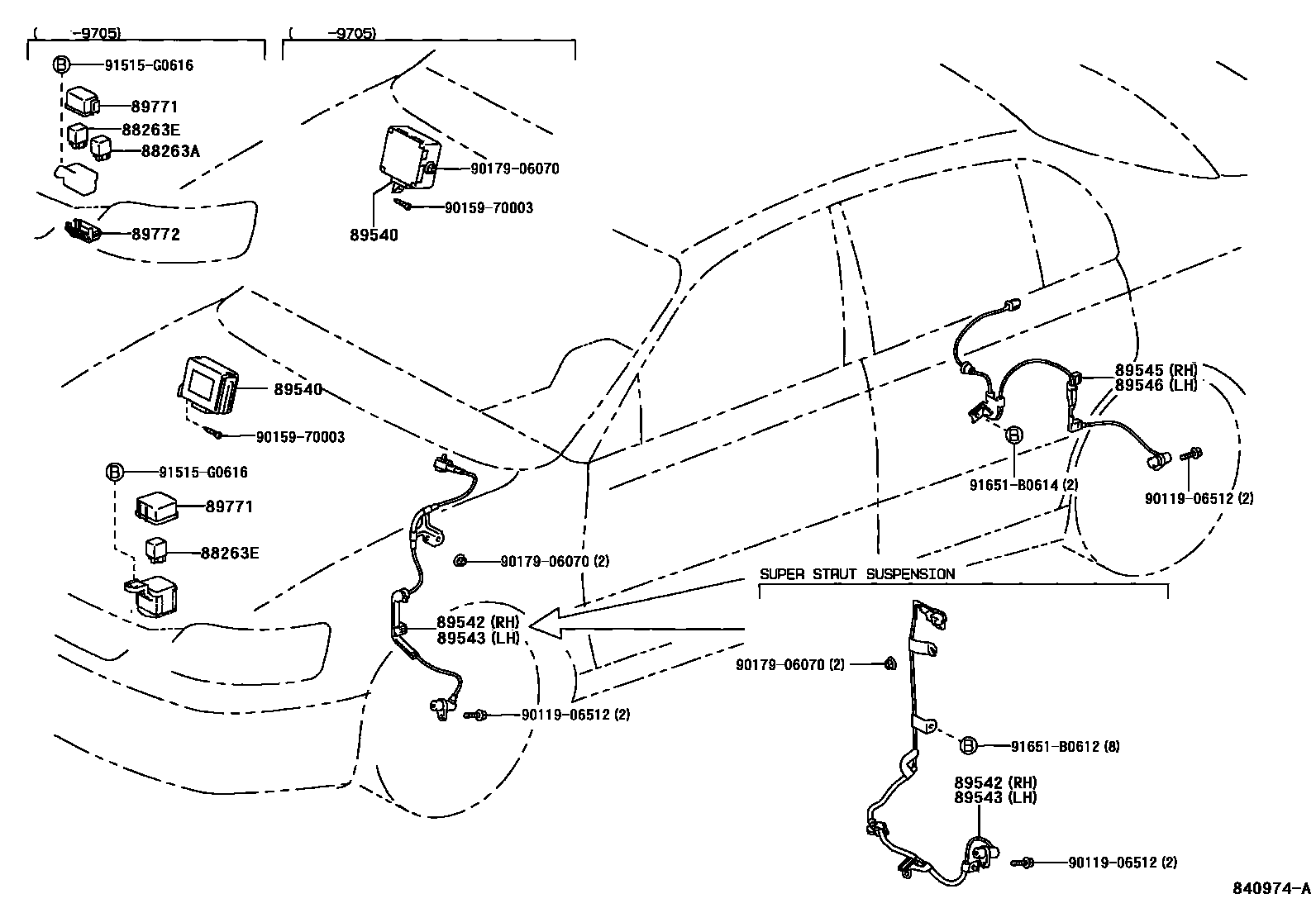

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-14110iAE11#199505-199605

88263ERELAY, SKID CONTROL NO.2

main88263-24030iAE11#199505-200008

89540COMPUTER ASSY, SKID CONTROL

main89540-12200iAE11#..BZG,FZ,XZ199505-199605

main89540-12210iAE111..BZG199505-199605

main89540-12320iAE11#199605-199704

sub89540-12390

main89540-12390iAE11#199704-199801

sub89540-12391

main89540-12391iAE11#199801-200008

89542SENSOR, SPEED, FRONT RH

main89542-12040iAE11#..BZG,FZ,XZ199505-200008

main89542-12050iAE111..BZV199505-199704

main89542-12050iAE111..BZR,BZV199704-200008

89543SENSOR, SPEED, FRONT LH

main89543-12040iAE11#..BZG,FZ,XZ199505-200008

main89543-12050iAE111..BZG199505-199704

main89543-12050iAE111..BZR,BZV199704-200008

89545SENSOR, SPEED, REAR RH

main89545-12040iAE11#199505-200008

89546SENSOR, SPEED, REAR LH

main89546-12040iAE11#199505-200008

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iAE11#199505-199704

main89771-13010iAE11#199704-200008

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iAE11#199505-199704

9011906512

main90119-06512

9015970003

main90159-70003

9017906070

main90179-06070

91515G0616

main91515-G0616

91651B0612

main91651-B0612

91651B0614

main91651-B0614

15 parts on this diagram · 1 diagram in section
