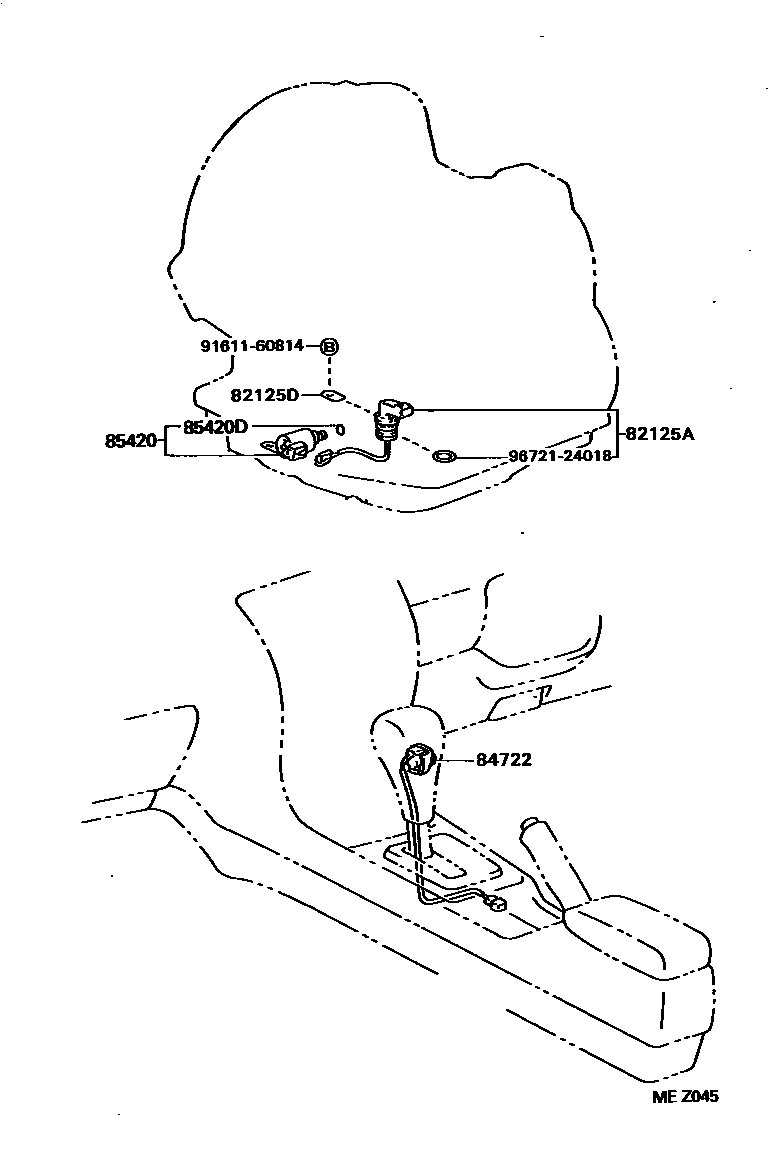

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-12350iAE111..4FC199505-200008

main82125-20170iAE110..4FC199505-199512

main82125-20240iAE110..4FC199512-200008

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iAE110..4FC199505-200008

84722SWITCH, TRANSMISSION CONTROL

main84722-12080-B0iAE11#..4FC199505-199704

SHADOW GRAY,TRIM1#

main84722-12080-C0iAE11#..4FC199704-200008

BLACK,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main85420-10011iAE110..4FC199505-199512

main85420-12100iAE111..4FC199505-199809

sub85420-21010

main85420-12120iAE111..4FC199505-199809

sub85420-21030

main85420-12140iAE111..4FC199505-199809

sub85420-21050

main85420-20180iAE110..4FC199512-200008

main85420-21010iAE111..4FC199809-200008

main85420-21040iAE111..4FC199809-200008

main85420-21060iAE111..4FC199809-200008

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAE110..4FC199505-200008

9161160814

main91611-60814

9672124018

main96721-24018

7 parts on this diagram · 2 diagrams in section
