SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL SWITCH 0005 1COWL 0006 1COMBINATION SWITCH 0007 1COMBINATION SWITCH 0008 1ROOF,FLOOR,DOOR & LUGGAGE

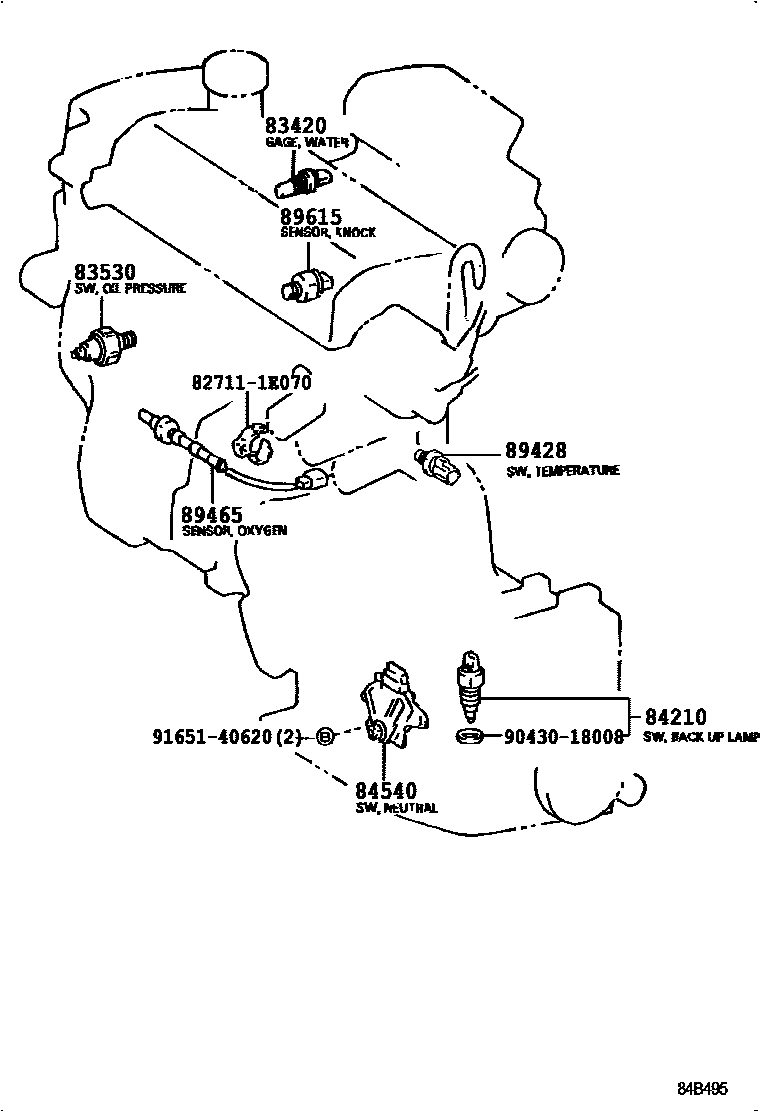

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE111..BZG,BZV199505-199605

main83420-20040iAE11#..FZ,XZ199505-200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAE11#..FZ,XZ199803-200008

main83530-28040iAE111..BZG,BZR,BZV199803-200008

main83530-30080iAE111..BZG,BZR,BZV199505-199803

sub83530-60040

main83530-30090iAE11#..FZ,XZ199505-199803

sub83530-60020

main83530-60020iAE11#..FZ,XZ199803-200008

main83530-60040iAE111..BZG,BZR,BZV199803-200008

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE11#..5F199505-200008

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE111..4FC199505-200008

main84540-12210iAE111..4FC199505-200008

main84540-16050iAE110..4FC199505-200008

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE11#199505-200008

89465SENSOR, OXYGEN

main89465-12280iAE111..XZ199505-199704

main89465-12430iAE110199505-200008

main89465-13020iAE111..XZ199704-200008

main89465-19685iAE111..BZG,BZR,BZV199505-200008

89615SENSOR, KNOCK CONTROL

main89615-12030iAE11#..FZ,XZ199505-199809

sub89615-22050

main89615-22030iAE11#199505-199909

main89615-22040iAE111..BZG,BZV199505-199704

main89615-22050iAE11#199809-200008

sub89615-52010

main89615-52010iAE11#199909-200008

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9043018008

main90430-18008

9165140620

main91651-40620

10 parts on this diagram · 8 diagrams in section
