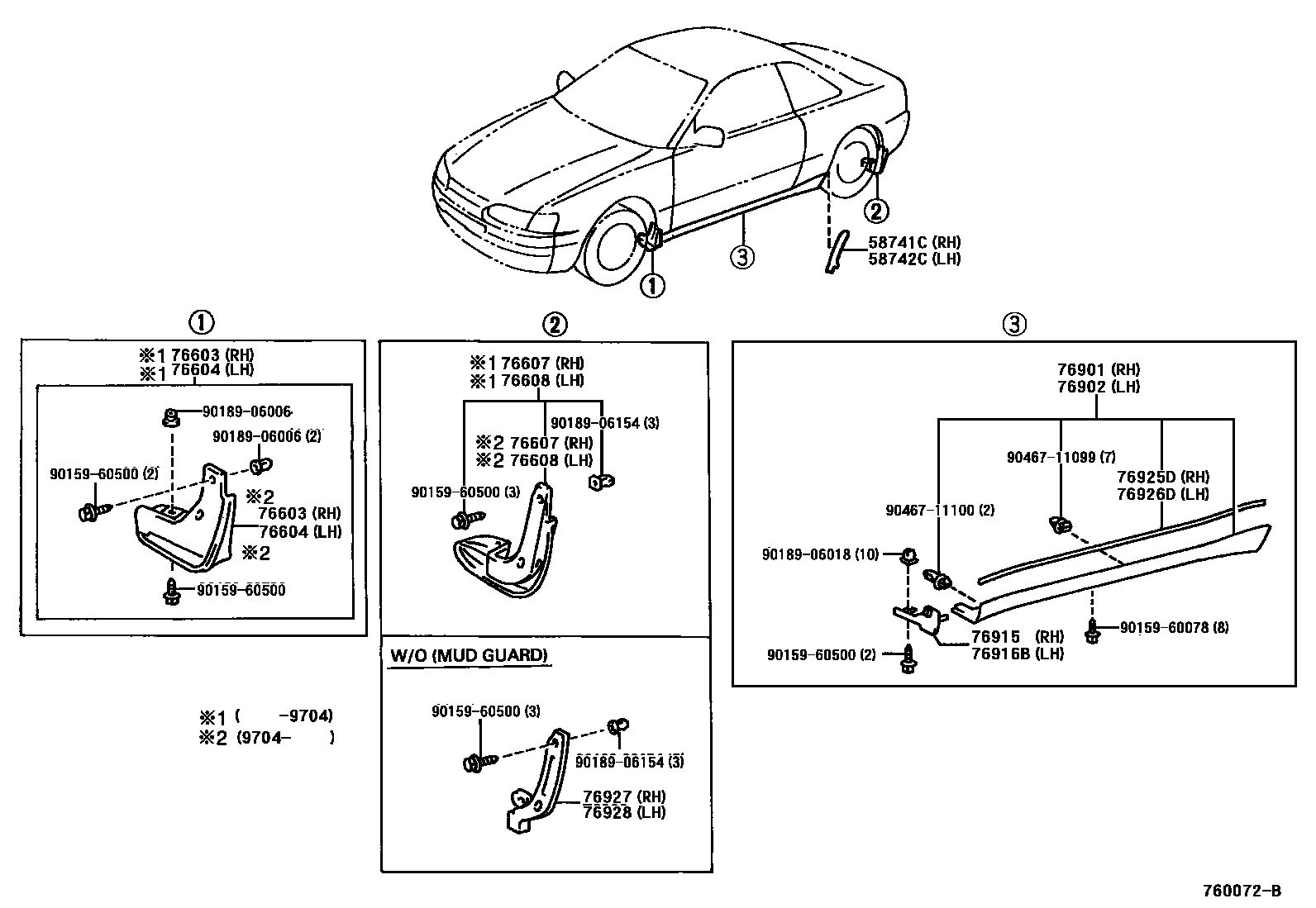

MUDGUARD & SPOILER
58741CPROTECTOR, QUARTER PANEL, RH
58742CPROTECTOR, QUARTER PANEL, LH
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76901MUDGUARD SUB-ASSY, SIDE, RH
SUPER WHITE,040
SILVER ME.,199
BLACK,205
RED MICA ME,3K4
SUPER RED II,3E5
GREEN MICA M.,6P5
STRONG BLUE M.,8B6
76902MUDGUARD SUB-ASSY, SIDE, LH
SUPER WHITE,040
SILVER ME.,199
BLACK,205
RED MICA ME,3K4
SUPER RED II,3E5
GREEN MICA M.,6P5
STRONG BLUE M.,8B6
76915MUDGUARD, REAR DOOR, RH
76916BMUDGUARD, REAR DOOR, LH
76925DPROTECTOR, SIDE MUDGUARD, RH
GRAY,040 ,199
BLACK,205 ,3E5 ,6P5 ,8B6
BLACK,205 ,3K4 ,6P5 ,8B6
76926DPROTECTOR, SIDE MUDGUARD, LH
GRAY,040 ,199
BLACK,205 ,3K4 ,6P5 ,8B6
BLACK,205 ,3E5 ,6P5 ,8B6
76927PROTECTER, REAR MUDGUARD, RH
76928PROTECTER, REAR MUDGUARD, LH
9015960078
main90159-60078
9015960500
main90159-60500
9018906006
main90189-06006
9018906018
main90189-06018
9018906154
main90189-06154
9046711099
main90467-11099
9046711100
main90467-11100
21 parts on this diagram · 2 diagrams in section
