BATTERY CARRIER

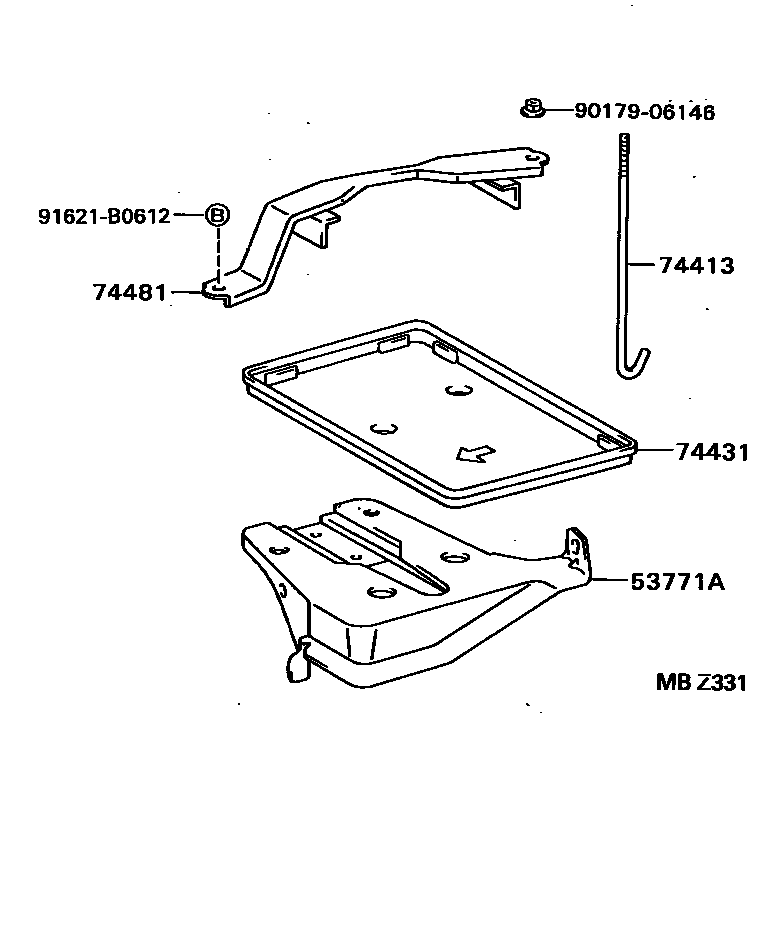

Parts diagram

53771ASUPPORT, BATTERY CARRIER

main53771-12120i199505-199704

main53771-13010i199704-200008

74413BOLT, BATTERY CLAMP

main74451-12061i199505-200008

74431TRAY, BATTERY

main74431-12020i199505-200008

main74431-12060i199704-200008

main74431-12060i199505-200008

74481CLAMP, BATTERY HOLD DOWN

main74404-12290i199505-200008

main74404-12330i199704-200008

main74404-12330i199505-200008

9017906146

main90179-06146

91621B0612

main91621-B0612

6 parts on this diagram · 1 diagram in section
