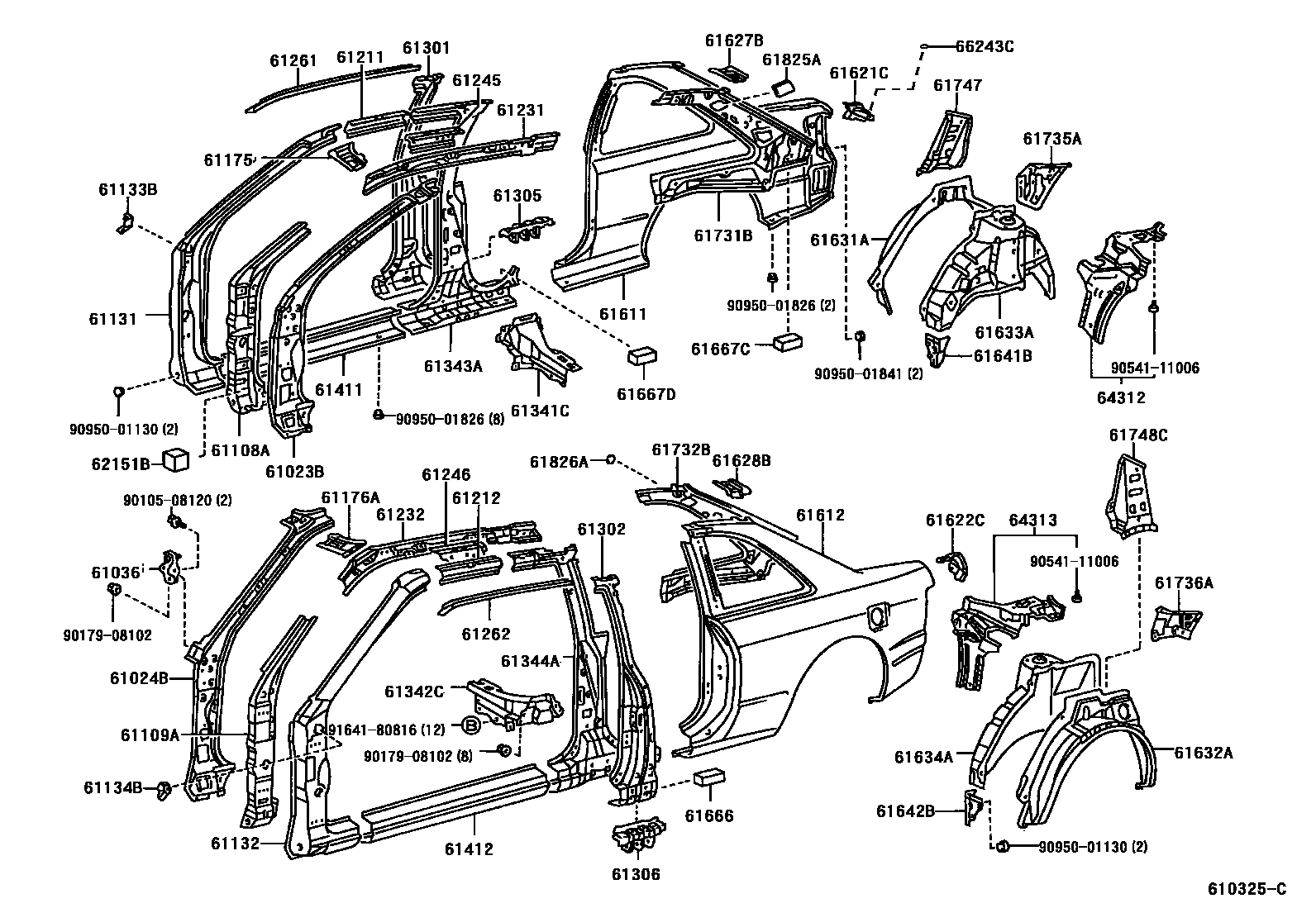

SIDE MEMBER

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-12150iAE11#¥20,800199505-199704

main61023-12270iAE11#¥21,200199704-200008

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-12150iAE11#¥20,800199505-199704

main61024-12270iAE11#¥21,200199704-200008

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12080iAE11#¥2,860199505-200008

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12170iAE11#¥9,200199505-199704

main61108-12220iAE11#¥11,800199704-200008

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12160iAE11#¥9,200199505-199704

main61109-12210iAE11#¥11,800199704-200008

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12460iAE11#¥20,800199505-199704

sub61131-12490¥21,200

main61131-12490iAE11#..BZG,FZ,XZ¥21,200199704-200008

main61131-12520iAE11#..BZG,FZ,XZ¥21,200199704-200008

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12460iAE11#¥20,800199505-199704

sub61132-12500¥21,200

main61132-12500iAE11#..BZG,FZ,XZ¥21,200199704-200008

main61132-12530iAE111..BZR,BZV¥21,200199704-200008

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12260iAE11#¥470199505-200008

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61134-12250iAE11#¥470199505-200008

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-12120iAE11#¥6,600199505-200008

61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH

main61176-12130iAE11#¥6,600199505-200008

61211RAIL, ROOF SIDE, OUTER RH

main61211-12360iAE11#¥2,570199505-199704

sub61211-12400¥3,010

main61211-12400iAE11#¥3,010199704-200008

61212RAIL, ROOF SIDE, OUTER LH

main61212-12360iAE11#¥2,570199505-199704

sub61212-12400¥3,010

main61212-12400iAE11#¥3,010199704-200008

61231RAIL, ROOF SIDE, INNER RH

main61231-1A090iAE11#¥6,200199505-200008

61232RAIL, ROOF SIDE, INNER LH

main61232-12860iAE11#¥6,200199505-200008

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-12030iAE11#¥1,940199704-200008

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-12030iAE11#¥1,940199704-200008

61261CHANNEL, ROOF DRIP, RH

main61261-12140iAE11#¥1,870199505-200008

61262CHANNEL, ROOF DRIP, LH

main61262-12140iAE11#¥1,870199505-200008

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-12260iAE11#¥31,500199505-199704

sub61301-12270¥31,600

main61301-12270iAE11#¥31,600199704-200008

main61301-12280iAE11#¥31,600199704-200008

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-12340iAE11#¥31,500199505-199704

sub61302-12350¥31,600

main61302-12350iAE11#¥31,600199704-200008

main61302-12360iAE11#¥31,600199704-200008

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-12110iAE11#¥4,850199505-200008

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-12110iAE11#¥4,850199505-200008

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61307-12160iAE11#¥20,100199505-199704

sub61307-12190¥20,100

main61307-12190iAE11#¥20,100199704-200008

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61308-12160iAE11#¥20,100199505-199704

sub61308-12190¥20,100

main61308-12190iAE11#¥20,100199704-200008

61343APILLAR, CENTER BODY, INNER RH

main61343-12130iAE11#¥18,700199505-199704

sub61343-12170¥19,000

main61343-12170iAE11#..BZG,FZ,XZ¥19,000199704-200008

main61343-12180iAE111..BZR,BZV¥19,000199704-200008

61344APILLAR, CENTER BODY, INNER LH

main61344-12130iAE11#¥18,700199505-199704

sub61344-12170¥19,000

main61344-12170iAE111..BZR,BZV¥19,000199704-200008

main61344-12180iAE111..BZR,BZV¥19,000199704-200008

61411PANEL, ROCKER, OUTER RH

main61411-12600iAE11#¥18,300199505-199704

sub61411-12630¥18,400

main61411-12630iAE11#..BZG,FZ,XZ¥18,400199704-200008

main61411-12640iAE111..BZR,BZV¥18,400199704-200008

61412PANEL, ROCKER, OUTER LH

main61412-12590iAE11#¥18,300199505-199704

sub61412-12620¥18,400

main61412-12620iAE11#..BZG,FZ,XZ¥18,400199704-200008

main61412-12630iAE111..BZR,BZV¥18,400199704-200008

61611PANEL, QUARTER, RH

main61601-12916iAE11#¥48,100199505-199704

sub61601-12917¥48,100

sub90950-01670¥200

main61601-12917iAE11#¥48,100199704-200008

main61601-12918iAE11#¥48,100199704-200008

61612PANEL, QUARTER, LH

main61602-12924iAE11#¥48,100199505-199704

sub61602-12925¥48,100

sub90950-01670¥200

main61602-12925iAE11#¥48,100199704-200008

main61602-12926iAE11#¥48,100199704-200008

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12420iAE11#¥2,210199505-200008

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12420iAE11#¥2,210199505-200008

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12140iAE11#¥1,240199505-200008

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12150iAE11#¥1,240199505-200008

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12310iAE11#¥11,700199505-200008

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12330iAE11#¥11,700199505-200008

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12921iAE11#¥25,300199505-200008

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12919iAE11#¥25,300199505-200008

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12070iAE11#¥880199704-200008

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12070iAE11#¥880199704-200008

61666SEAL, QUARTER PANEL

main55522-33010iAE11#¥320199505-200008

sub61824-12100¥1,840

61667CSEAL, QAURTER PANEL, NO.1

main61667-12090iAE11#¥1,940199505-200008

main61667-12110iAE11#¥100199704-199903

61667DSEAL, QUARTER PANEL

main61667-12070iAE11#¥550199505-200008

61731BPANEL, ROOF SIDE, INNER RH

main61731-12640iAE11#¥12,100199505-199704

sub61731-12710¥12,100

main61731-12710iAE11#¥12,100199704-200008

61732BPANEL, ROOF SIDE, INNER LH

main61732-12600iAE11#¥12,100199505-199704

sub61732-12670¥12,100

main61732-12670iAE11#¥12,100199704-200008

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12370iAE11#¥2,310199505-200008

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12360iAE11#¥2,310199505-200008

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12270iAE11#¥4,920199505-200008

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12270iAE11#¥4,920199505-200008

61825APLATE, NOISE CONTROL, NO.2

main61815-32020iAE11#¥760199505-200008

61826APLATE, NOISE CONTROL, NO.3

main61824-12040iAE11#¥220199505-200008

62151BPAD, COWL SIDE SILENCER

main62151-12130iAE11#¥1,090199505-200008

64312BRACKET, PACKAGE TRAY, RH

main64301-12903iAE11#¥7,400199505-200008

64313BRACKET, PACKAGE TRAY, LH

main64302-12903iAE11#¥7,400199505-200008

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010iAE11#¥180199505-199812

9010508120

main90105-08120¥90

9017908102

main90179-08102¥160

9054111006

main90541-11006¥110

9095001130

main90950-01130¥390

9095001826

main90950-01826¥110

9095001841

main90950-01841¥110

9164180816

main91641-80816¥90

63 parts on this diagram · 1 diagram in section
