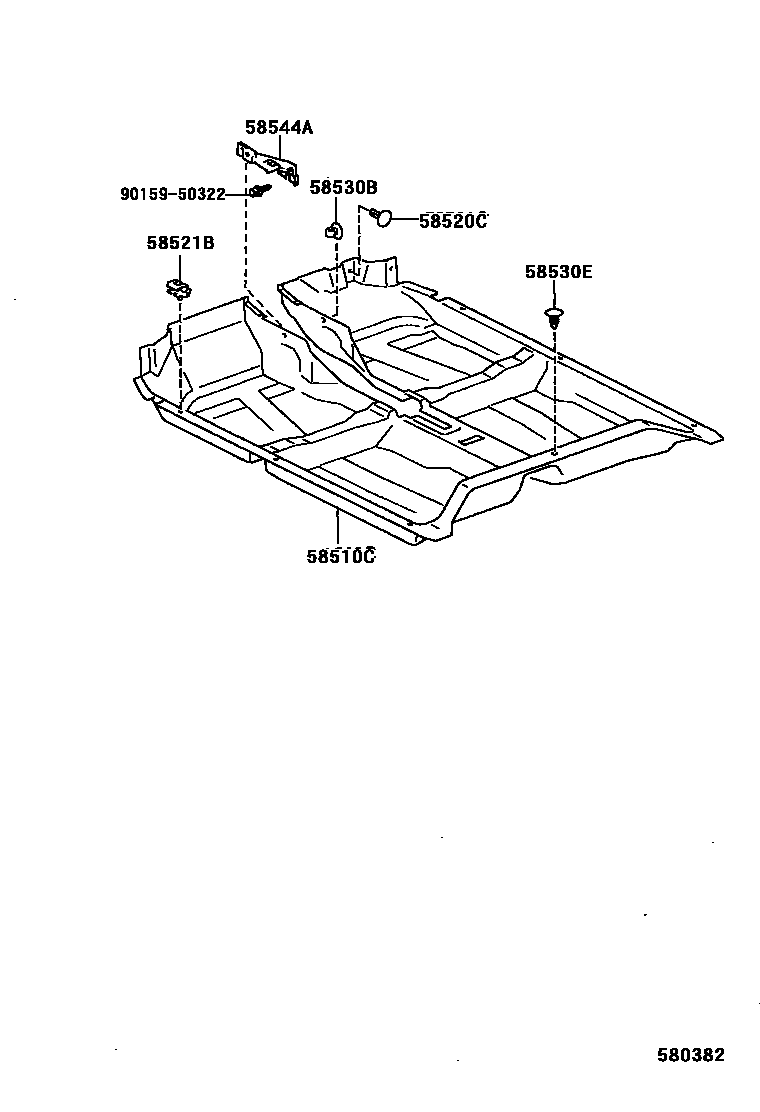

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1E510-B0iAE11#199505-199704

SHADOW GRAY,TRIM1#

main58510-1E520-B0iAE11#199505-199704

main58510-1H110-B0iAE11#..FZ,XZ199704-200008

SHADOW GRAY,TRIM1#

main58510-1H110-C0iAE111..BZG,BZR,BZV199704-200008

BLACK,TRIM1#

main58510-1H120-B0iAE11#..FZ,XZ199704-200008

main58510-1H120-C0iAE111..BZG,BZR,BZV199704-200008

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-22iAE11#199505-200008

BLACK,TRIM1#

sub90467-09068

58521BHOOK, FLOOR CARPET

main58521-12120iAE11#199505-200008

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09118iAE11#199505-200008

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-06023-B0iAE11#199505-199704

SHADOW GRAY,TRIM1#

sub90467-06023

main90467-06023-C0iAE11#199704-200008

BLACK,TRIM1#

sub90467-06023

58544ABRACKET, FLOOR CARPET, LH

main58544-13040iAE11#199704-200008

9015950322

main90159-50322

7 parts on this diagram · 1 diagram in section
